  1. ANSYS Element Test
    1. 案例
      1. Link1 Static analysis of plane trusses (Flag=1)
      2. Link1 Elasto-plastic analysis of plane trusses (Flag=2)
      3. Link1 Two-force bar truss buckling analysis (Flag=3)
      4. Link8 Hexagonal Dome analysis (Flag=4)
      5. Link10 Force analysis of the cable in equilibrium state (Flag=5)
      6. Link10 Rod structure with gaps (Flag=6)
      7. Link180 Rod structure with initial stress (Flag=7)
      8. Beam3 Static analysis of multi-span beams (Flag=8)
      9. Beam3 Semicircular Hingeless Arch (Flag=9)
      10. Beam4 45° curve beam (Flag=10)

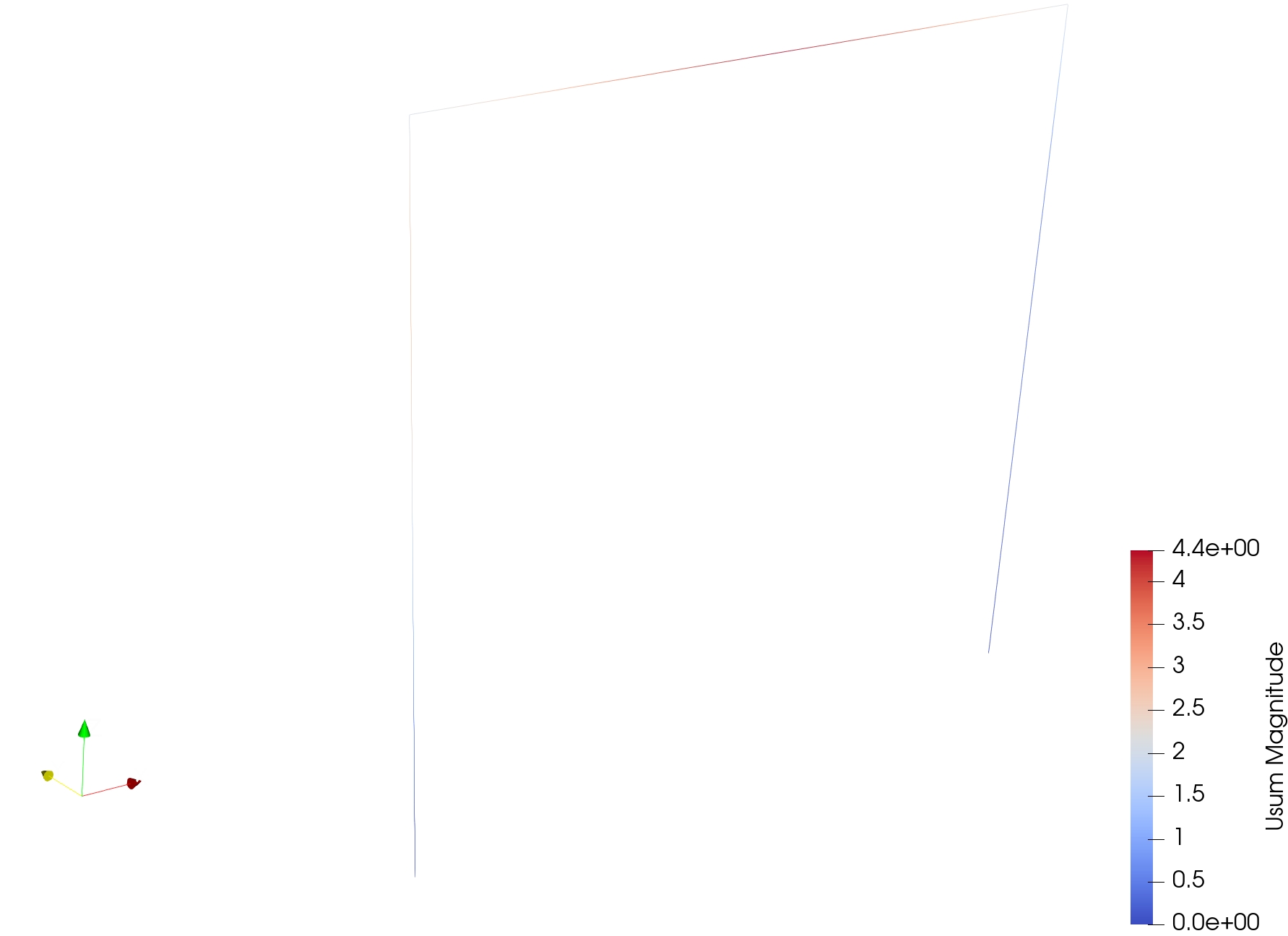

      11. Beam23 Plastic analysis of single-story frame (Flag=11)
      12. Beam24 Cross-section cantilever beam (Flag=12)
      13. Beam24 biaxially symmetrical I-beam rigid frame (Flag=13)

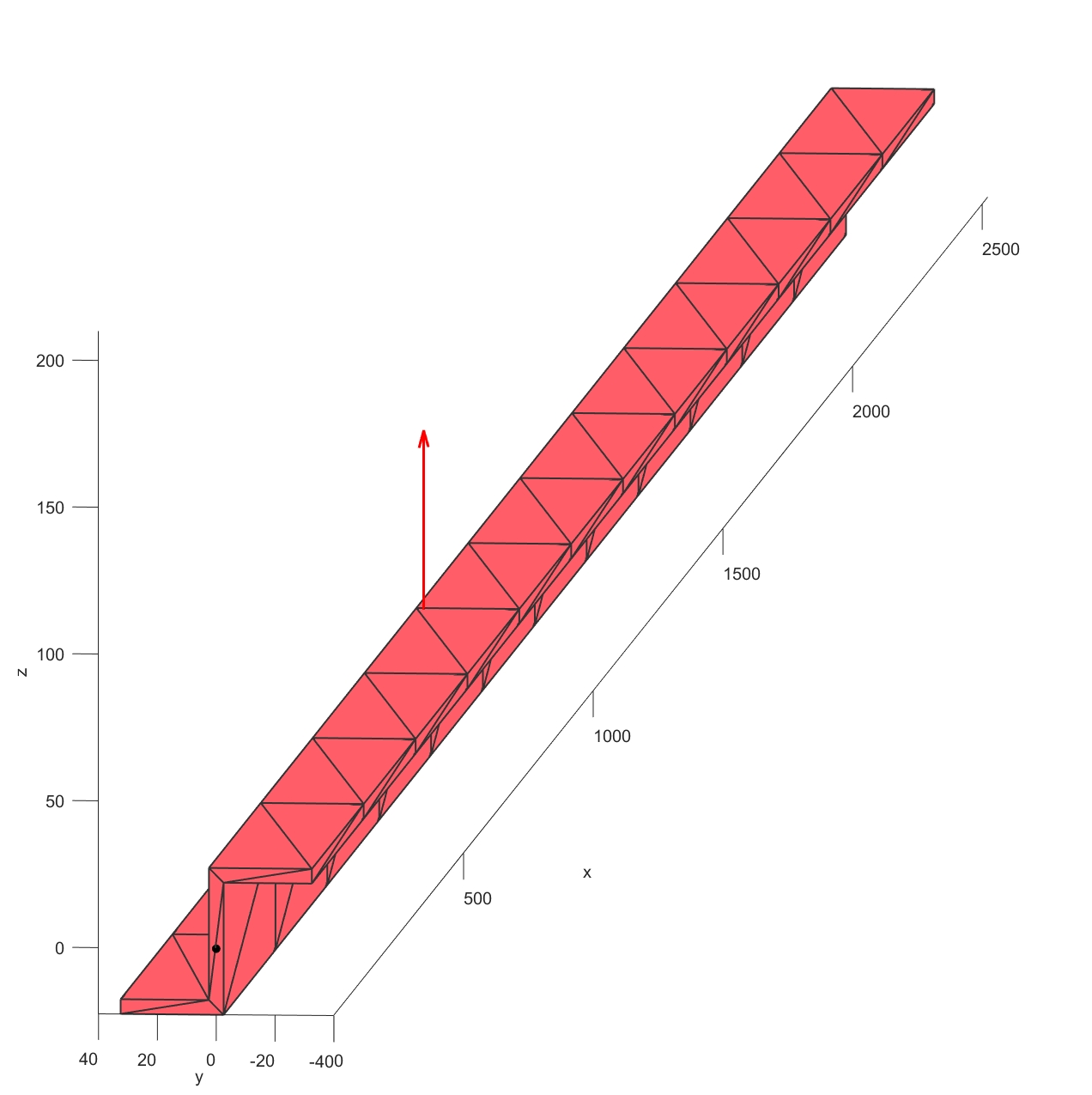

      14. Beam44 Stress analysis of simply supported beam with Z-shaped section (Flag=14)

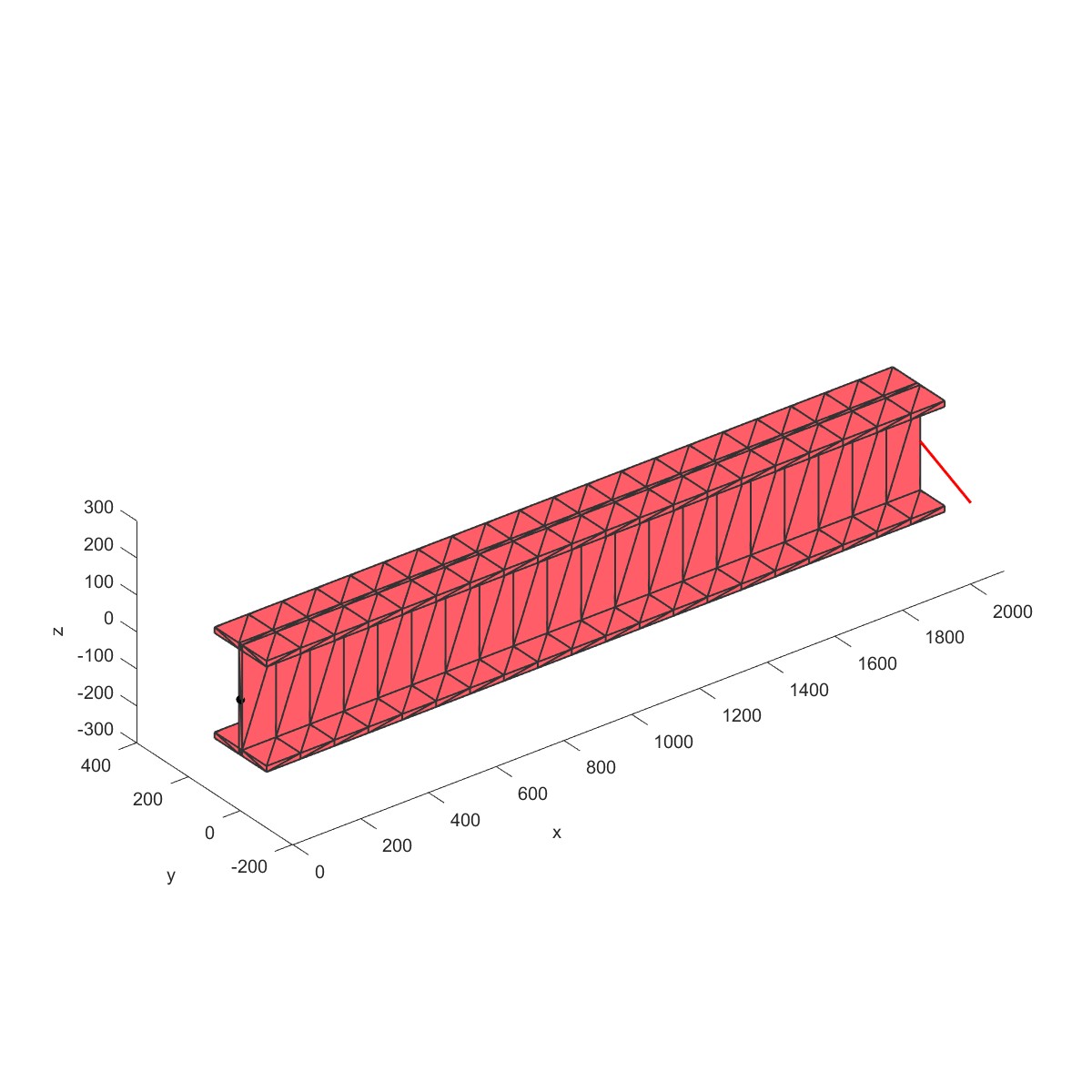

      15. Beam188 I-shaped section cantilever beam (Flag=16)
      16. Pipe16 Static calculation of cantilever tube (Flag=17)
      17. Pipe20 Steel pipe plastic analysis (Flag=18)
      18. Plane42 Variable section beam (Flag=19)

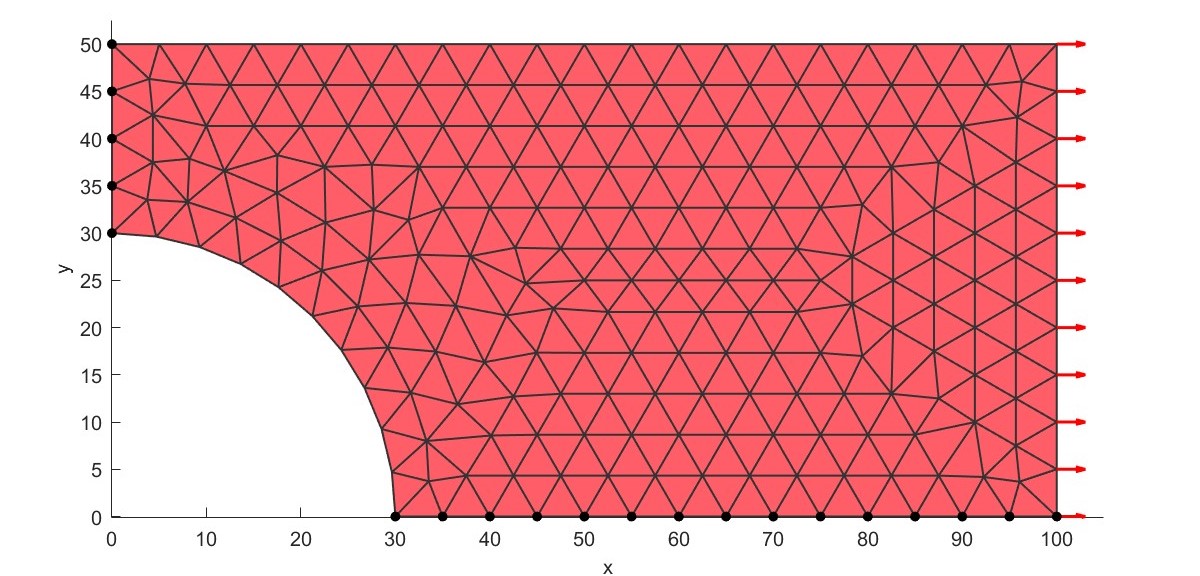

      19. Plane42 Plate with hole (Flag=20)
      20. Plane82 Flat bar with shoulder fillets (Flag=21)
      21. Plane182 Variable section beam (Flag=22)
      22. Plane183 Flat bar with shoulder fillets (Flag=23)
      23. Solid45 Variable solid beam (Flag=24)
      24. Solid95 Rotating part (Flag=25)
      25. Solid185 Ellipse beam (Flag=26)
      26. Solid186 Variable solid beam (Flag=27)
      27. Solid187 Cylinder Beam (Flag=28)
      28. Shell63 Plate under pressure (Flag=29)
      29. Shell93 Cylindrical shell (Flag=30)
      30. Shell181 Shell section (Flag=31)
      31. Shell281 Shell section (Flag=32)

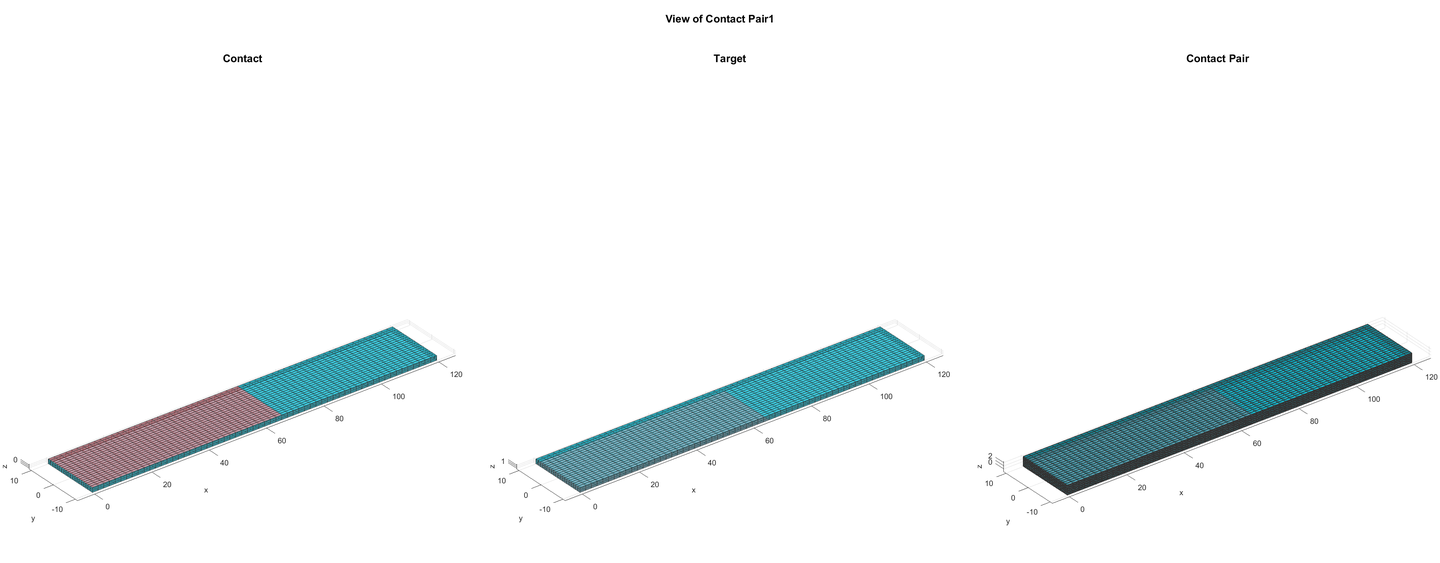

      32. Con173 Glue contact (Flag=33)
    2. 参考文献

ANSYS Element Test

案例

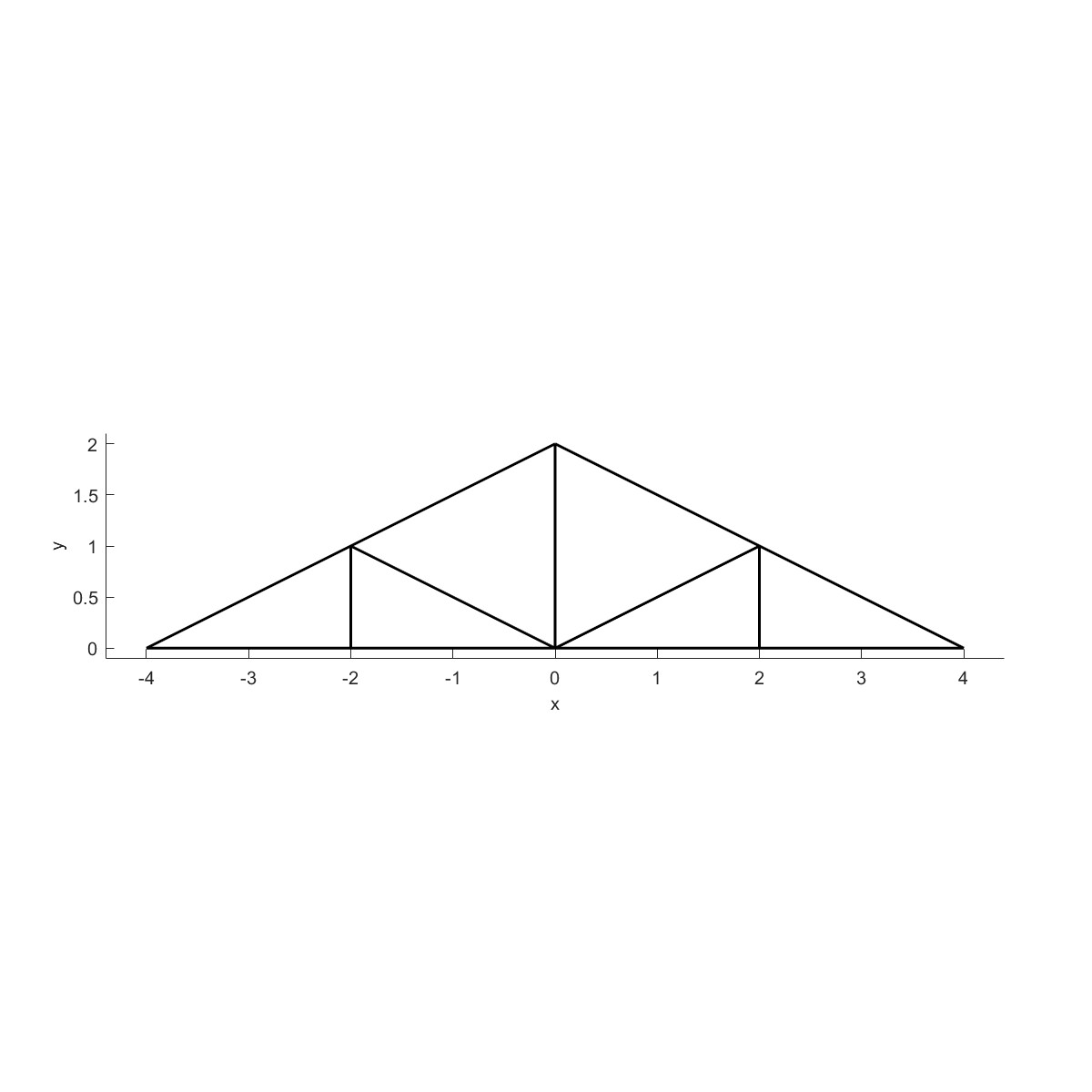

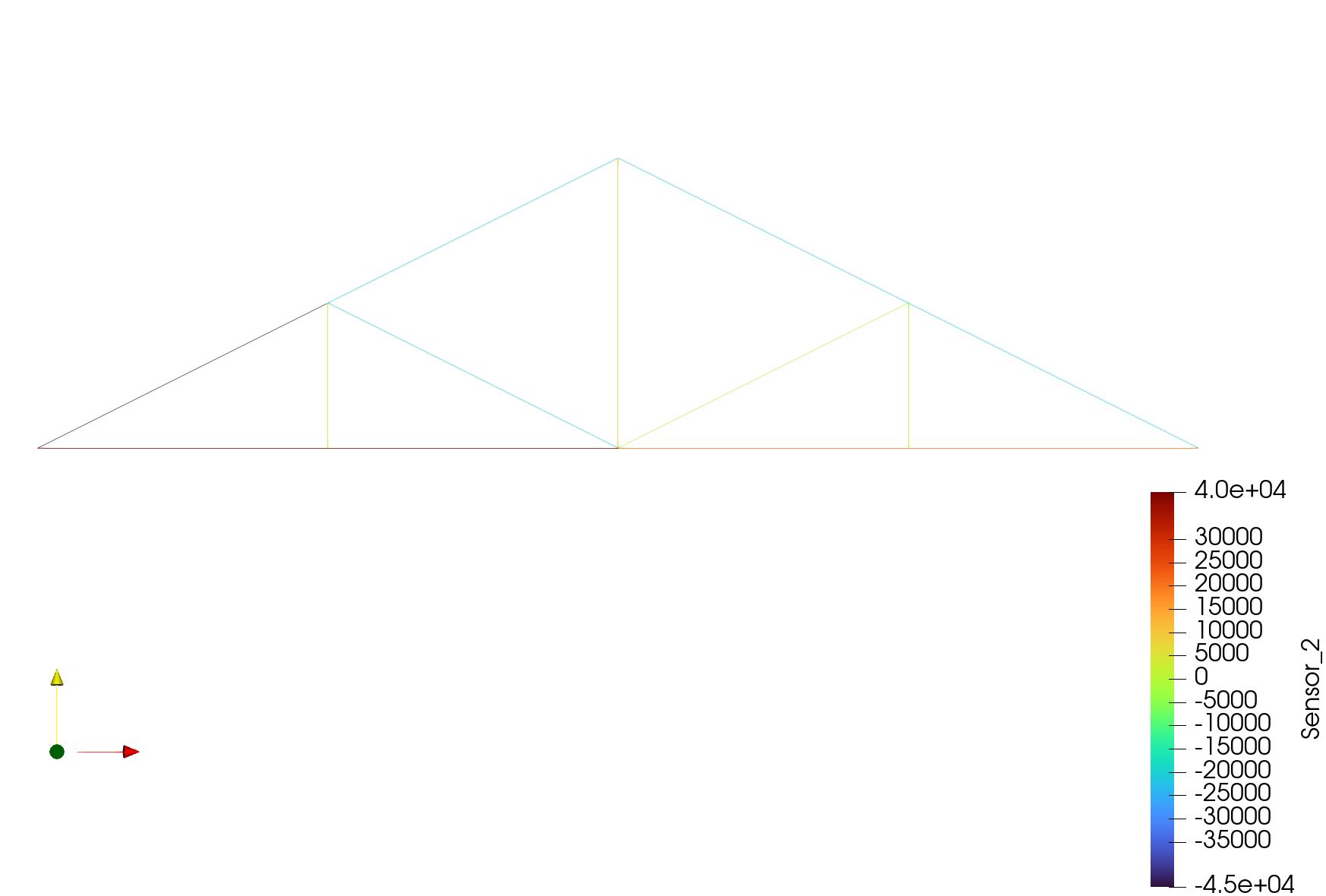

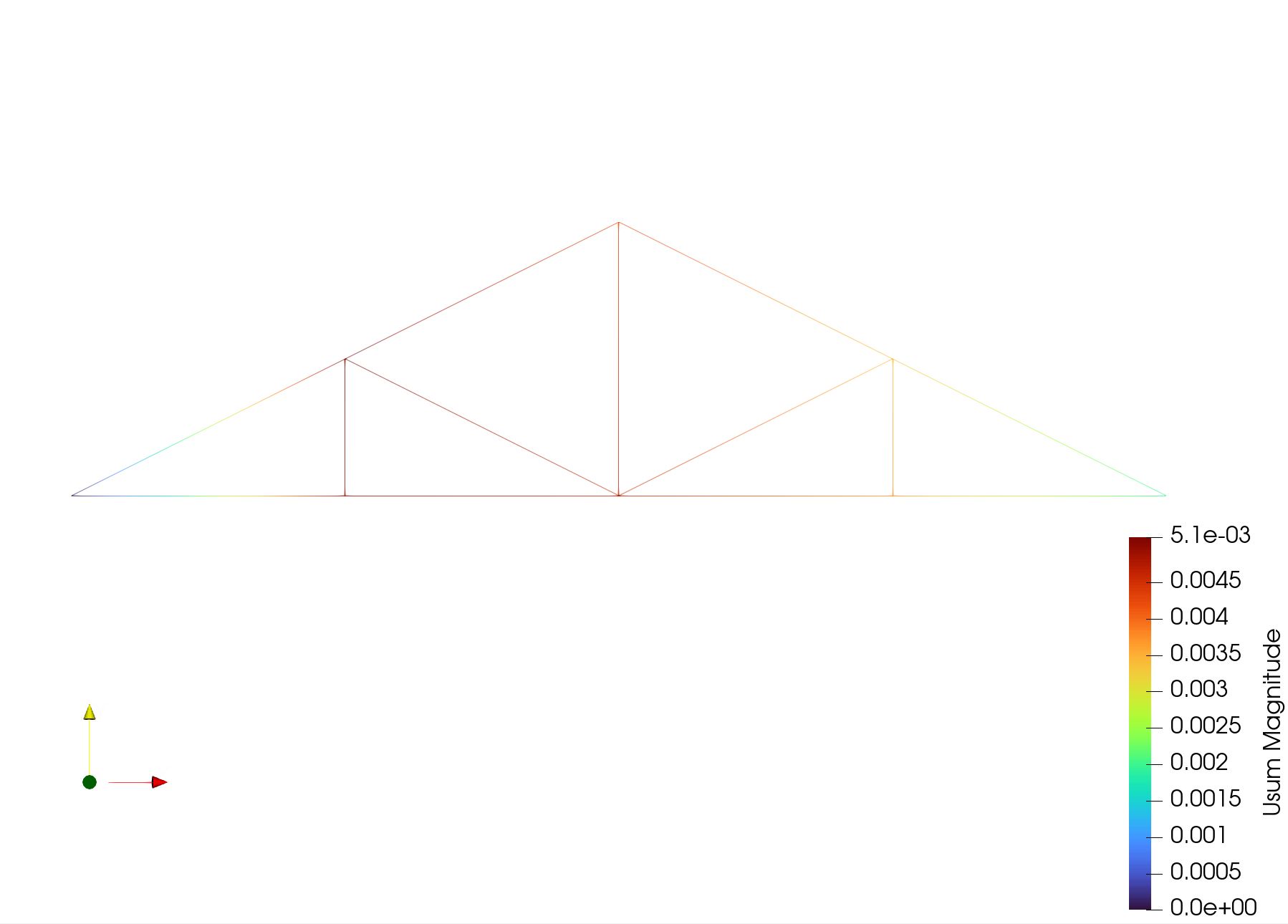

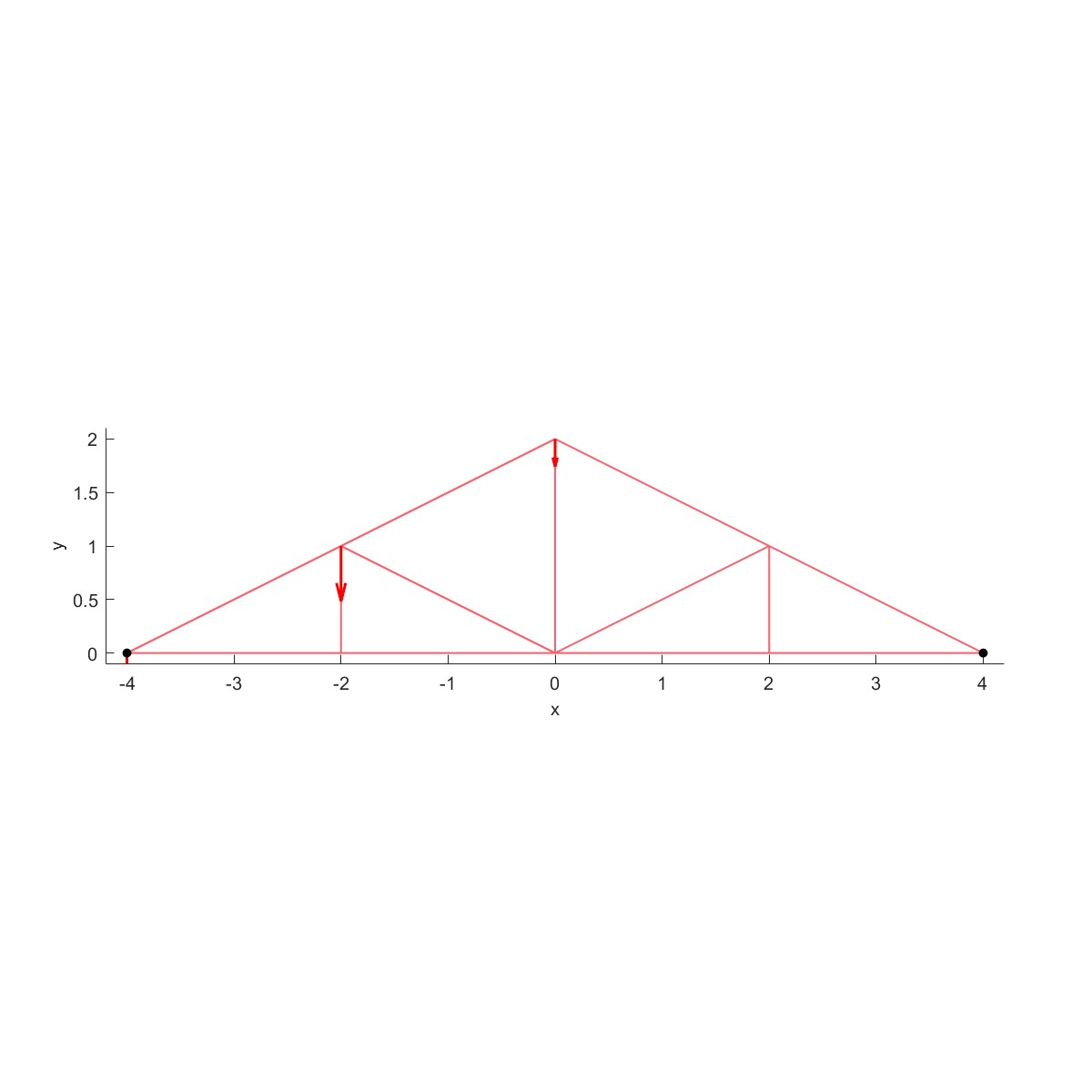

Link1 Static analysis of plane trusses (Flag=1)

% Create geometry
a=Point2D('Point');
a=AddPoint(a,[-4;-2],[0;0]);
a=AddPoint(a,[-2;0],[0;0]);
a=AddPoint(a,[0;2],[0;0]);
a=AddPoint(a,[2;4],[0;0]);
a=AddPoint(a,[-4;-2],[0;1]);
a=AddPoint(a,[-2;-2],[0;1]);
a=AddPoint(a,[-2;0],[1;0]);
a=AddPoint(a,[0;2],[0;1]);
a=AddPoint(a,[2;2],[0;1]);
a=AddPoint(a,[2;4],[1;0]);
a=AddPoint(a,[-2;0],[1;2]);
a=AddPoint(a,[2;0],[1;2]);
a=AddPoint(a,[0;0],[2;0]);
b=Line2D('Plane Truss');
for i=1:13
  b=AddLine(b,a,i);
end
Plot(b,'equal',1);
b=Meshoutput(b);
% Add assembly
Ass=Assembly('Plane_Truss1');
pos=[0,0,0,0,0,0];
Ass=AddPart(Ass,b.Meshoutput,'position',pos);
% Load
Ass=AddLoad(Ass,1,'No',1);
Ass=AddLoad(Ass,1,'No',6);
Ass=AddLoad(Ass,1,'No',8);
Load1=[0,-1e4,0,0,0,0];
Load2=[0,-2e4,0,0,0,0];
Ass=SetLoad(Ass,1,Load1);
Ass=SetLoad(Ass,2,Load2);
Ass=SetLoad(Ass,3,Load1);
% Boundary
Ass=AddBoundary(Ass,1,'No',1);
Ass=AddBoundary(Ass,1,'No',5);
Bound1=[1,1,0,0,0,0];
Bound2=[0,1,0,0,0,0];
Ass=SetBoundaryType(Ass,1,Bound1);
Ass=SetBoundaryType(Ass,2,Bound2);
% Material
mat.Name='Wood';
mat.table=["EX",8500;"PRXY",0.2];
Ass=AddMaterial(Ass,mat);
Ass=SetMaterial(Ass,1,1);
% Element type
ET.name='1';
ET.opt=[];
ET.R=14400;
Ass=AddET(Ass,ET);
Ass=SetET(Ass,1,1);
Plot(Ass,'View',[0,90],...
            'boundary',1,...
            'load',1,...
            'load_scale',0.2);
% Static analysis
opt.ANTYPE=0;
Ass=AddSolu(Ass,opt);
% Add sensor
Ass=AddSensor(Ass,'U',1);
Ass=AddSensor(Ass,'Etable','SMISC',...
  'TableNum',1,...
  'Part',1);
% Output to ANSYS
ANSYS_Output(Ass);
if Cal
  ANSYSSolve(Ass);
  PlotSensor(Ass,1);
  PlotSensor(Ass,2);
end

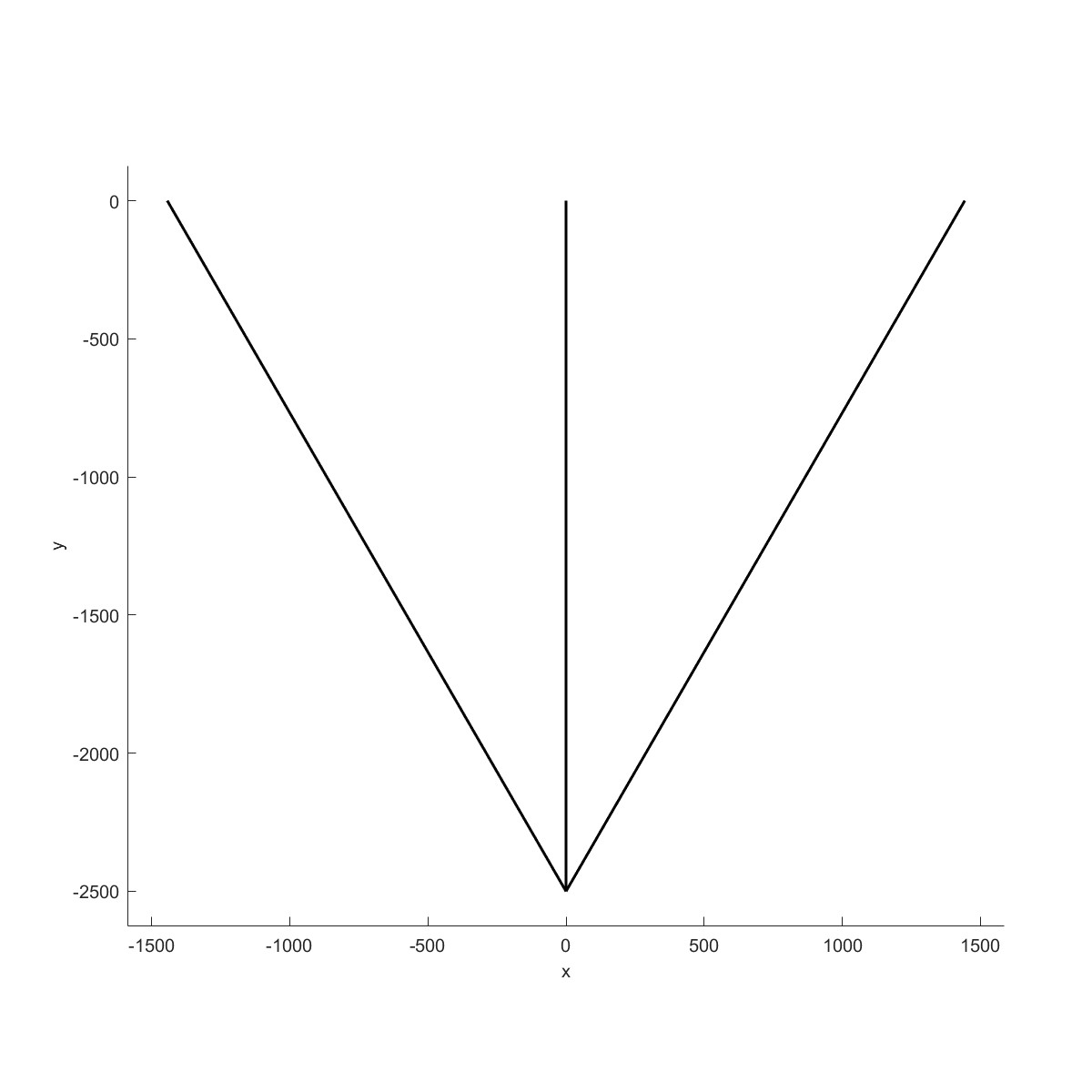

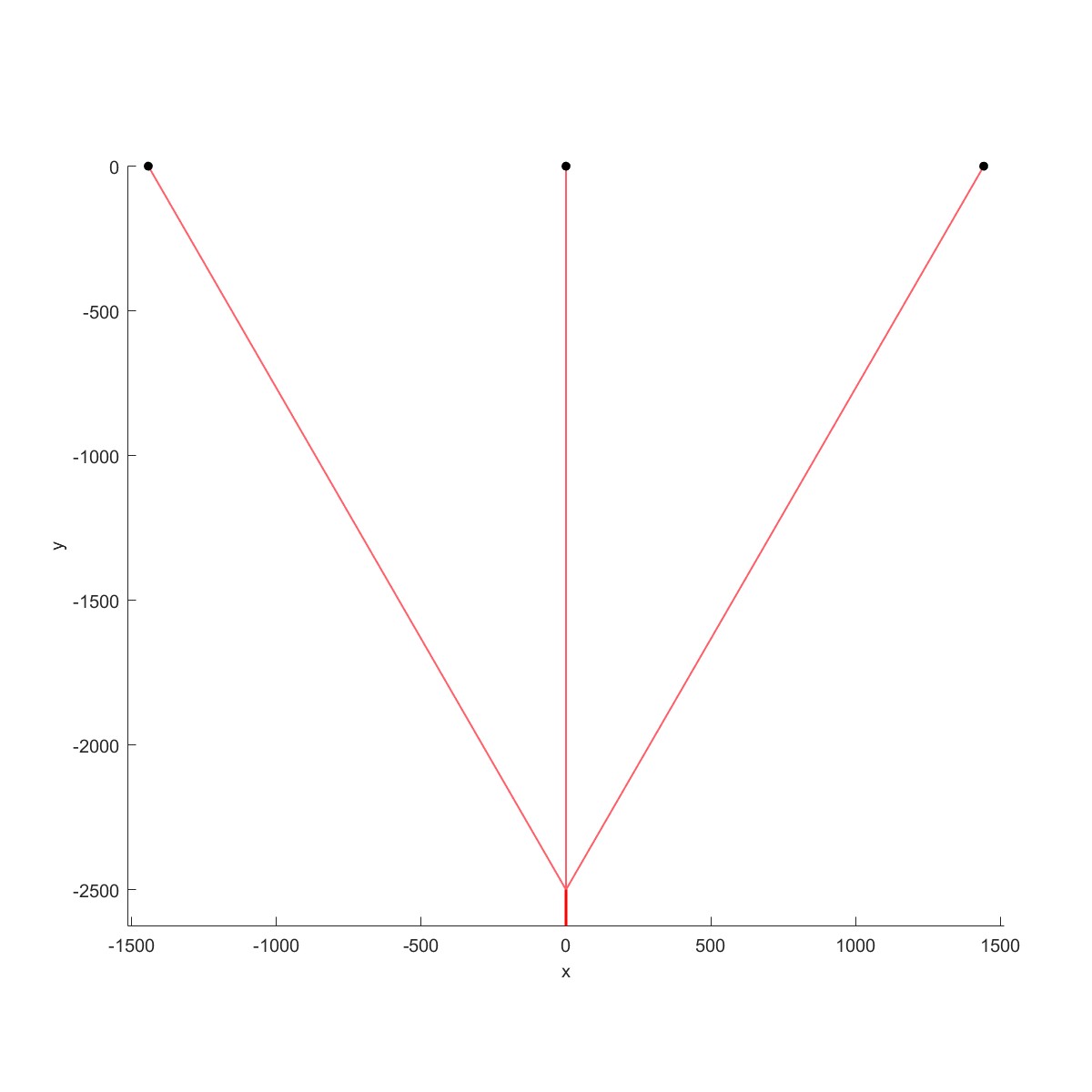

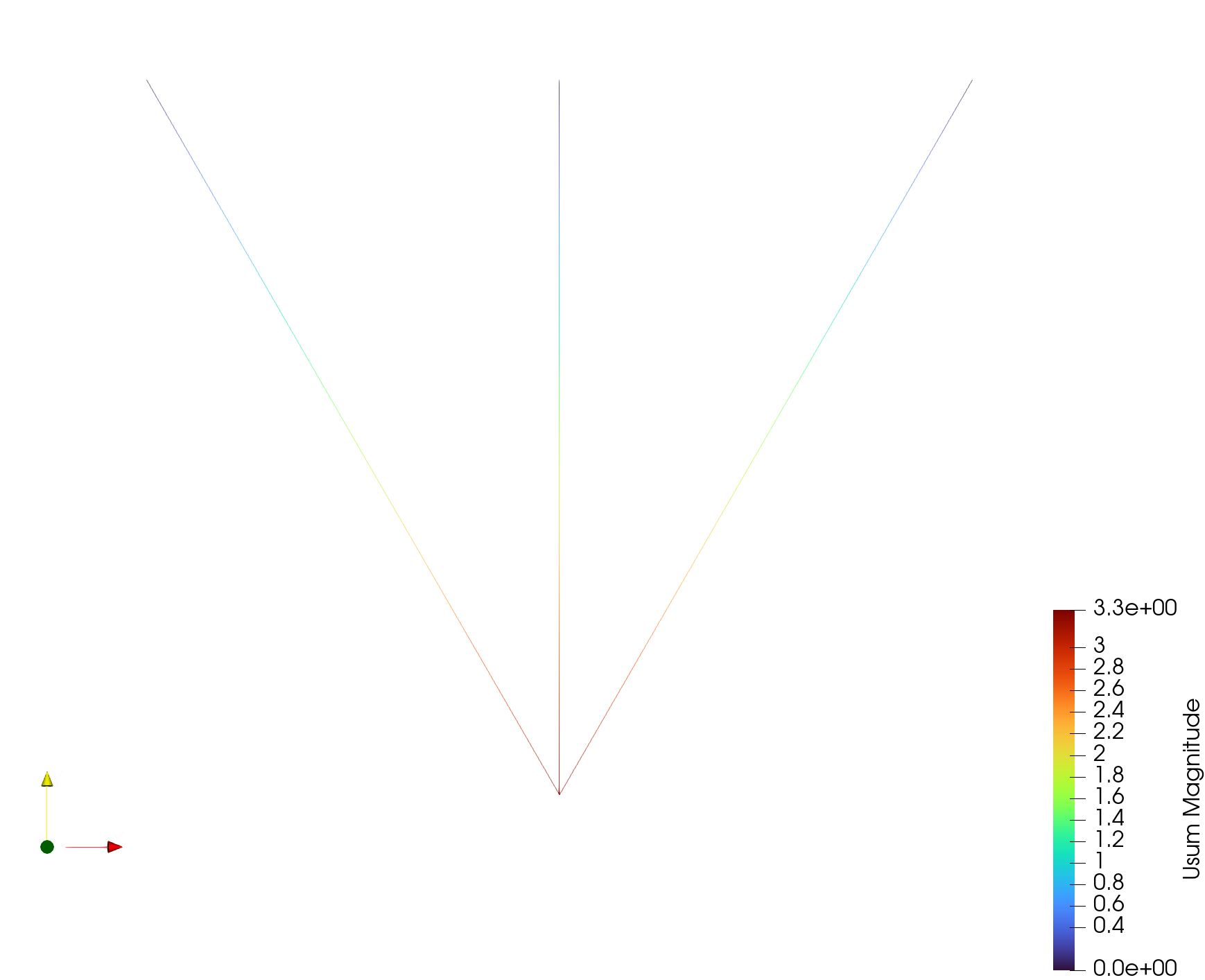

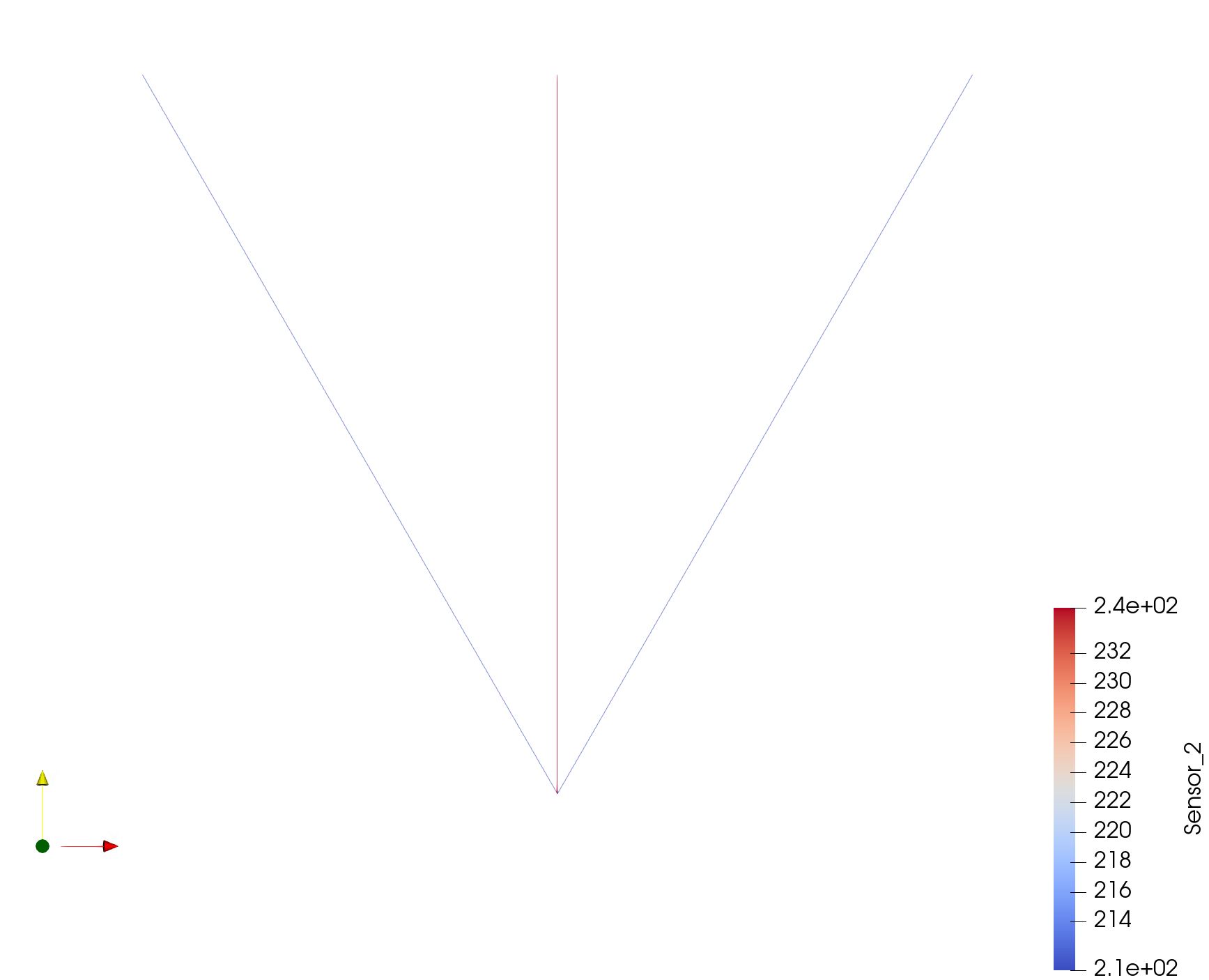

Link1 Elasto-plastic analysis of plane trusses (Flag=2)

% Create geometry
a=Point2D('Point');
a=AddPoint(a,[-2500*tan(pi/6);0],[0;-2500]);
a=AddPoint(a,[0;0],[0;-2500]);
a=AddPoint(a,[2500*tan(pi/6);0],[0;-2500]);
b=Line2D('Plane Truss');
for i=1:3
  b=AddLine(b,a,i);
end
Plot(b,'equal',1);
b=Meshoutput(b);
% Add assembly
Ass=Assembly('Plane_Truss2');
pos=[0,0,0,0,0,0];
Ass=AddPart(Ass,b.Meshoutput,'position',pos);
% Load
Ass=AddLoad(Ass,1,'No',2);
Load1=[0,-3e4,0,0,0,0];
Ass=SetLoad(Ass,1,Load1);
% Boundary
Ass=AddBoundary(Ass,1,'No',1);
Ass=AddBoundary(Ass,1,'No',3);
Ass=AddBoundary(Ass,1,'No',4);
Bound1=[1,1,0,0,0,0];
Ass=SetBoundaryType(Ass,1,Bound1);
Ass=SetBoundaryType(Ass,2,Bound1);
Ass=SetBoundaryType(Ass,3,Bound1);
Plot(Ass,'boundary',1,...
  'load',1,...
  'load_scale',0.2,'View',[0,90]);
% Material
mat.Name='Steel';
mat.table=["EX",210000;"PRXY",0.3];
mat.TBlab="BKIN";
mat.TBtable="235";% yield strength
Ass=AddMaterial(Ass,mat);
Ass=SetMaterial(Ass,1,1);
% Element type
ET.name='1';
ET.opt=[];
ET.R=50;
Ass=AddET(Ass,ET);
Ass=SetET(Ass,1,1);
% Static analysis
opt.ANTYPE=0;
Ass=AddSolu(Ass,opt);
% Add sensor
Ass=AddSensor(Ass,'U',1);
Ass=AddSensor(Ass,'Etable','LS',...
  'TableNum',1,...
  'Part',1);
% Output to ANSYS
ANSYS_Output(Ass);
if Cal
  ANSYSSolve(Ass);
  PlotSensor(Ass,1);
  PlotSensor(Ass,2);
end

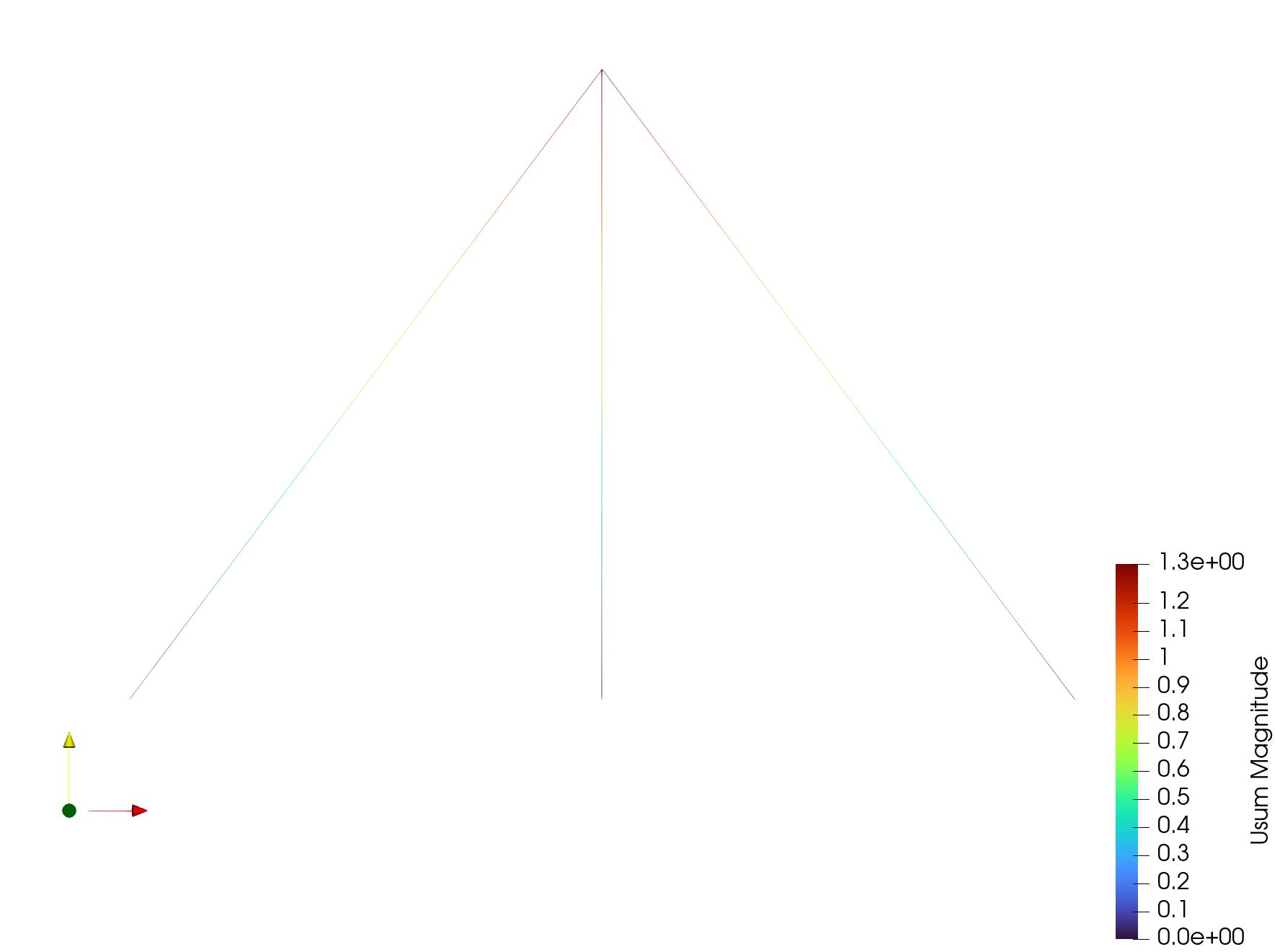

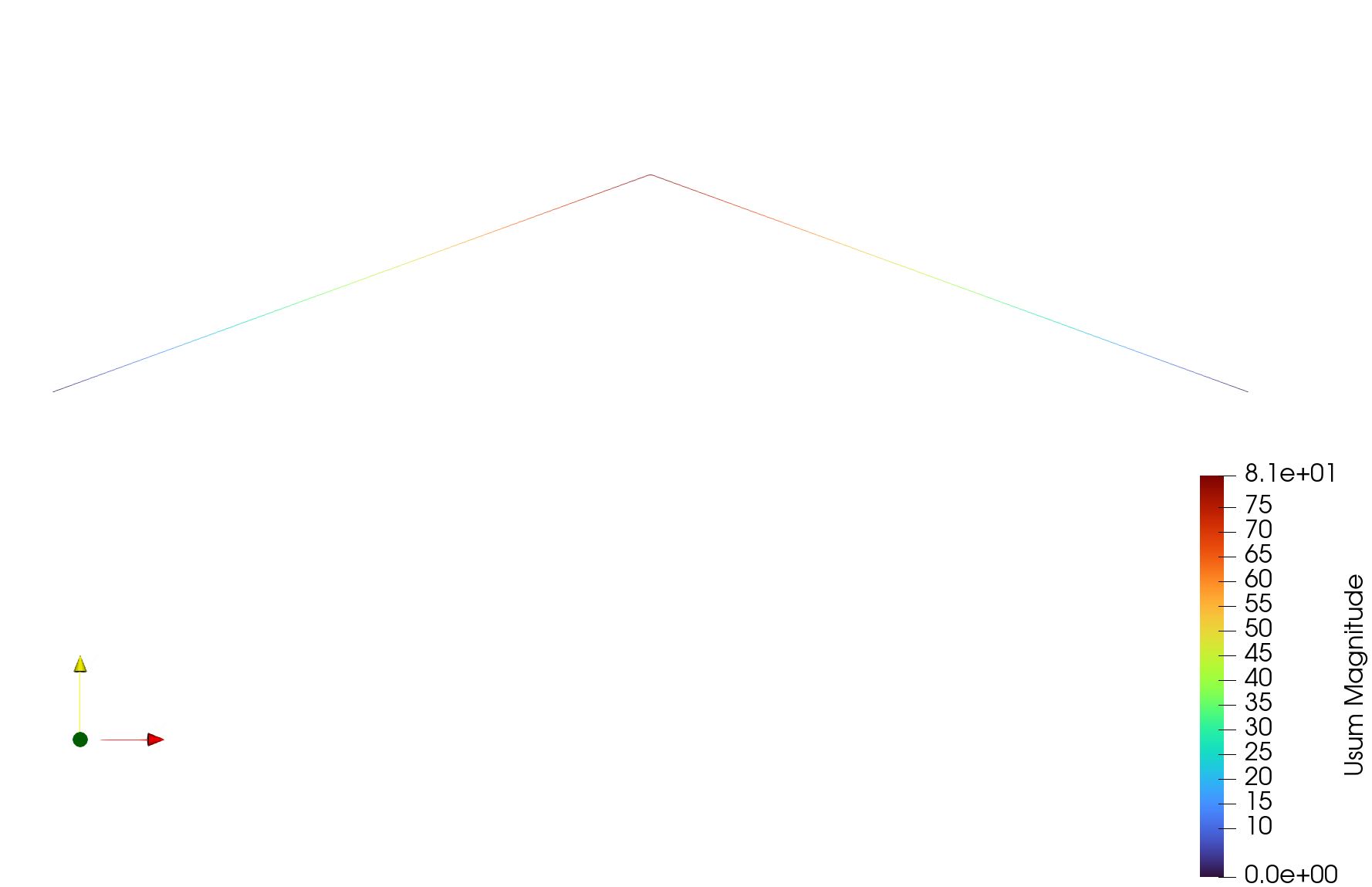

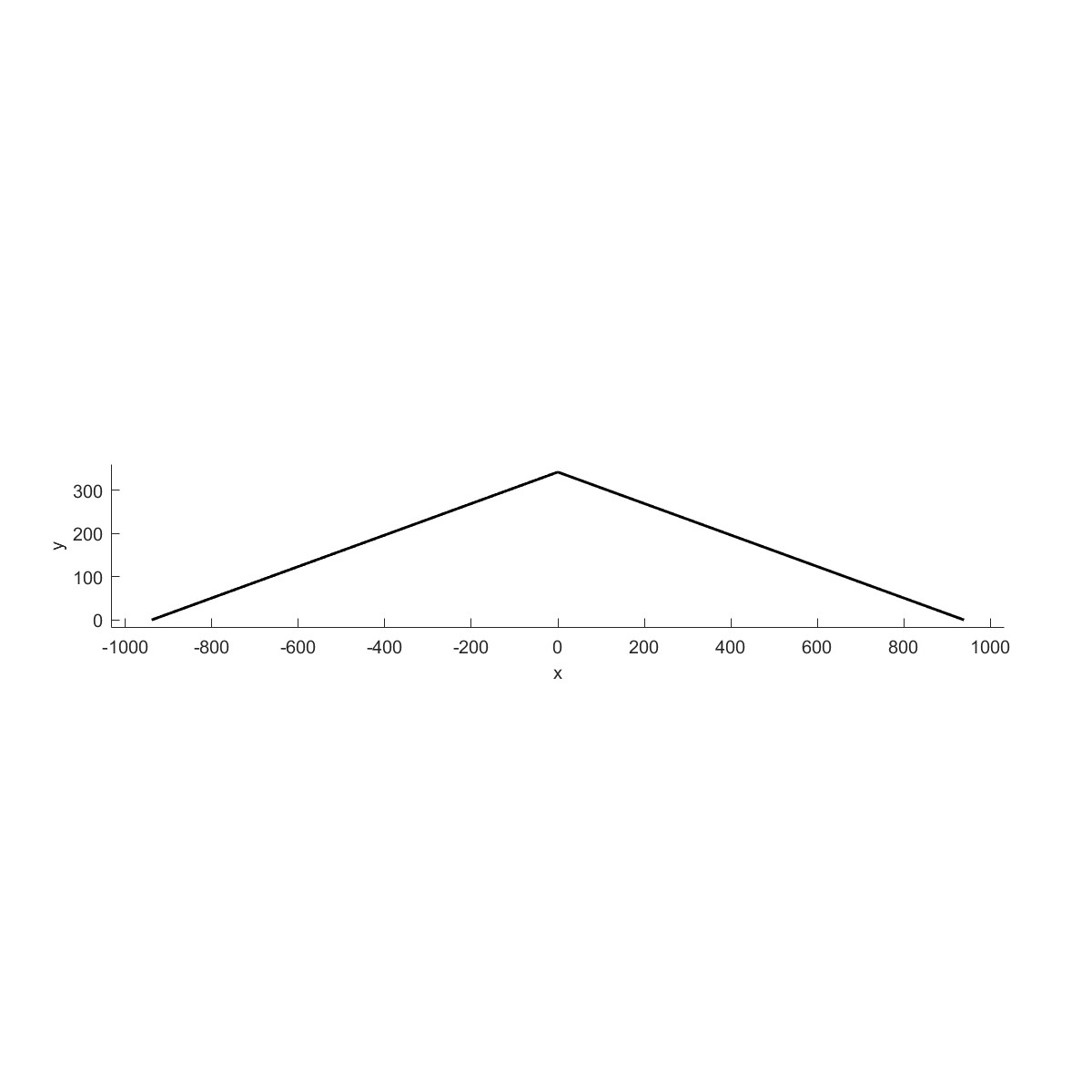

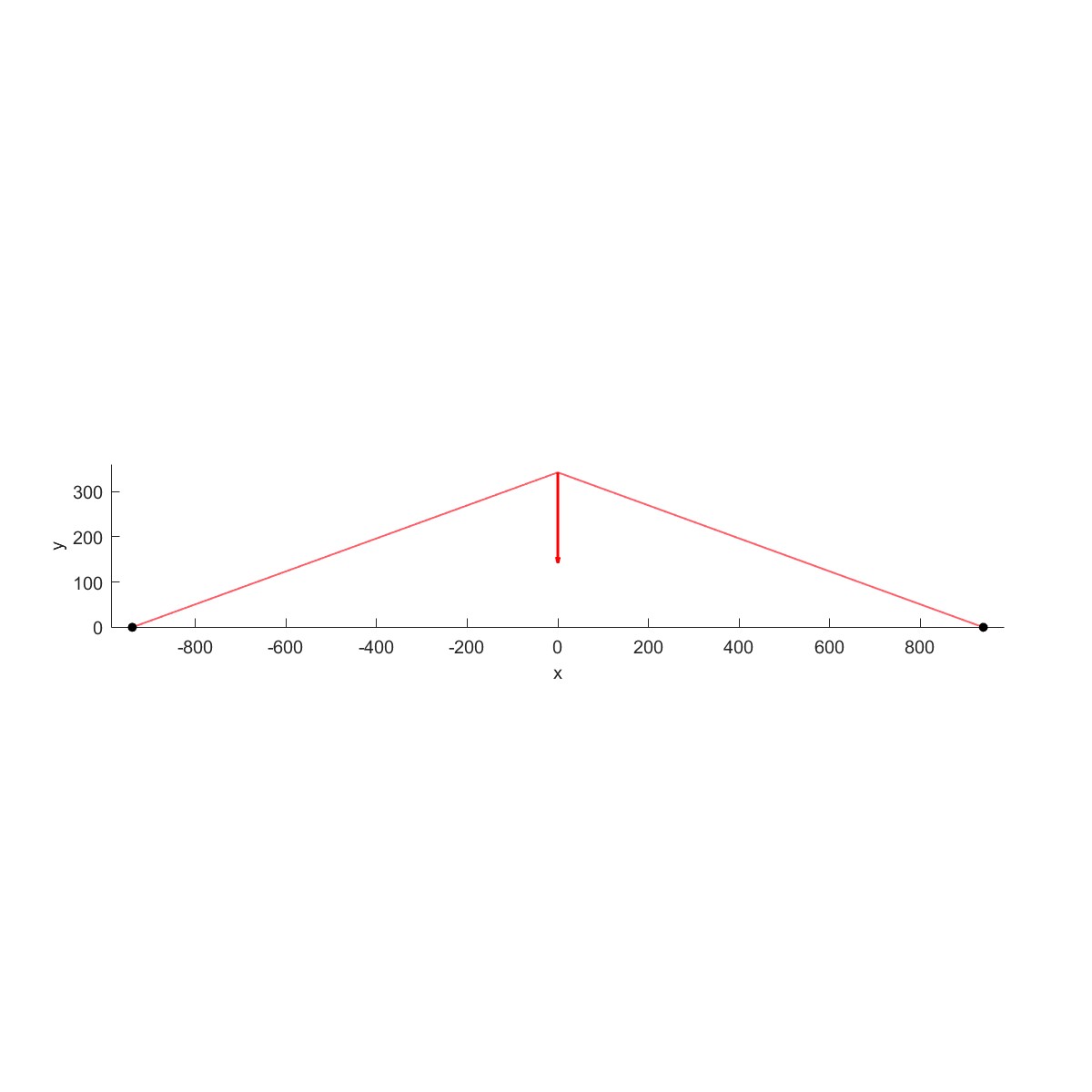

Link1 Two-force bar truss buckling analysis (Flag=3)

% Create geometry
a=Point2D('Point');
a=AddPoint(a,[-1000*cos(pi/9);0],[0;1000*sin(pi/9)]);
a=AddPoint(a,[0;1000*cos(pi/9)],[1000*sin(pi/9);0]);
b=Line2D('Two-force Truss');
for i=1:2
b=AddLine(b,a,i);
end
Plot(b,'equal',1);
b=Meshoutput(b);
% Add assembly
Ass=Assembly('Two-force_Truss');
pos=[0,0,0,0,0,0];
Ass=AddPart(Ass,b.Meshoutput,'position',pos);
% Load
Ass=AddLoad(Ass,1,'No',2);
Load1=[0,-2e5,0,0,0,0];
Ass=SetLoad(Ass,1,Load1);
% Boundary
Ass=AddBoundary(Ass,1,'No',1);
Ass=AddBoundary(Ass,1,'No',3);
Bound1=[1,1,0,0,0,0];
Ass=SetBoundaryType(Ass,1,Bound1);
Ass=SetBoundaryType(Ass,2,Bound1);
Plot(Ass,'boundary',1,...
'load',1,...
'load_scale',0.001,...
'View',[0,90]);
% Material
mat.Name='Steel';
mat.table=["EX",210000;"PRXY",0.3];
Ass=AddMaterial(Ass,mat);
Ass=SetMaterial(Ass,1,1);
% Element type
ET.name='1';
ET.opt=[];
ET.R=50;
Ass=AddET(Ass,ET);
Ass=SetET(Ass,1,1);
% Static analysis
opt.ANTYPE=0;
Ass=AddSolu(Ass,opt);
% Add sensor
Ass=AddSensor(Ass,'U',1);
% Output to ANSYS
ANSYS_Output(Ass);
if Cal
ANSYSSolve(Ass)
PlotSensor(Ass,1)
end

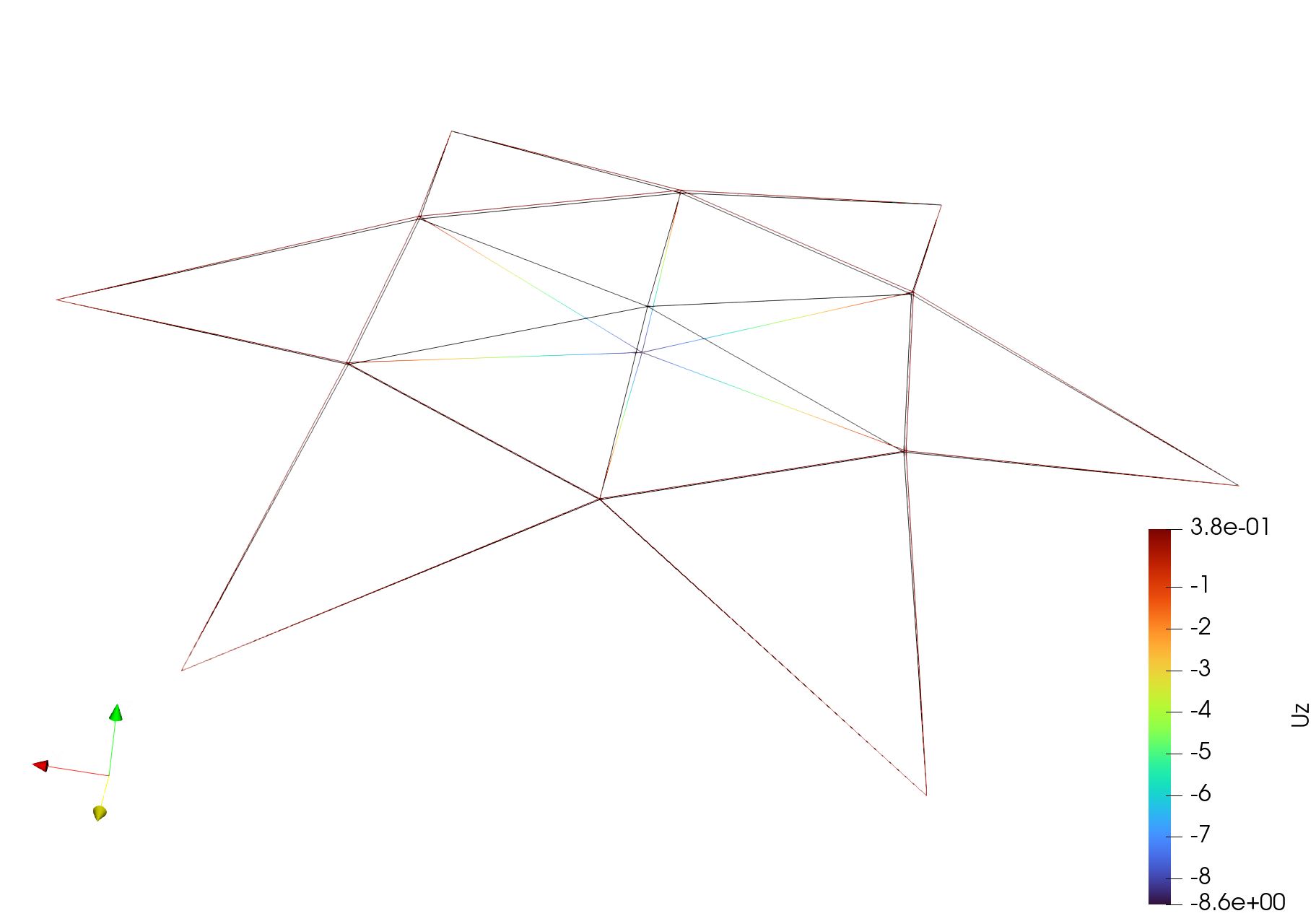

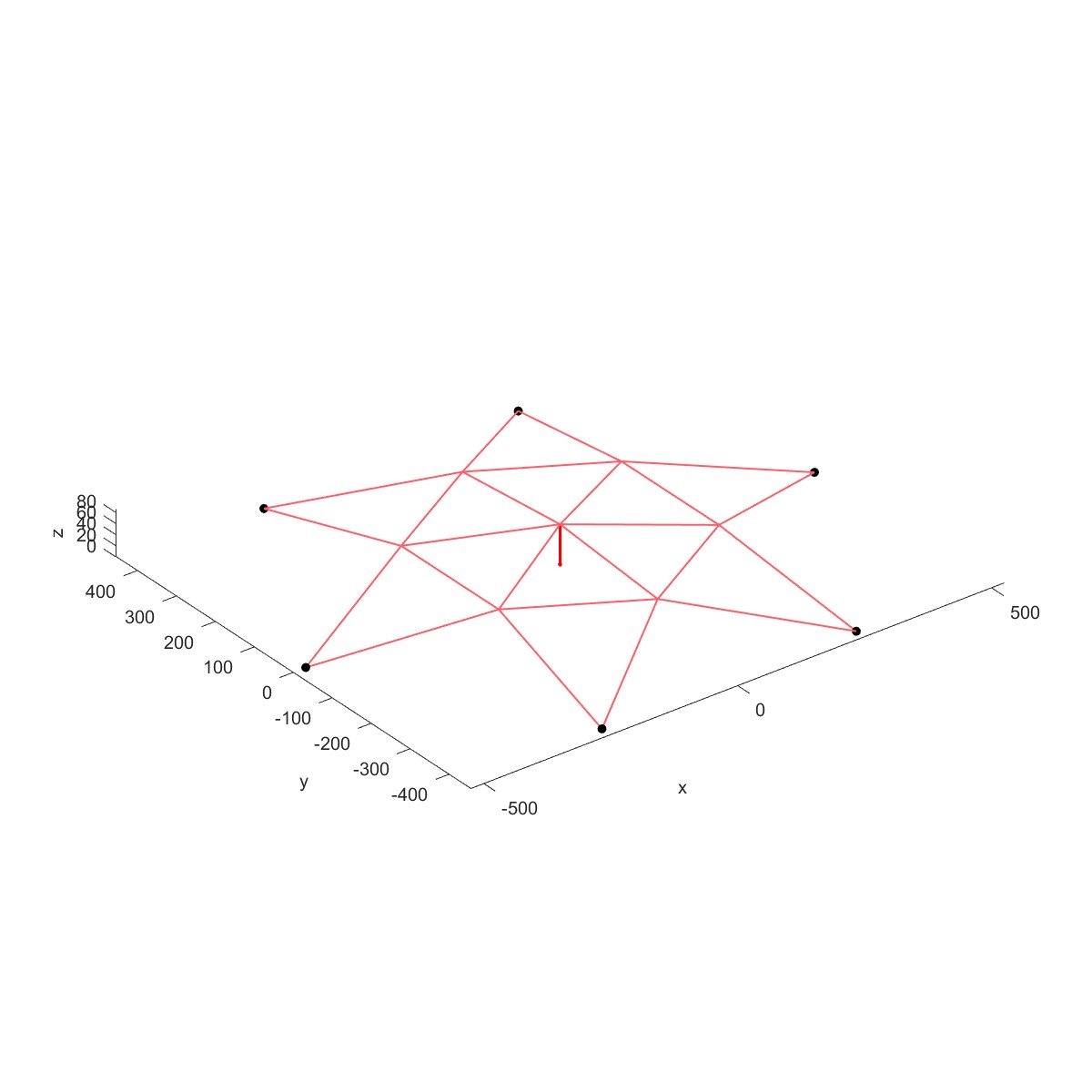

Link8 Hexagonal Dome analysis (Flag=4)

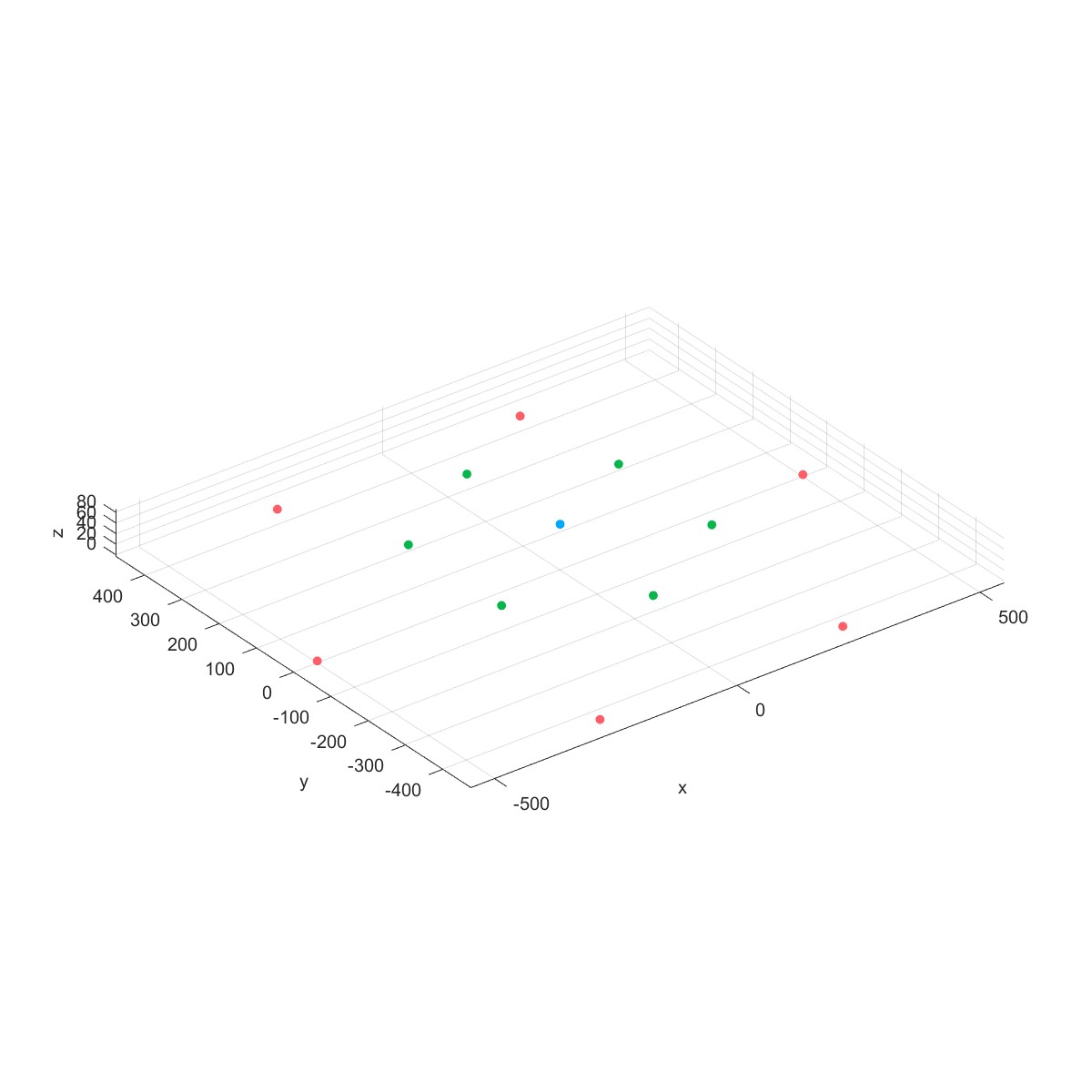

% Create points
theta1=linspace(60,360,6);
theta2=linspace(30,330,6);
a1=Point2D('Point1');
a2=Point2D('Point2');
a3=Point2D('Point3');
a1=AddPoint(a1,500*ones(6,1),theta1','polar','deg');
a2=AddPoint(a2,250*ones(6,1),theta2','polar','deg');
a3=AddPoint(a3,0,0);

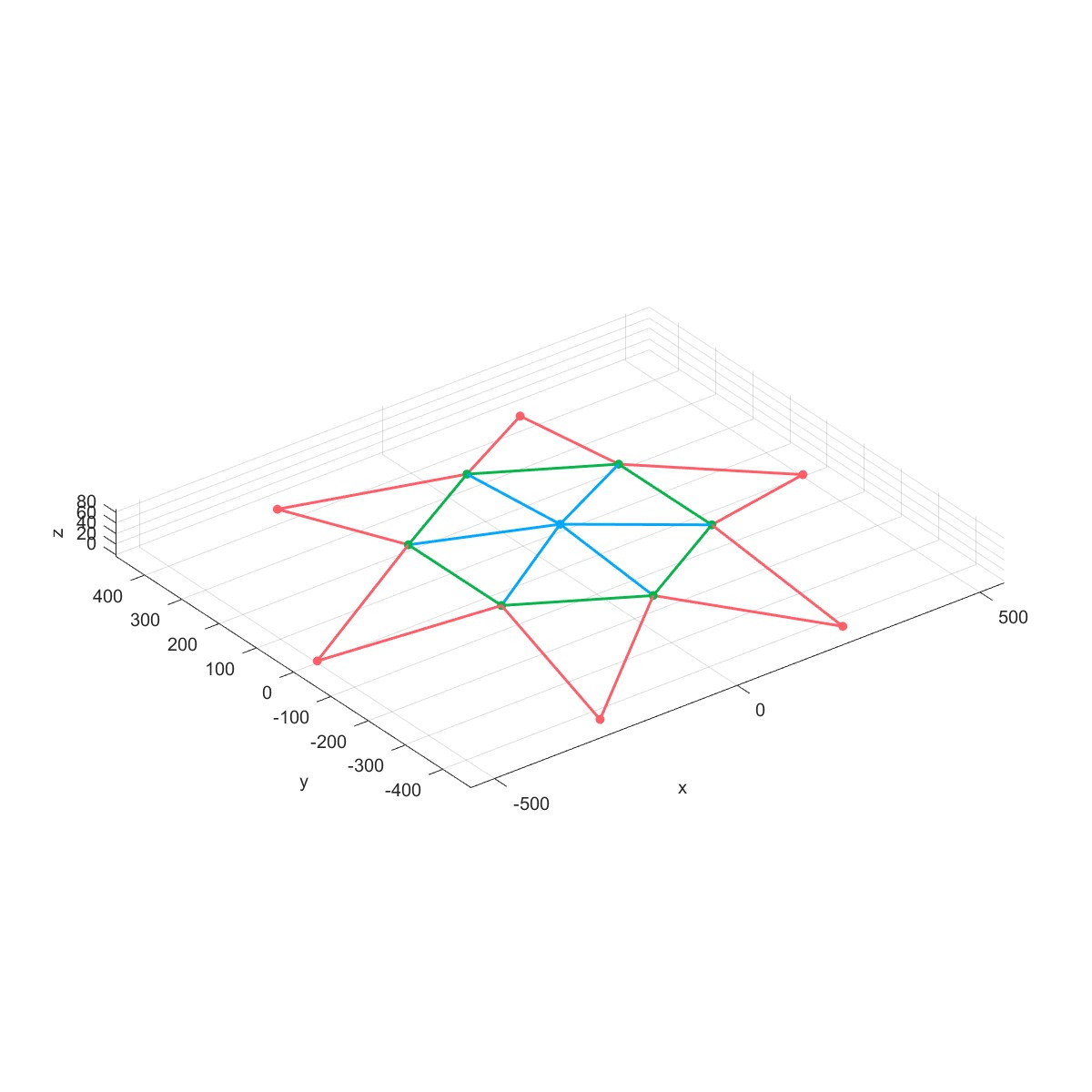

% Create lines
l=Layer('frame');
pos2=[0,0,62.16,0,0,0];
pos3=[0,0,82.16,0,0,0];
l=AddElement(l,a1);
l=AddElement(l,a2,'Transform',pos2);
l=AddElement(l,a3,'Transform',pos3);
Plot(l);
l=ConnectPoints(l,1,2,[(1:6)';(1:6)'],[(1:6)';(2:6)';1]);
l=ConnectPoints(l,2,2,(1:6)',[(2:6)';1]);
l=ConnectPoints(l,2,3,(1:6)',ones(6,1));
Plot(l);
l=Meshoutput(l);
% Add assembly
Ass=Assembly('Hexagonal_Dome');
pos=[0,0,0,0,0,0];
Ass=AddPart(Ass,l.Meshoutput{1,1},...
'position',pos);
% Load
Ass=AddLoad(Ass,1,'No',13);
Load1=[0,0,-750,0,0,0];
Ass=SetLoad(Ass,1,Load1);
% Boundary
Ass=AddBoundary(Ass,1,'locz',0);
Bound1=[1,1,1,0,0,0];
Ass=SetBoundaryType(Ass,1,Bound1);
% Material
mat.table=["EX",3030;"PRXY",0.3];
Ass=AddMaterial(Ass,mat);
Ass=SetMaterial(Ass,1,1);
% Element type
ET.name='8';
ET.opt=[];
ET.R=317;
Ass=AddET(Ass,ET);
Ass=SetET(Ass,1,1);
Plot(Ass,'boundary',1,'load',1,'load_scale',0.1);
% Static analysis
opt.ANTYPE=0;
Ass=AddSolu(Ass,opt);
% Add sensor
Ass=AddSensor(Ass,'U',1);
% Output to ANSYS
ANSYS_Output(Ass);
if Cal
ANSYSSolve(Ass);
PlotSensor(Ass,1);
end

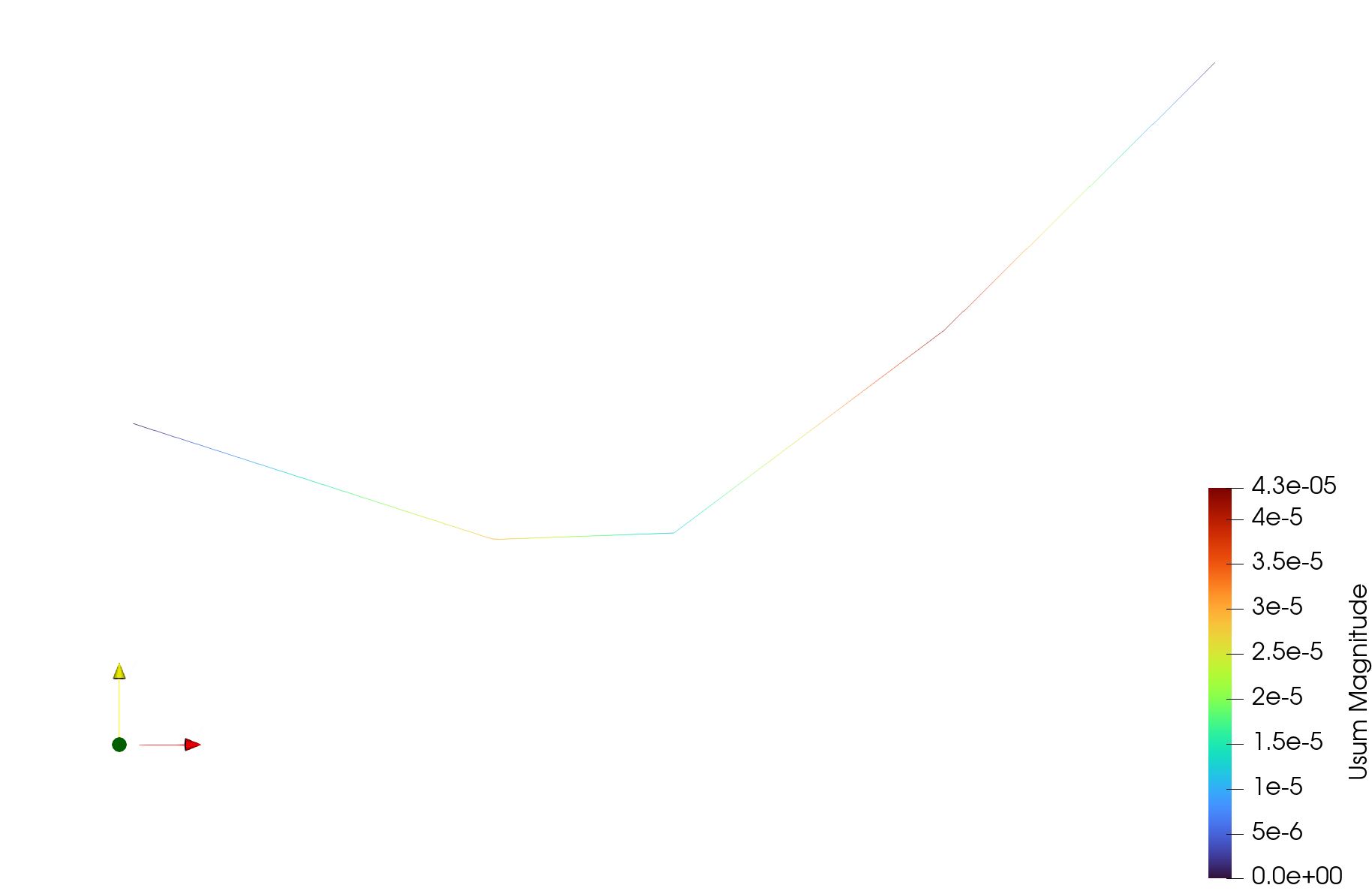

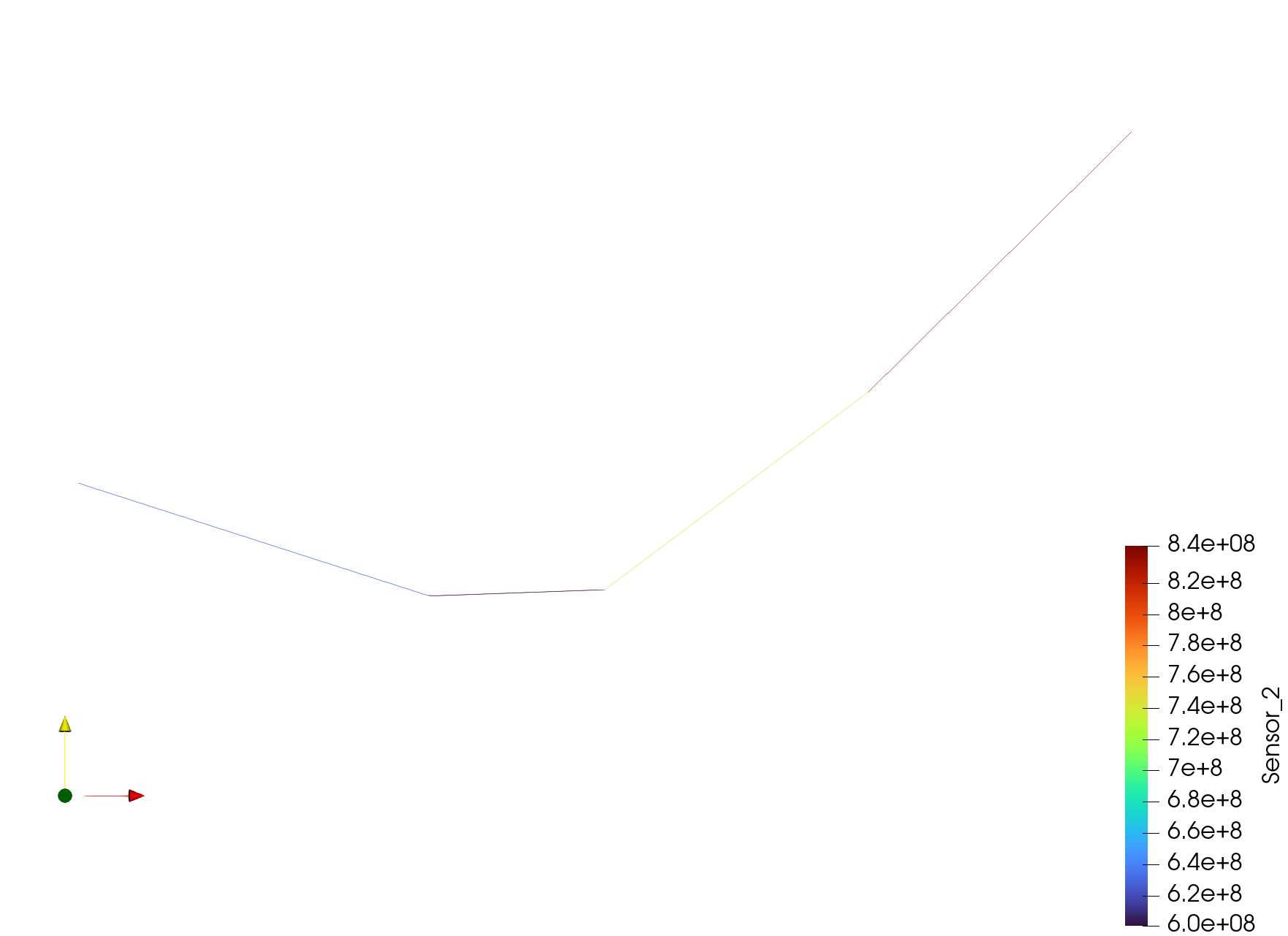

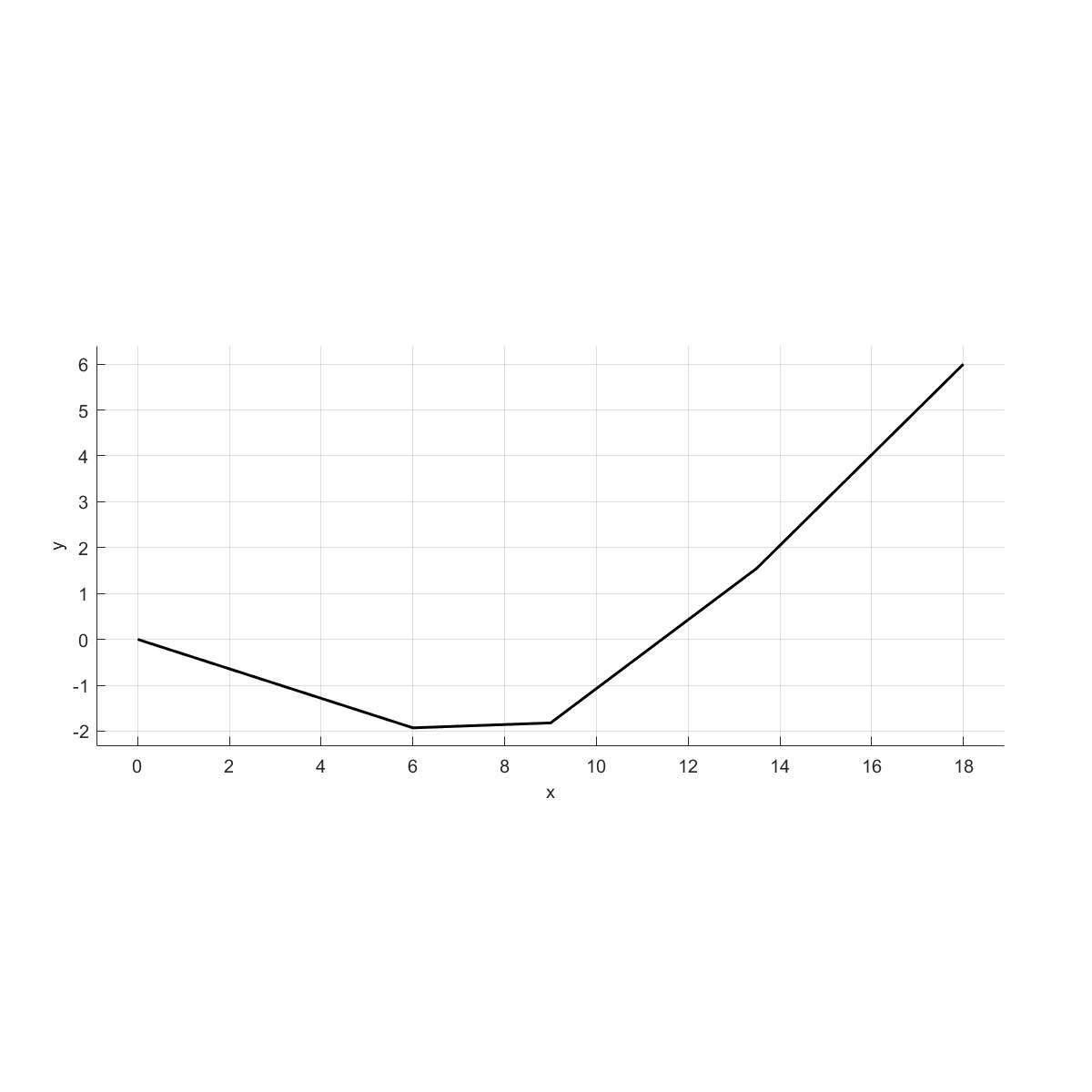

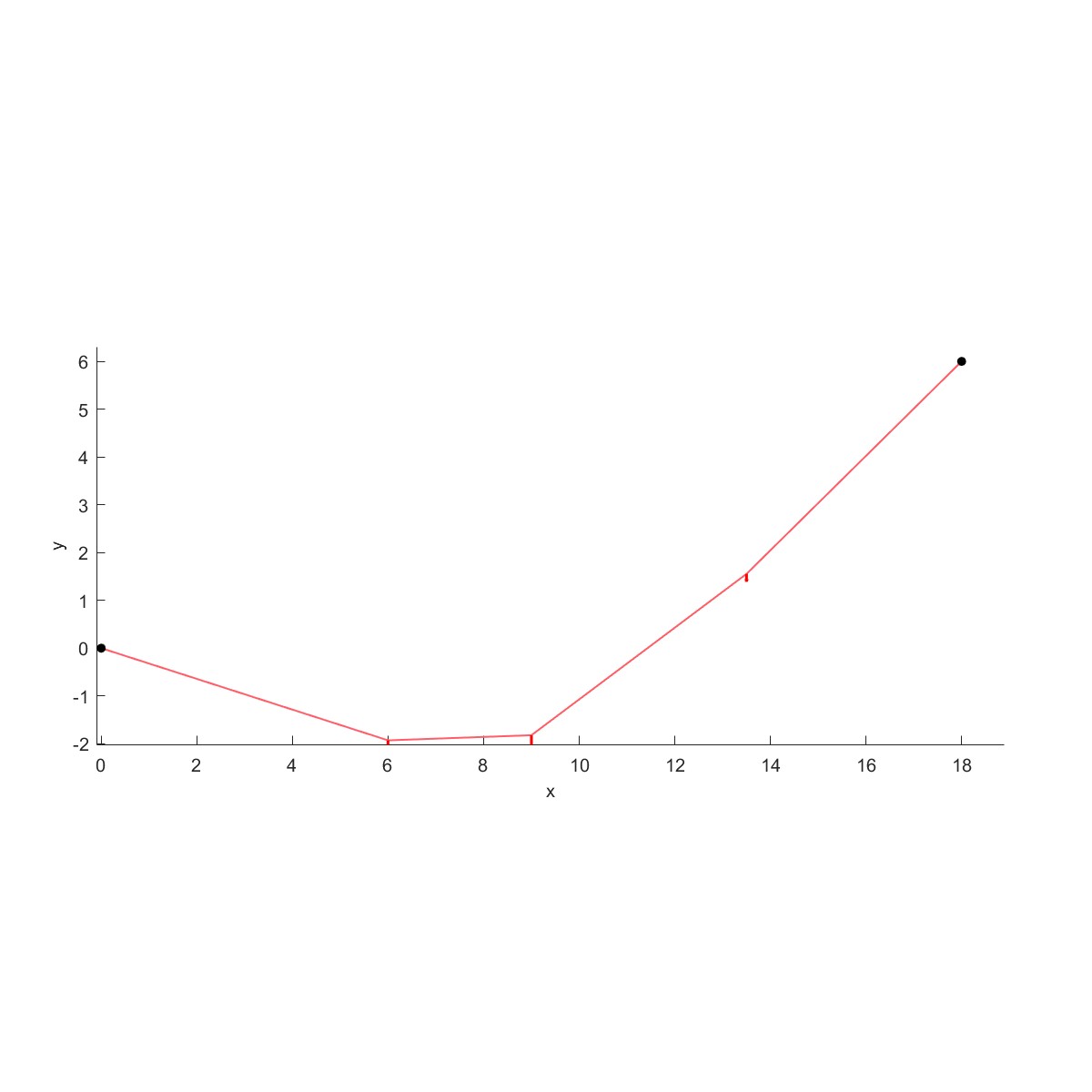

Link10 Force analysis of the cable in equilibrium state (Flag=5)

% Create points
x=[0 6 9 13.5 18];
y=[0 -1.9285 -1.8213 1.5537 6];
a=Point2D('Point');
a=AddPoint(a,x',y');
% Create lines
b=Line2D('Line');
b=AddCurve(b,a,1);
Plot(b,'equal',1,'grid',1)
b=Meshoutput(b);
% Add assembly
Ass=Assembly('Cable');
pos=[0,0,0,0,0,0];
Ass=AddPart(Ass,b.Meshoutput,'position',pos);
% Load
Ass=AddLoad(Ass,1,'No',2);
Ass=AddLoad(Ass,1,'No',3);
Ass=AddLoad(Ass,1,'No',4);
Load1=[0,-3e4,0,0,0,0];
Load2=[0,-6e4,0,0,0,0];
Load3=[0,-2e4,0,0,0,0];
Ass=SetLoad(Ass,1,Load1);
Ass=SetLoad(Ass,2,Load2);
Ass=SetLoad(Ass,3,Load3);
% Boundary
Ass=AddBoundary(Ass,1,'No',1);
Ass=AddBoundary(Ass,1,'No',5);
Bound1=[1,1,1,0,0,0];
Ass=SetBoundaryType(Ass,1,Bound1);
Ass=SetBoundaryType(Ass,2,Bound1);
% Material
mat.table=["EX",1.95e11*1e5;"PRXY",0.3];
Ass=AddMaterial(Ass,mat);
Ass=SetMaterial(Ass,1,1);
% Element type
ET.name='10';
ET.opt=[];
ET.R=[140e-6,1e6/(1.95e11*1e5)];
Ass=AddET(Ass,ET);
Ass=SetET(Ass,1,1);
% Static analysis
opt.ANTYPE=0;
opt.NLGEOM=1;% Nolinear analysis
Ass=AddSolu(Ass,opt);
% Add sensor
Ass=AddSensor(Ass,'U',1);
Ass=AddSensor(Ass,'Etable','LS',...
'TableNum',1,...
'Part',1);
% Output to ANSYS
ANSYS_Output(Ass);
Plot(Ass,'boundary',1,...
'load',1,'load_scale',0.1,...
'view',[0,90]);
if Cal
ANSYSSolve(Ass);
PlotSensor(Ass,1);
PlotSensor(Ass,2);
end

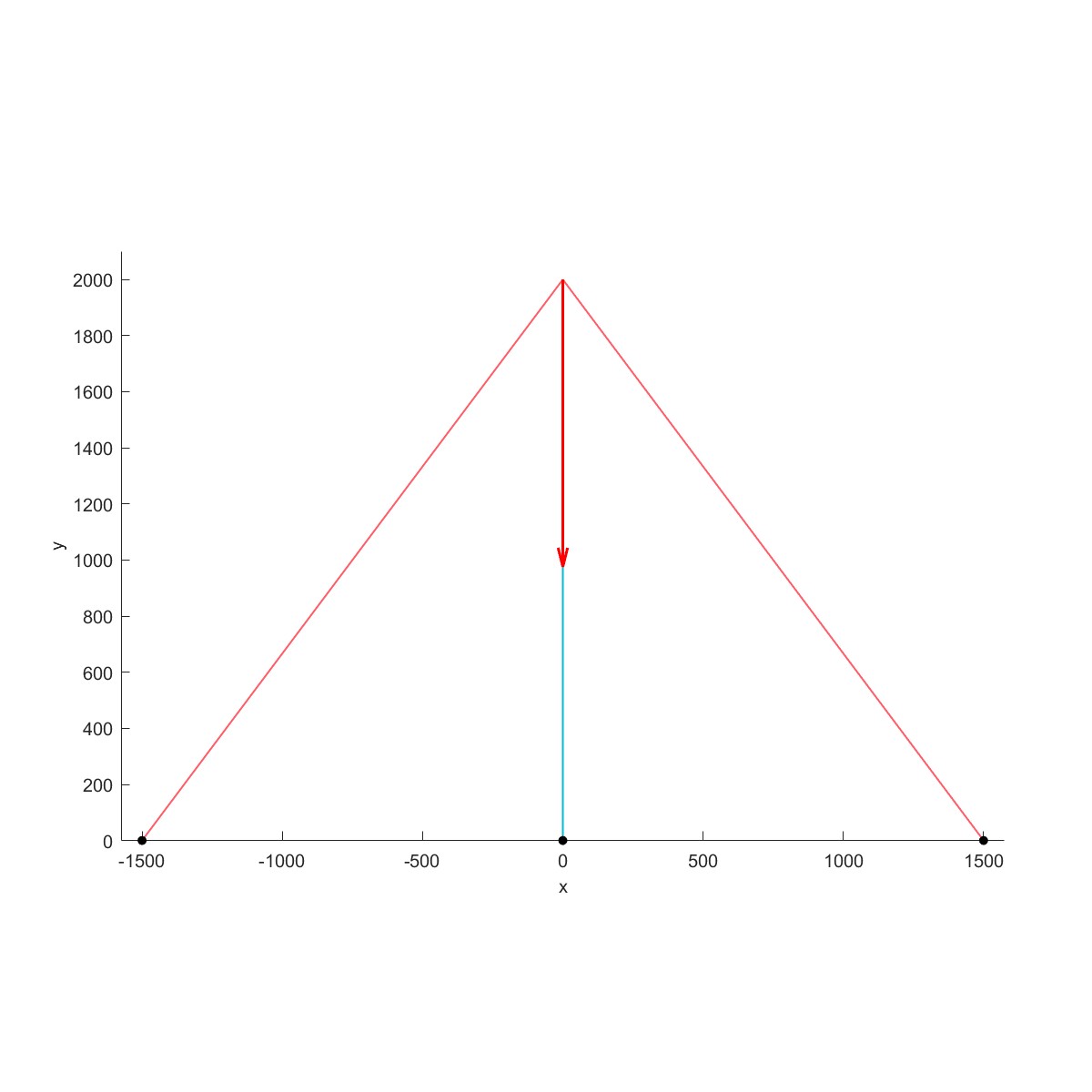

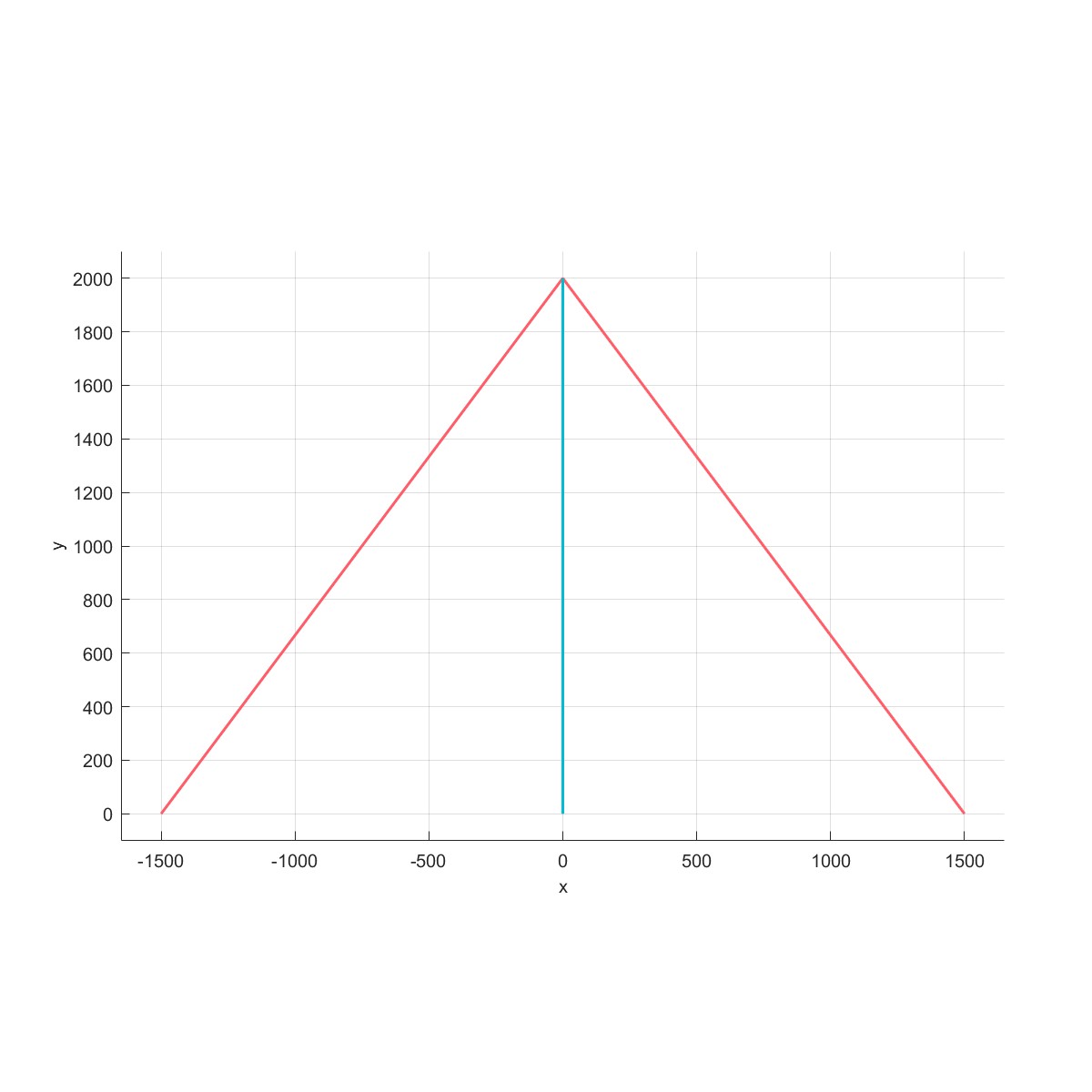

Link10 Rod structure with gaps (Flag=6)

% Create points
a1=Point2D('Point1');
a1=AddPoint(a1,[-1500;0],[0;2000]);
a1=AddPoint(a1,[0;1500],[2000;0]);
a2=Point2D('Point2');
a2=AddPoint(a2,[0;0],[2000;0]);
% Create lines
b1=Line2D('Line1');
b1=AddLine(b1,a1,1);
b1=AddLine(b1,a1,2);
b2=Line2D('Line2');
b2=AddLine(b2,a2,1);
l=Layer('Layer');
l=AddElement(l,b1);
l=AddElement(l,b2);
Plot(l,'view',[0,90]);
l=Meshoutput(l);
% Add assembly
Ass=Assembly('Rod_structure_with_gaps');
pos=[0,0,0,0,0,0];
Ass=AddPart(Ass,l.Meshoutput{1,1},'position',pos);
% Load
Ass=AddLoad(Ass,1,'No',2);
Load1=[0,-20480,0,0,0,0];
Ass=SetLoad(Ass,1,Load1);
% Boundary
Ass=AddBoundary(Ass,1,'No',1);
Ass=AddBoundary(Ass,1,'No',4);
Ass=AddBoundary(Ass,1,'No',3);
Bound1=[1,1,1,0,0,0];
Ass=SetBoundaryType(Ass,1,Bound1);
Ass=SetBoundaryType(Ass,2,Bound1);
Ass=SetBoundaryType(Ass,3,Bound1);
% Material
mat.table=["EX",1.2e5;"PRXY",0.3];
Ass=AddMaterial(Ass,mat);
Ass=SetMaterial(Ass,1,1);
% Divide part
Ass=DividePart(Ass,1,l.Matrix{1,1});
% Element type
ET1.name='8';
ET1.opt=[];
ET1.R=200;
ET2.name='10';
ET2.opt=[3,1];
ET2.R=[200,1/2000];
AddET(Ass,ET1);
AddET(Ass,ET2);
SetET(Ass,1,1);
SetET(Ass,2,2);
Plot(Ass,'boundary',1,...
'load',1,'load_scale',0.05,...
'view',[0,90]);
% Static analysis
opt.ANTYPE=0;
Ass=AddSolu(Ass,opt);
% Add sensor
Ass=AddSensor(Ass,'U',1);
% Output to ANSYS
ANSYS_Output(Ass);
if Cal
ANSYSSolve(Ass);
PlotSensor(Ass,1);
end

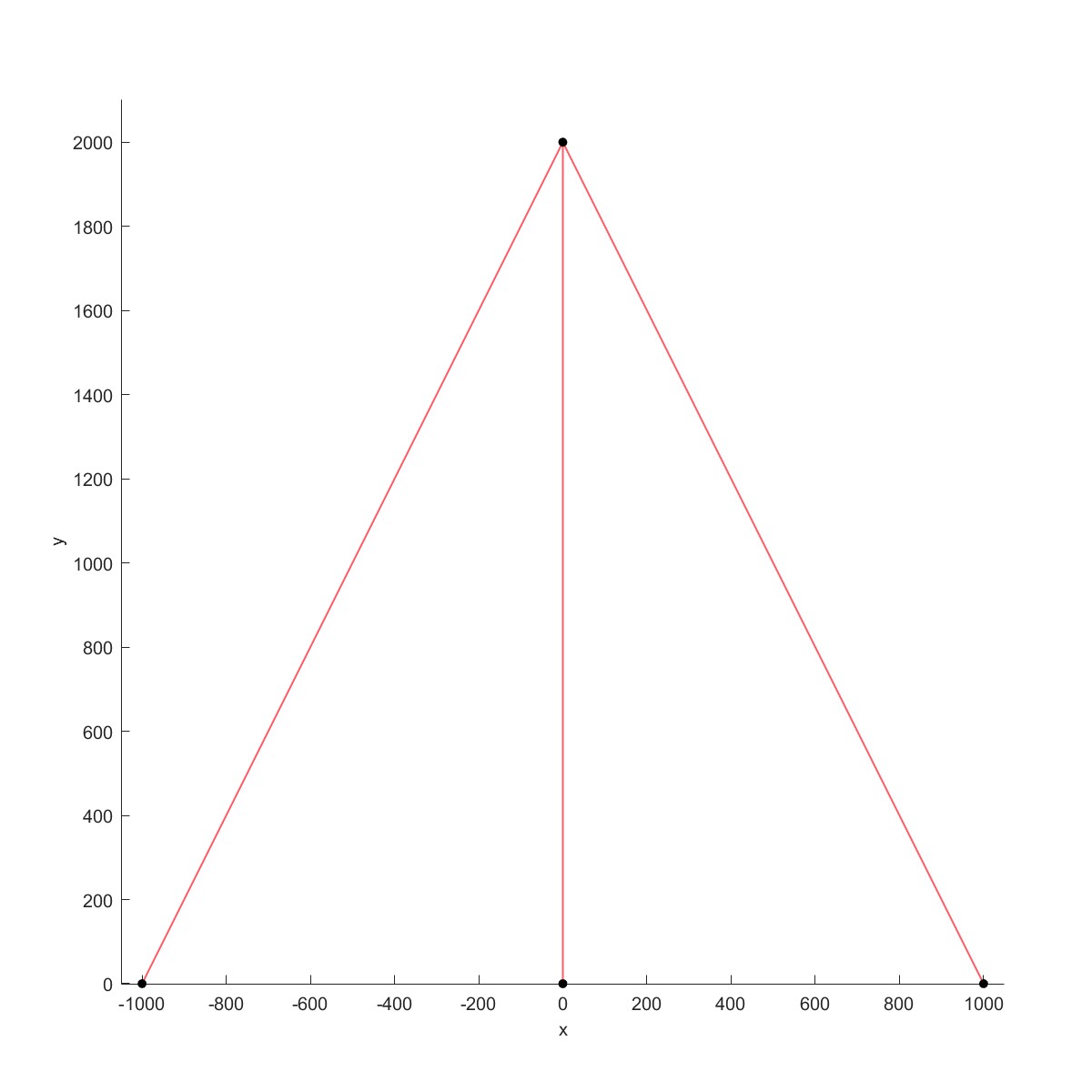

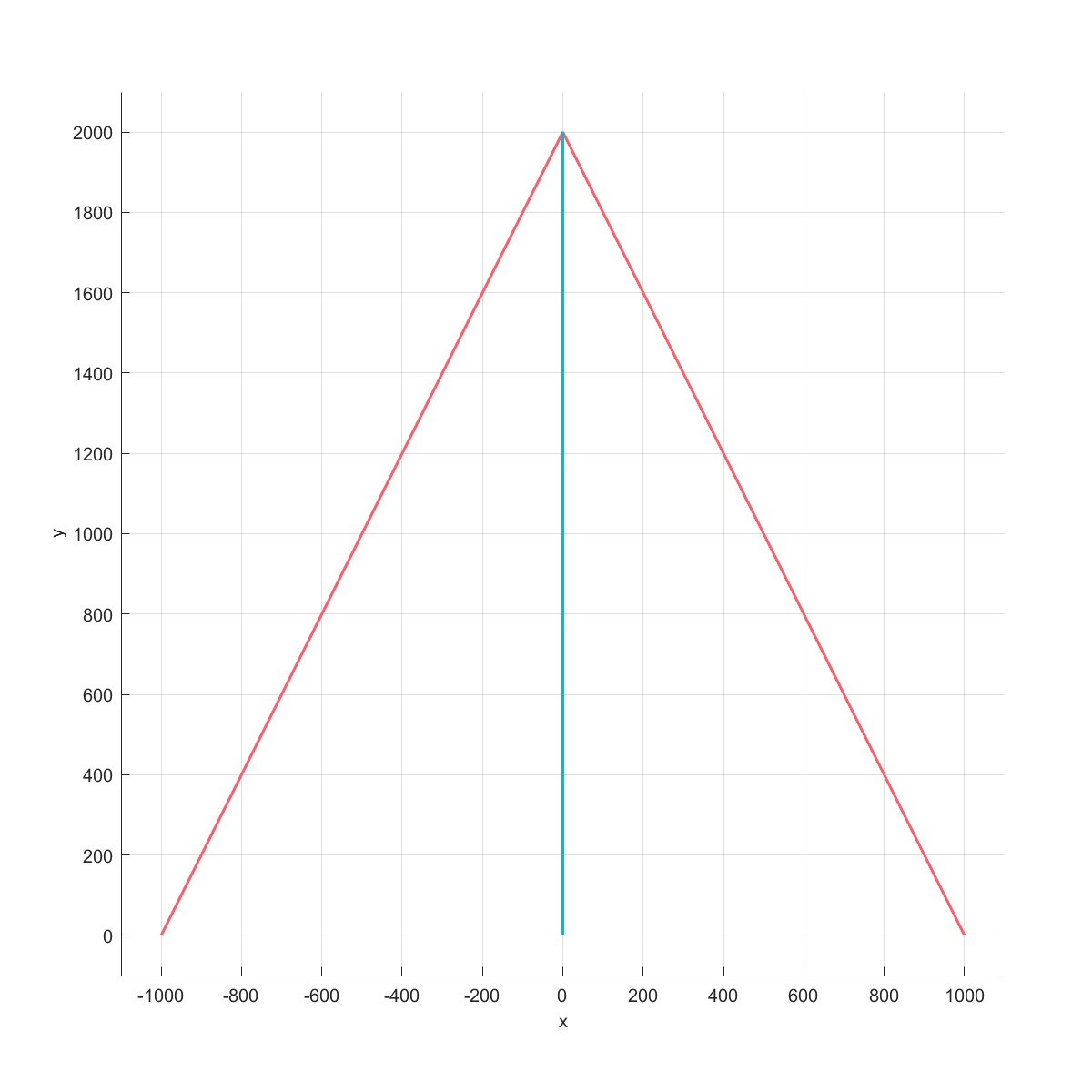

Link180 Rod structure with initial stress (Flag=7)

% Create points
a1=Point2D('Point1');
a1=AddPoint(a1,[-1000;0],[0;2000]);
a1=AddPoint(a1,[0;1000],[2000;0]);
a2=Point2D('Point2');
a2=AddPoint(a2,[0;0],[2000;0]);
% Create lines
b1=Line2D('Line1');
b1=AddLine(b1,a1,1);
b1=AddLine(b1,a1,2);
b2=Line2D('Line2');
b2=AddLine(b2,a2,1);
l=Layer('Layer');
l=AddElement(l,b1);
l=AddElement(l,b2);
Plot(l,'view',[0,90]);
l=Meshoutput(l);
% Add assembly
Ass=Assembly('Rod_structure_with_initial_stress');
pos=[0,0,0,0,0,0];
Ass=AddPart(Ass,l.Meshoutput{1,1},'position',pos);
% Boundary
Ass=AddBoundary(Ass,1,'No',1);
Ass=AddBoundary(Ass,1,'No',4);
Ass=AddBoundary(Ass,1,'No',3);
Ass=AddBoundary(Ass,1,'No',2);
Bound1=[1,1,1,0,0,0];
Bound2=[0,0,1,0,0,0];
Ass=SetBoundaryType(Ass,1,Bound1);
Ass=SetBoundaryType(Ass,2,Bound1);
Ass=SetBoundaryType(Ass,3,Bound1);
Ass=SetBoundaryType(Ass,4,Bound2);
% Material
mat.table=["EX",1.2e5;"PRXY",0.3];
Ass=AddMaterial(Ass,mat);
Ass=SetMaterial(Ass,1,1);
% Element type
ET1.name='180';
ET1.opt=[];
ET1.R=10;
Ass=AddET(Ass,ET1);
Ass=SetET(Ass,1,1);
Plot(Ass,'boundary',1,...
'load',1,'load_scale',0.05,...
'view',[0,90]);
% Intial Stress
Ass=AddIStress(Ass,1,100,'element',2);
% Static analysis
opt.ANTYPE=0;
Ass=AddSolu(Ass,opt);
% Add sensor
Ass=AddSensor(Ass,'U',1);
% Output to ANSYS
ANSYS_Output(Ass);
if Cal
ANSYSSolve(Ass);
PlotSensor(Ass,1);
end

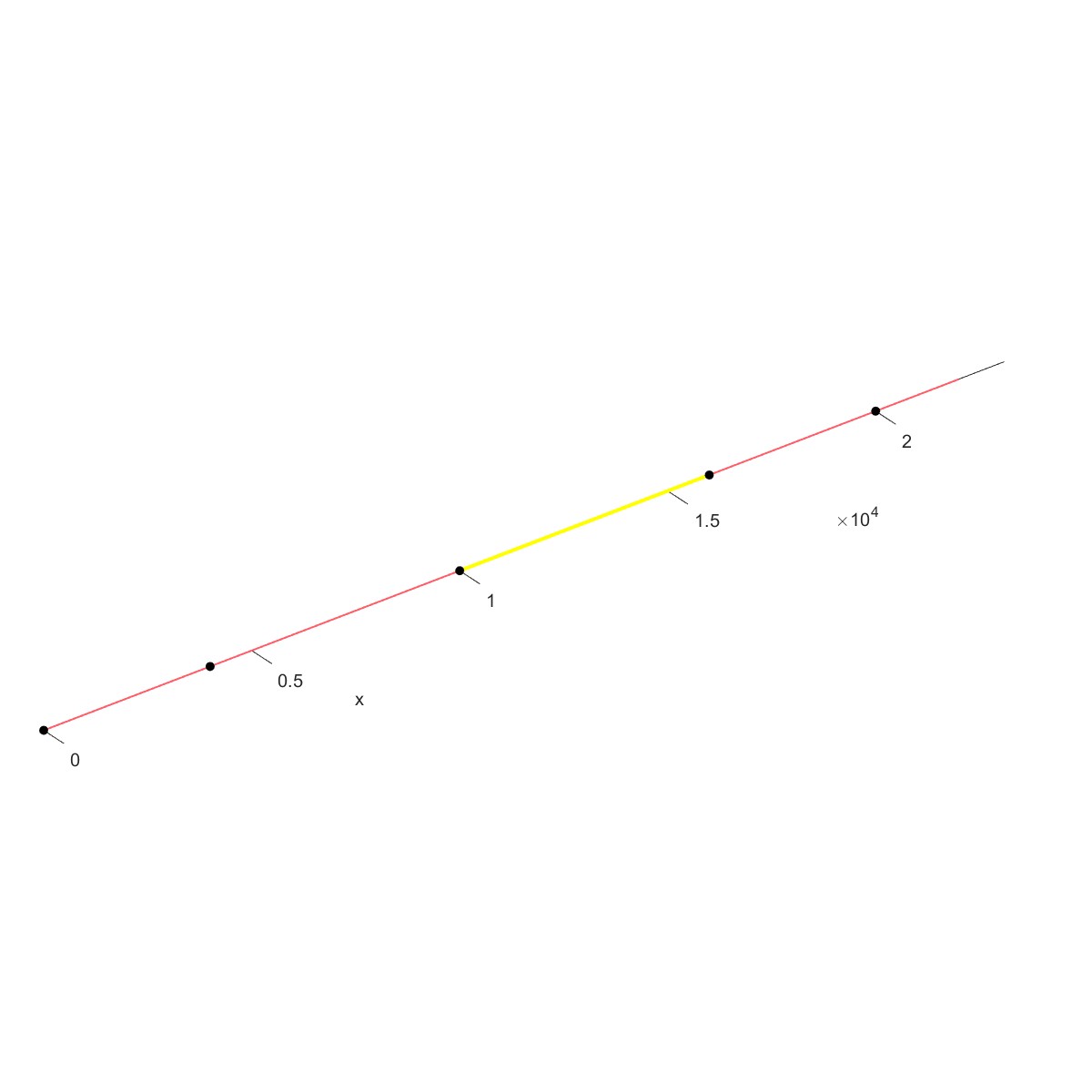

Beam3 Static analysis of multi-span beams (Flag=8)

% Create points
a=Point2D('Point1');
a=AddPoint(a,(0:500:22000)',zeros(45,1));
% Creat lines
b=Line2D('Line1');
b=AddCurve(b,a,1);
b=Meshoutput(b);
% Add assembly
Ass=Assembly('Multi-span_beams');
pos=[0,0,0,0,0,0];
Ass=AddPart(Ass,b.Meshoutput,'position',pos);
% Boundary
Ass=AddBoundary(Ass,1,'No',1);
Ass=AddBoundary(Ass,1,'No',9);
Ass=AddBoundary(Ass,1,'No',21);
Ass=AddBoundary(Ass,1,'No',33);
Ass=AddBoundary(Ass,1,'No',41);
Bound1=[1,1,0,0,0,0];
Bound2=[0,1,0,0,0,0];
Ass=SetBoundaryType(Ass,1,Bound1);
Ass=SetBoundaryType(Ass,2,Bound2);
Ass=SetBoundaryType(Ass,3,Bound2);
Ass=SetBoundaryType(Ass,4,Bound2);
Ass=SetBoundaryType(Ass,5,Bound2);
% Material
mat.table=["EX",2.1e5;"PRXY",0.3];
Ass=AddMaterial(Ass,mat);
Ass=SetMaterial(Ass,1,1);
% Element type
ET1.name='3';
ET1.opt=[];
ET1.R=[4000,1e6,20];
Ass=AddET(Ass,ET1);
Ass=SetET(Ass,1,1);
% Add load
Ass=AddLoad(Ass,1,'No',13);
Ass=AddLoad(Ass,1,'No',17);
Ass=AddLoad(Ass,1,'No',45);
Load1=[0,-3e4,0,0,0,0];
Load2=[0,-2e4,0,0,0,0];
Ass=SetLoad(Ass,1,Load1);
Ass=SetLoad(Ass,2,Load1);
Ass=SetLoad(Ass,3,Load2);
% Add SF
Ass=AddSF(Ass,1,(21:32)');
value=[1,20,20];
Ass=SetSF(Ass,1,value);
Plot(Ass,'boundary',1,'load',1,'load_scale',1);
% Static analysis
opt.ANTYPE=0;
Ass=AddSolu(Ass,opt);
% Add sensor
Ass=AddSensor(Ass,'U',1);
% Output to ANSYS
ANSYS_Output(Ass);
if Cal
PlotSensor(Ass,1);
end

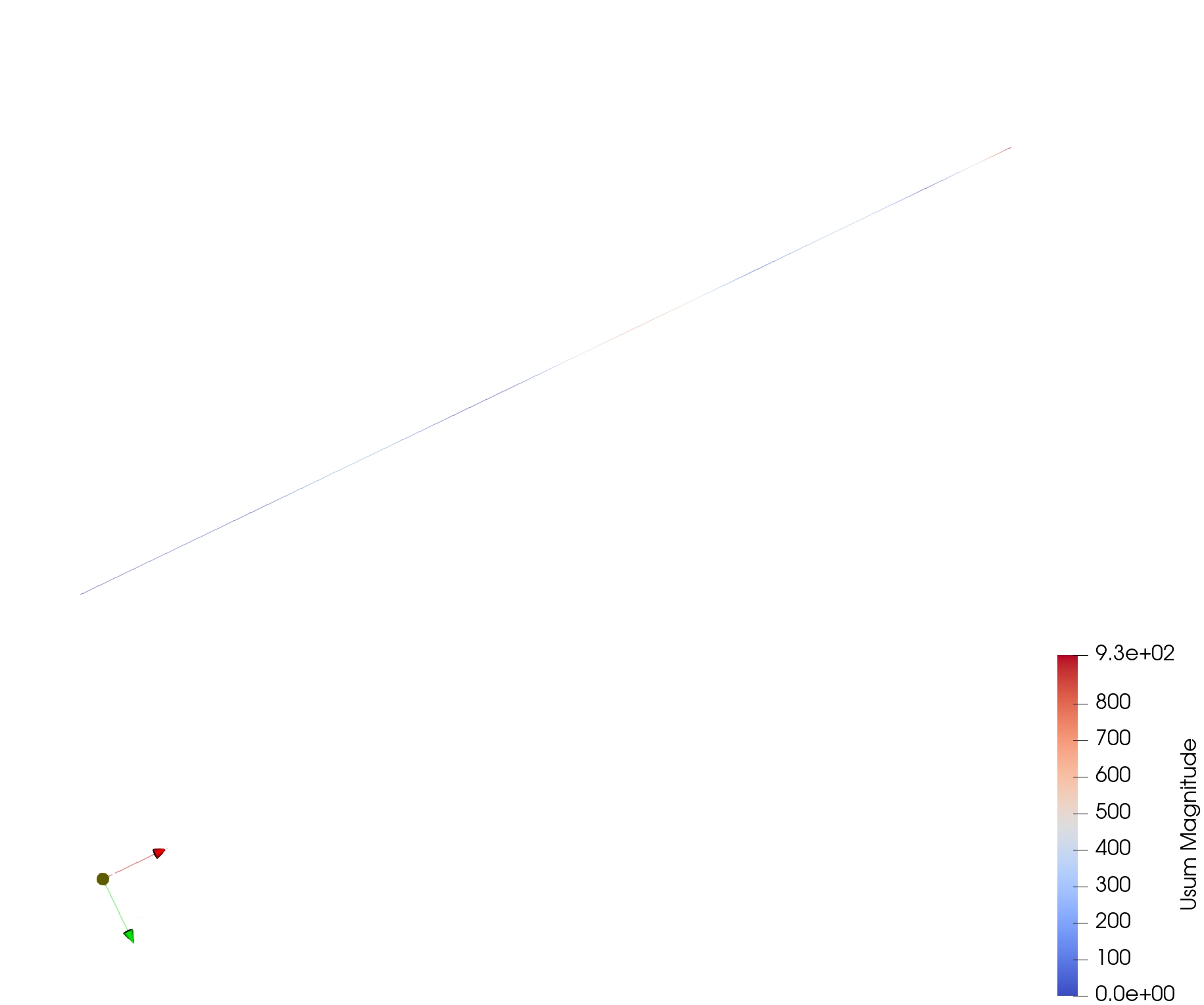

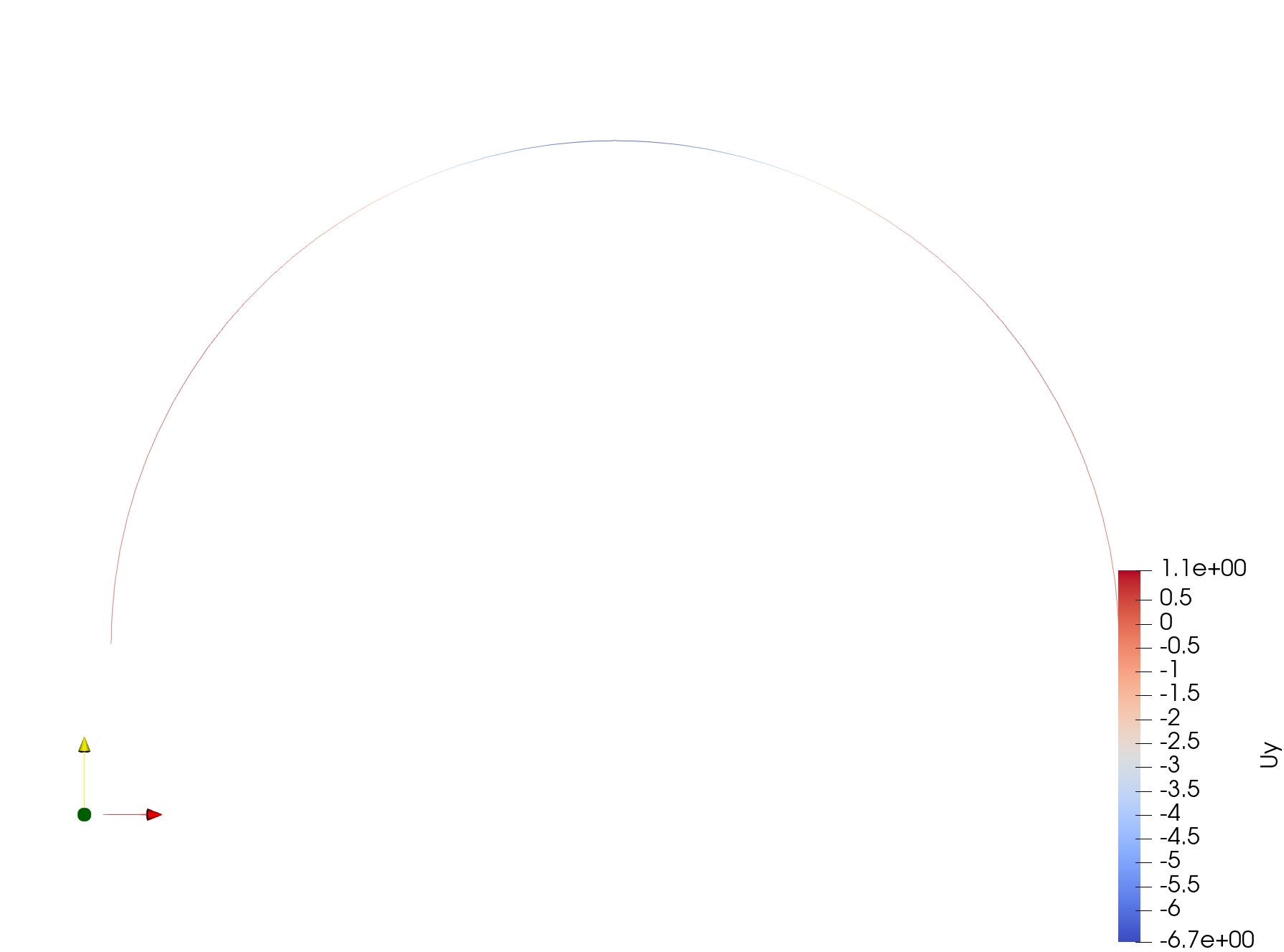

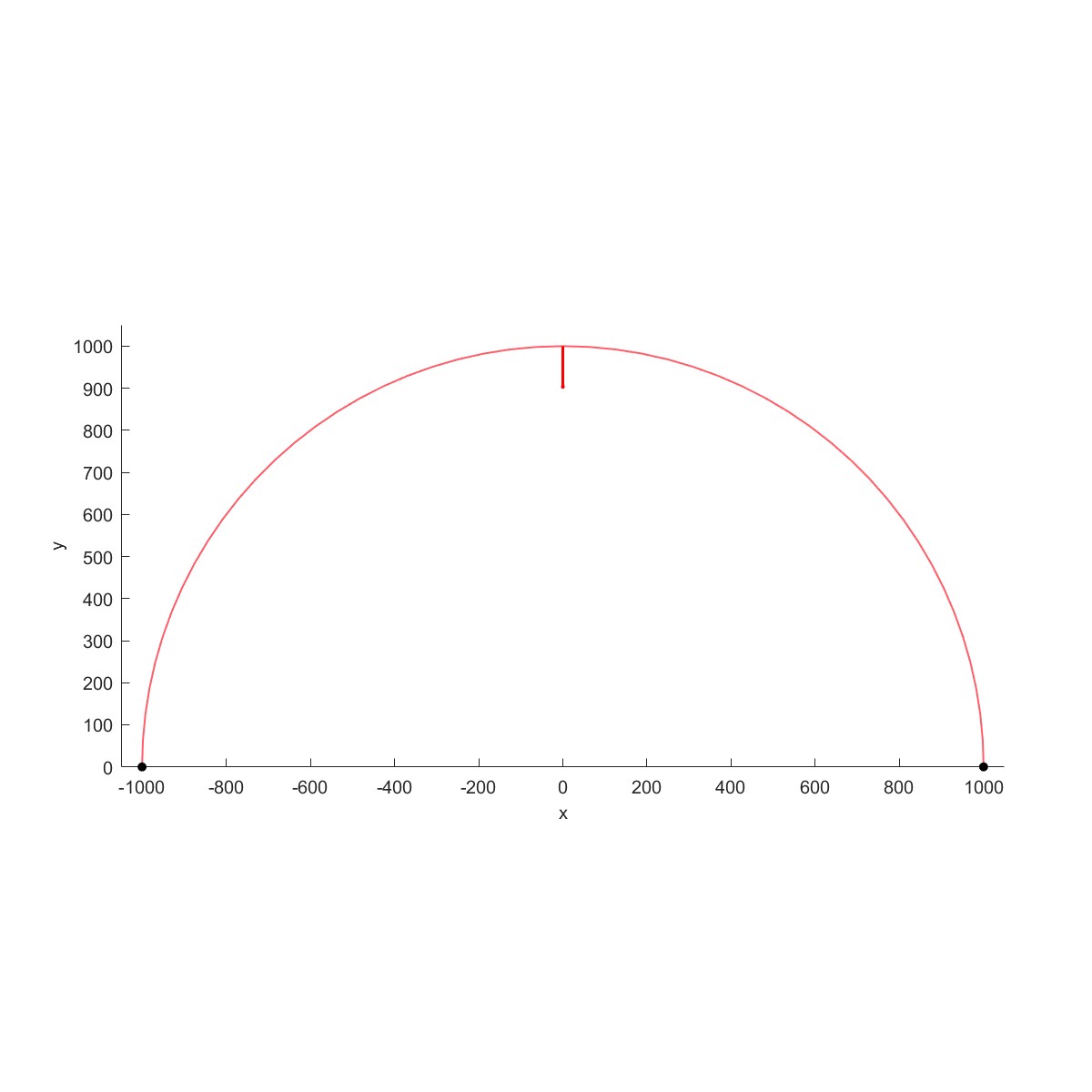

Beam3 Semicircular Hingeless Arch (Flag=9)

% Create points
a=Point2D('Point1');
a=AddPoint(a,0,0);
% Create lines
b=Line2D('Line1');
b=AddCircle(b,1000,a,1,'ang',180,'seg',50);
Plot(b);
b=Meshoutput(b);
% Add assembly
Ass=Assembly('Semicircular_Hingeless_Arch');
pos=[0,0,0,0,0,0];
Ass=AddPart(Ass,b.Meshoutput,'position',pos);
% Boundary
Ass=AddBoundary(Ass,1,'No',1);
Ass=AddBoundary(Ass,1,'No',50+1);
Bound1=[1,1,1,1,1,1];
Ass=SetBoundaryType(Ass,1,Bound1);
Ass=SetBoundaryType(Ass,2,Bound1);
% Material
mat.table=["EX",2.1e5;"PRXY",0.3];
Ass=AddMaterial(Ass,mat);
Ass=SetMaterial(Ass,1,1);
% Element type
ET1.name='3';
ET1.opt=[];
ET1.R=[100,10^4/12,10,1.2];
Ass=AddET(Ass,ET1);
Ass=SetET(Ass,1,1);
% Add load
Ass=AddLoad(Ass,1,'No',26);
Load1=[0,-100,0,0,0,0];
Ass=SetLoad(Ass,1,Load1);
Plot(Ass,'boundary',1,...
'load',1,'load_scale',1,...
'view',[0,90]);
% Static analysis
opt.ANTYPE=0;
Ass=AddSolu(Ass,opt);
% Add sensor
Ass=AddSensor(Ass,'U',1);
% Output to ANSYS
ANSYS_Output(Ass);
if Cal
ANSYSSolve(Ass);
PlotSensor(Ass,1);
end

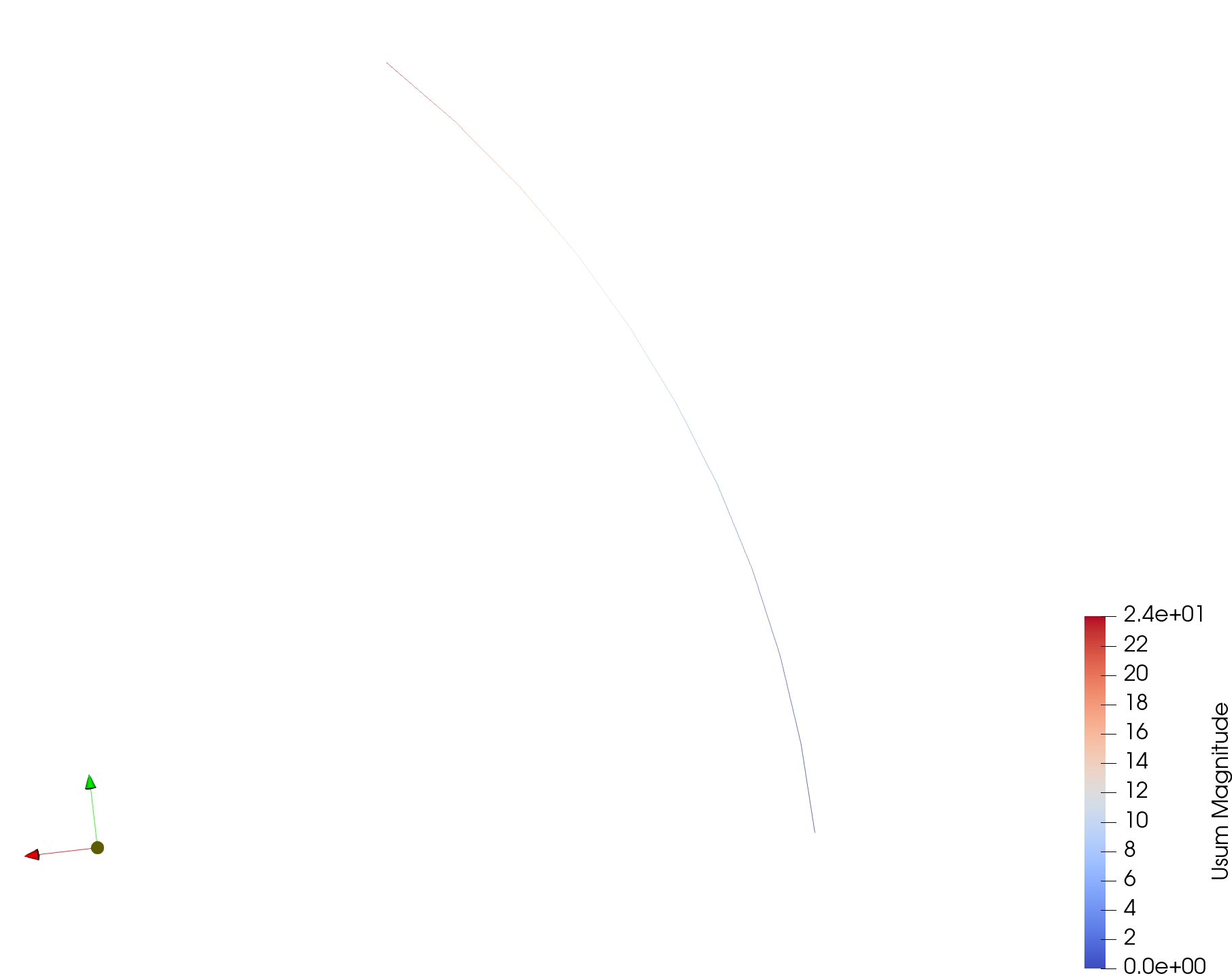

Beam4 45° curve beam (Flag=10)

% Create points
a=Point2D('Point1');
AddPoint(a,100,0);
% Create lines
b=Line2D('Line1');
b=AddCircle(b,100,a,1,'sang',180,'ang',-45,'seg',10);
Plot(b);
b=Meshoutput(b);
% Add assembly
Ass=Assembly('Curve_Beam');
pos=[0,0,0,-90,0,0];
Ass=AddPart(Ass,b.Meshoutput,'position',pos);
% Boundary
Ass=AddBoundary(Ass,1,'No',1);
Bound1=[1,1,1,1,1,1];
Ass=SetBoundaryType(Ass,1,Bound1);
% Material
mat.table=["EX",1.1e7;"GXY",1.5e6];
Ass=AddMaterial(Ass,mat);
Ass=SetMaterial(Ass,1,1);
% Element type
ET1.name='4';
ET1.opt=[];
ET1.R=[1,1/12,1/12,1,1];
Ass=AddET(Ass,ET1);
Ass=SetET(Ass,1,1);
% Load
Ass=AddLoad(Ass,1,'No',11);
Load1=[0,0,-300,0,0,0];
Ass=SetLoad(Ass,1,Load1);
Plot(Ass,'boundary',1,'load',1,'load_scale',0.1);
% Static analysis
opt.ANTYPE=0;
Ass=AddSolu(Ass,opt);
% Add sensor
Ass=AddSensor(Ass,'U',1);
% Output to ANSYS
ANSYS_Output(Ass);
if Cal
ANSYSSolve(Ass);
PlotSensor(Ass,1);
end

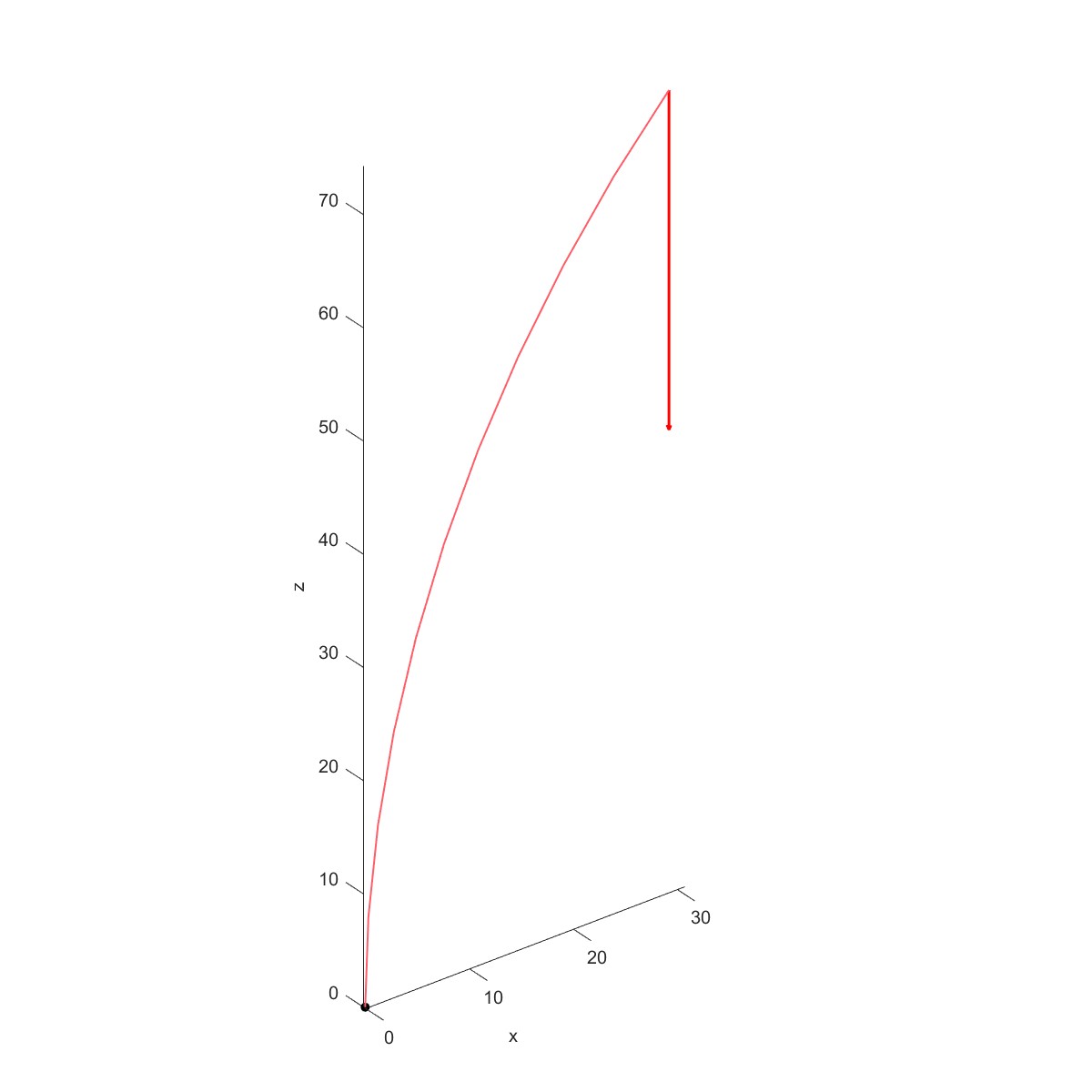

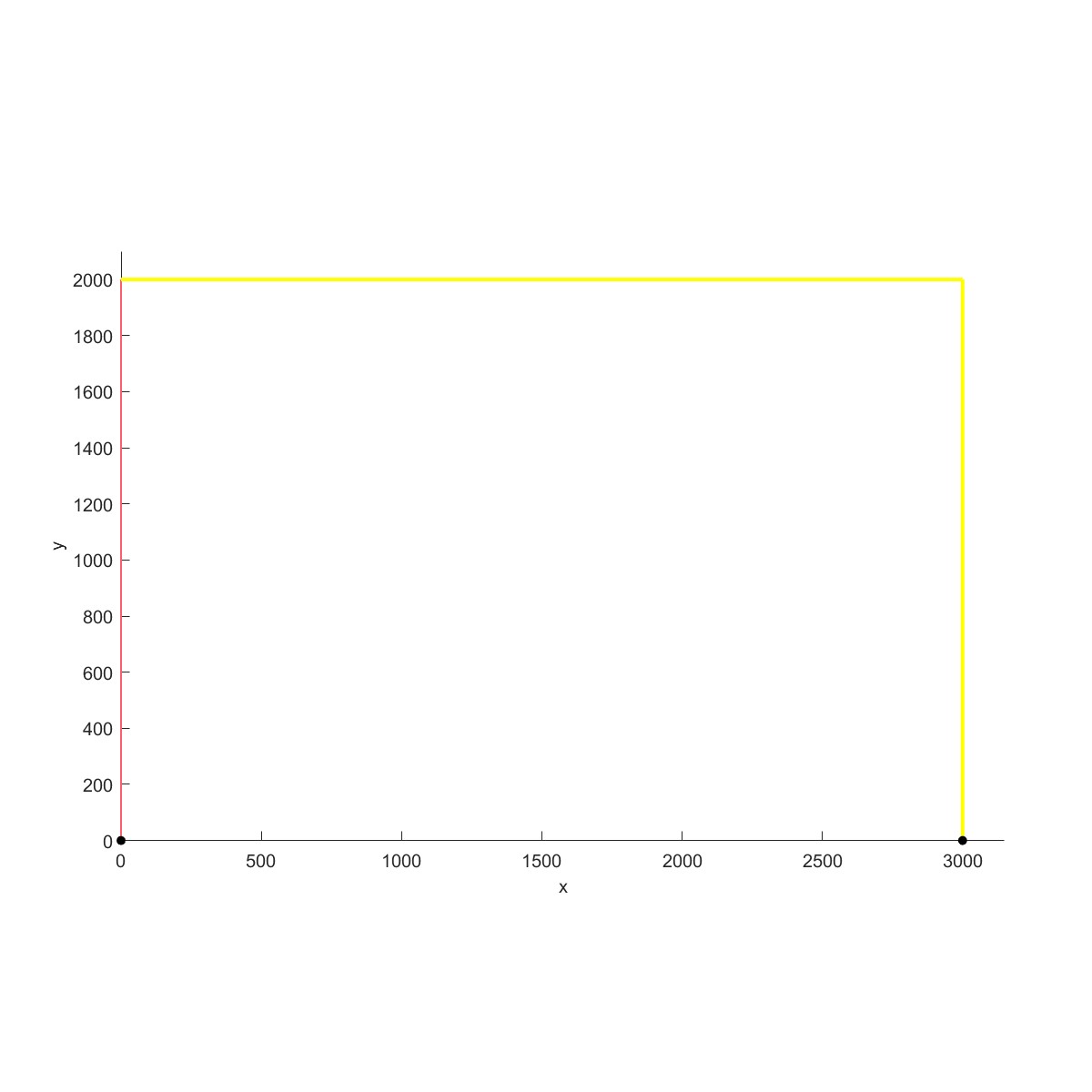

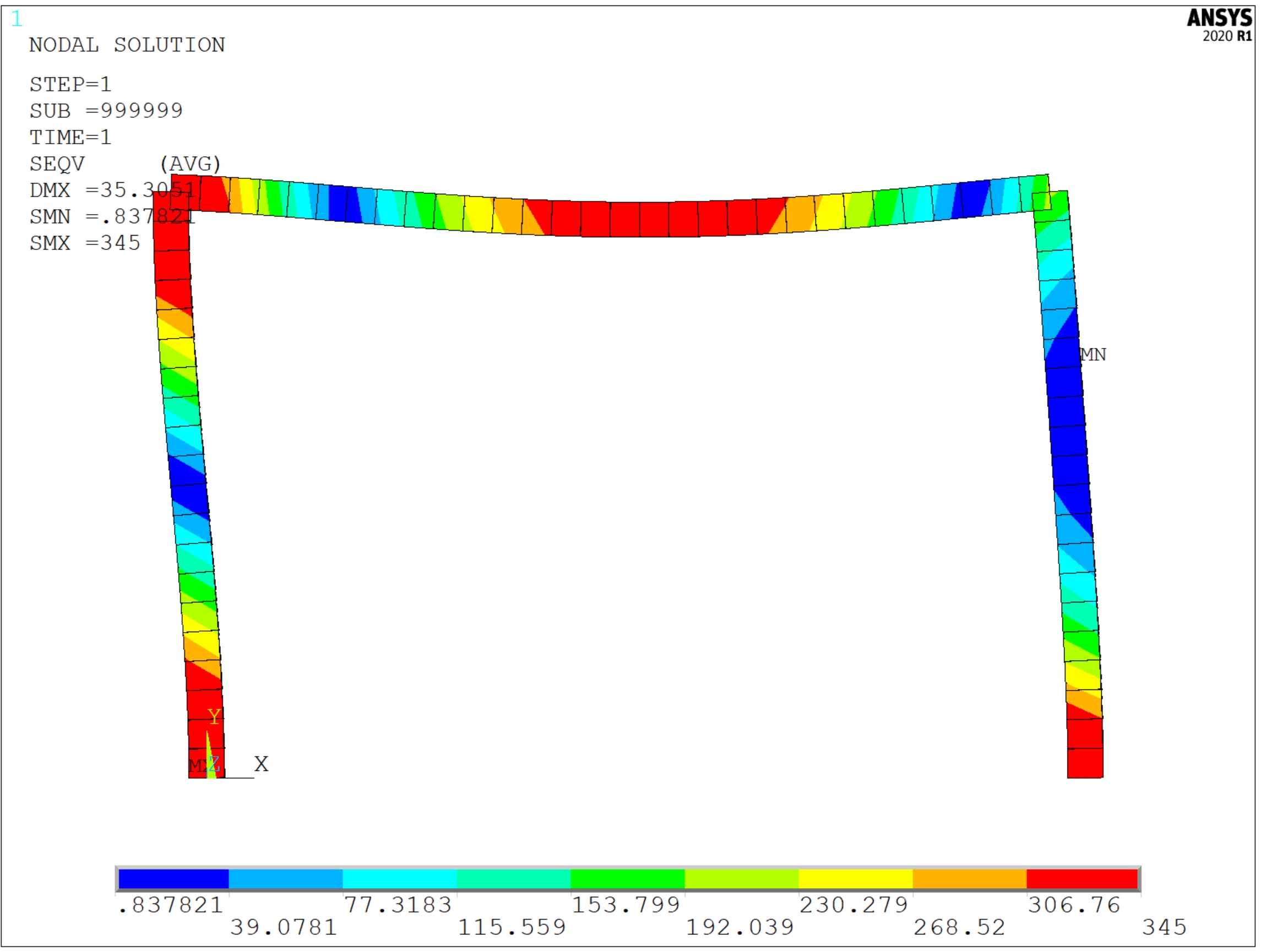

Beam23 Plastic analysis of single-story frame (Flag=11)

% Create points
a=Point2D('Point1');
a=AddPoint(a,zeros(21,1),(0:100:2000)');
a=AddPoint(a,(0:100:3000)',2000*ones(31,1));
a=AddPoint(a,3000*ones(21,1),(2000:-100:0)');
% Create lines
b=Line2D('Line1');
b=AddCurve(b,a,1);
b=AddCurve(b,a,2);
b=AddCurve(b,a,3);
Plot(b);
b=Meshoutput(b);
% Add assembly
Ass=Assembly('Single_story_Beam');
pos=[0,0,0,0,0,0];
Ass=AddPart(Ass,b.Meshoutput,'position',pos);
% Boundary
Ass=AddBoundary(Ass,1,'No',1);
Ass=AddBoundary(Ass,1,'No',71);
Bound1=[1,1,1,1,1,1];
Ass=SetBoundaryType(Ass,1,Bound1);
Ass=SetBoundaryType(Ass,2,Bound1);
% Material
mat.table=["EX",2.1e5;"PRXY",0.3];
mat.TBlab="BISO";
mat.TBtable=[345,0];
Ass=AddMaterial(Ass,mat);
Ass=SetMaterial(Ass,1,1);
% Element type
ET1.name='23';
ET1.opt=[];
ET1.R=[6000,50*120^3/12,120];
Ass=AddET(Ass,ET1);
Ass=SetET(Ass,1,1);
% Add SF
Ass=AddSF(Ass,1,(21:70)');
value1=[1,80];
Ass=SetSF(Ass,1,value1);
Plot(Ass,'boundary',1,...
'load',1,...
'load_scale',1,...
'view',[0,90]);
% Static analysis
opt.ANTYPE=0;
Ass=AddSolu(Ass,opt);
% Add sensor
Ass=AddSensor(Ass,'U',1);
% Output to ANSYS
ANSYS_Output(Ass);
if Cal
ANSYSSolve(Ass);
PlotSensor(Ass,1);
end

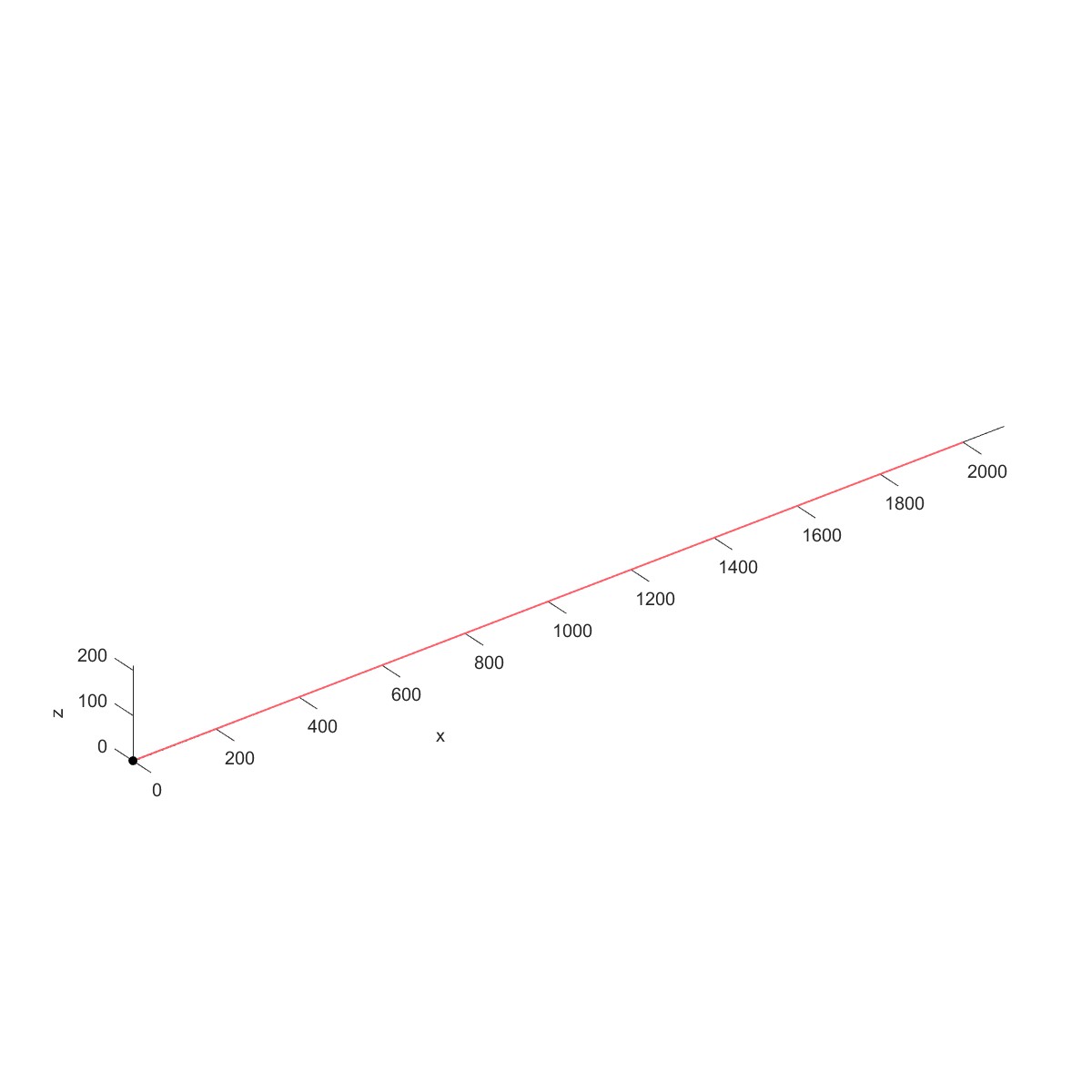

Beam24 Cross-section cantilever beam (Flag=12)

% Creat points
a=Point2D('Point1');
a=AddPoint(a,(0:200:2000)',zeros(11,1));
% Creat lines
b=Line2D('Line1');
b=AddCurve(b,a,1);
b=Meshoutput(b);
% Add assembly
Ass=Assembly('Cross-section_cantilever_beam');
pos=[0,0,0,0,0,0];
Ass=AddPart(Ass,b.Meshoutput,'position',pos);
% Boundary
Ass=AddBoundary(Ass,1,'No',1);
Bound1=[1,1,1,1,1,1];
Ass=SetBoundaryType(Ass,1,Bound1);
% Material
mat.table=["EX",2.1e5;"PRXY",0.3];
Ass=AddMaterial(Ass,mat);
Ass=SetMaterial(Ass,1,1);
% Element type
ET1.name='24';
ET1.opt=[1,1;3,1;6,1];
ET1.R=[0,0,0,0,112,20,-60,112,16,0,112,0,0,200,20,0,112,0,140,112,16];
Ass=BeamK(Ass,1);
Ass=AddET(Ass,ET1);
Ass=SetET(Ass,1,1);
% Add load
Ass=AddLoad(Ass,1,'No',11);
Load1=[0,-1e4,0,0,0,0];
Ass=SetLoad(Ass,1,Load1);
Plot(Ass,'boundary',1,'load',1,'load_scale',1);
% Static analysis
opt.ANTYPE=0;
Ass=AddSolu(Ass,opt);
% Add sensor
Ass=AddSensor(Ass,'U',1);
% Output to ANSYS
ANSYS_Output(Ass);
if Cal
ANSYSSolve(Ass);
PlotSensor(Ass,1);
end

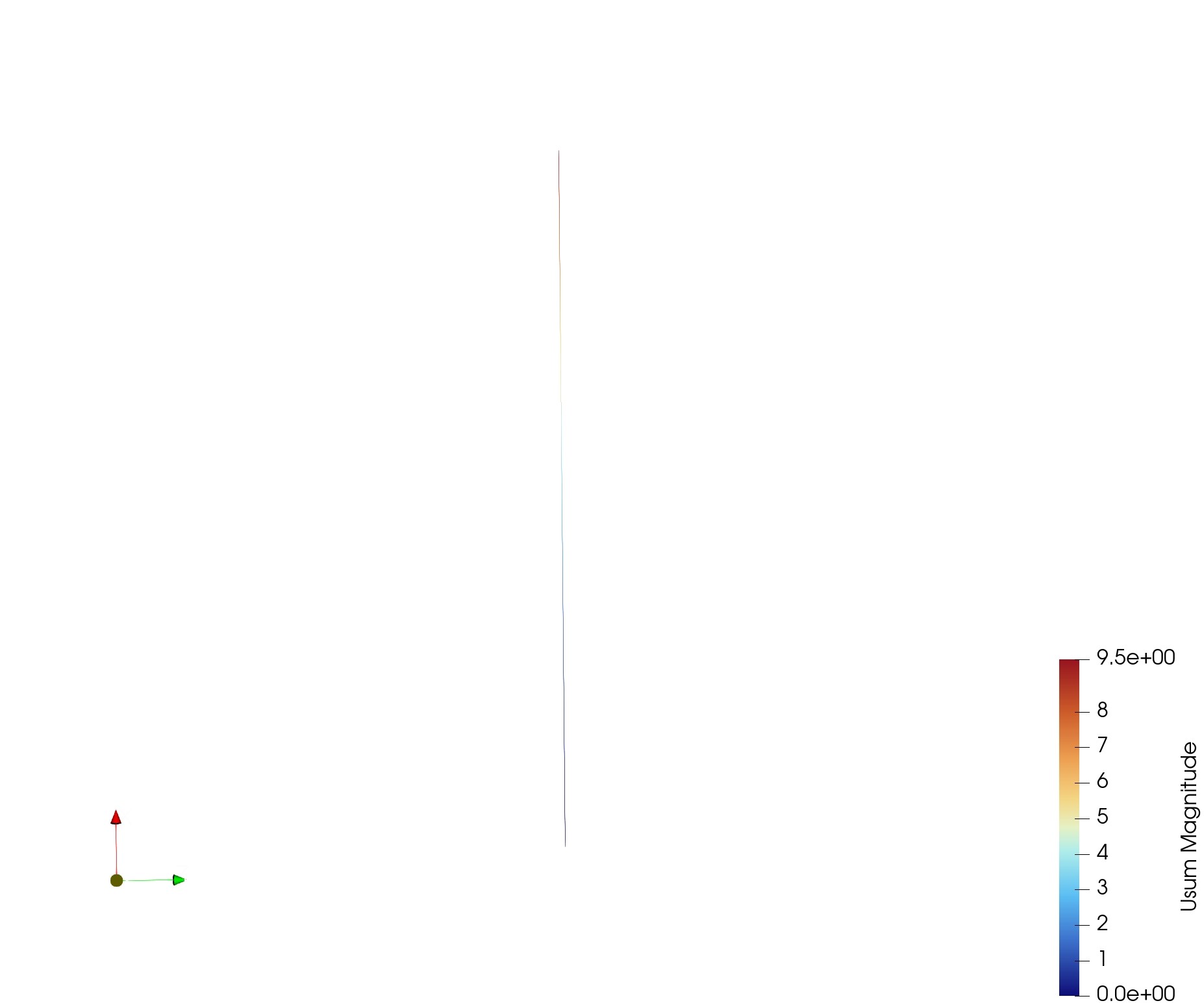

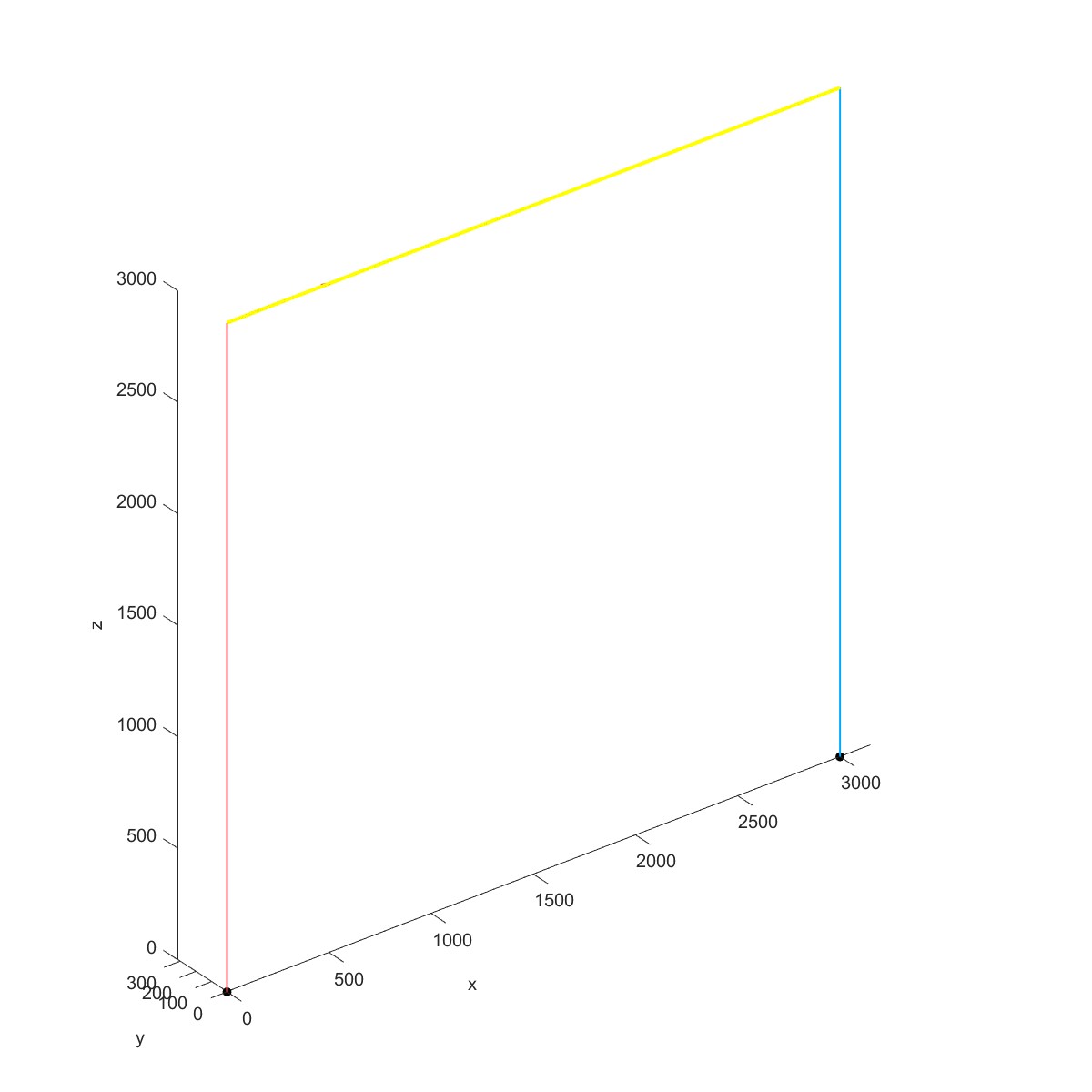

Beam24 biaxially symmetrical I-beam rigid frame (Flag=13)

% Create points
a=Point2D('Point1');
a=AddPoint(a,zeros(11,1),(0:300:3000)');
a=AddPoint(a,(0:300:3000)',3000*ones(11,1));
a=AddPoint(a,3000*ones(11,1),(0:300:3000)');
% Creat lines
b1=Line2D('Line1');
b1=AddCurve(b1,a,1);
b1=AddCurve(b1,a,2);
b1=AddCurve(b1,a,3);
b1=Meshoutput(b1);
% Add assembly
Ass=Assembly('biaxially_symmetrical_frame');
pos=[0,0,0,-90,0,0];
Ass=AddPart(Ass,b1.Meshoutput,'position',pos);
% Boundary
Ass=AddBoundary(Ass,1,'No',1);
Ass=AddBoundary(Ass,1,'No',22);
Bound1=[1,1,1,1,1,1];
Ass=SetBoundaryType(Ass,1,Bound1);
Ass=SetBoundaryType(Ass,2,Bound1);
% Material
mat.table=["EX",2.1e5;"PRXY",0.3];
Ass=AddMaterial(Ass,mat);
Ass=SetMaterial(Ass,1,1);
% Add load
Ass=AddLoad(Ass,1,'No',11);
Load1=[50000,0,0,0,0,0];
Ass=SetLoad(Ass,1,Load1);
% Element type
ET1.name='24';
ET1.opt=[];
ET1.R=[-92,142,0,92,142,20,92,-142,20,-92,-142,20,-92,142,20];
ET2.name='24';
ET2.opt=[];
ET2.R=[-140,-100,0,-140,100,20,-140,0,0,140,0,16,140,100,0,140,-100,20];
Ass=BeamK(Ass,1);
Ass=AddET(Ass,ET1);
Ass=AddET(Ass,ET2);
% Divide part
Matrix{1,1}=(1:10)';
Matrix{2,1}=(11:20)';
Matrix{3,1}=(21:30)';
Ass=DividePart(Ass,1,Matrix);
Ass=SetET(Ass,1,2);
Ass=SetET(Ass,2,1);
Ass=SetET(Ass,3,2);
% Add SF
Ass=AddSF(Ass,2,(1:10)');
value1=[1,300];
Ass=SetSF(Ass,1,value1);
Plot(Ass,'boundary',1,...
'load',1,'load_scale',0.01,...
'zlim',[0,3000]);
% Static analysis
opt.ANTYPE=0;
Ass=AddSolu(Ass,opt);
% Add sensor
Ass=AddSensor(Ass,'U',1);
% Output to ANSYS
ANSYS_Output(Ass);
if Cal
ANSYSSolve(Ass);
PlotSensor(Ass,1);
end

Beam44 Stress analysis of simply supported beam with Z-shaped section (Flag=14)

% Create points
a=Point2D('Point1');
a=AddPoint(a,(0:200:2400)',zeros(13,1));
% Create lines
b=Line2D('Line1');
b=AddCurve(b,a,1);
b=Meshoutput(b);
% Add assembly
Ass=Assembly('Z-shaped_section_beam');
pos=[0,0,0,0,0,0];
Ass=AddPart(Ass,b.Meshoutput,'position',pos);
% Boundary
Ass=AddBoundary(Ass,1,'No',1);
Ass=AddBoundary(Ass,1,'No',13);
Bound1=[1,1,1,1,0,0];
Bound2=[0,1,1,1,0,0];
Ass=SetBoundaryType(Ass,1,Bound1);
Ass=SetBoundaryType(Ass,2,Bound2);
% Material
mat.table=["EX",2.06e5;"PRXY",0.3];
Ass=AddMaterial(Ass,mat);
Ass=SetMaterial(Ass,1,1);
% Element type
ET1.name='44';
ET1.opt=[];
ET1.R=[];
Ass=BeamK(Ass,1);
Ass=AddET(Ass,ET1);
Ass=SetET(Ass,1,1);
% Section
Sec.type="beam";
Sec.subtype="Z";
Sec.data=[35,35,50,5,5,5];
Ass=AddSection(Ass,Sec);
Ass=SetSection(Ass,1,1);
% Add load
Ass=AddLoad(Ass,1,'No',5);
Load1=[0,0,880,0,0,0];
Ass=SetLoad(Ass,1,Load1);
Plot(Ass,'boundary',1,'load',1,'load_scale',0.1,'BeamGeom',1,'ylim',[-40,40]);
% Static analysis
opt.ANTYPE=0;
Ass=AddSolu(Ass,opt);
% Add sensor
Ass=AddSensor(Ass,'U',1);
% Output to ANSYS
ANSYS_Output(Ass);
if Cal
ANSYSSolve(Ass);
PlotSensor(Ass,1);
end

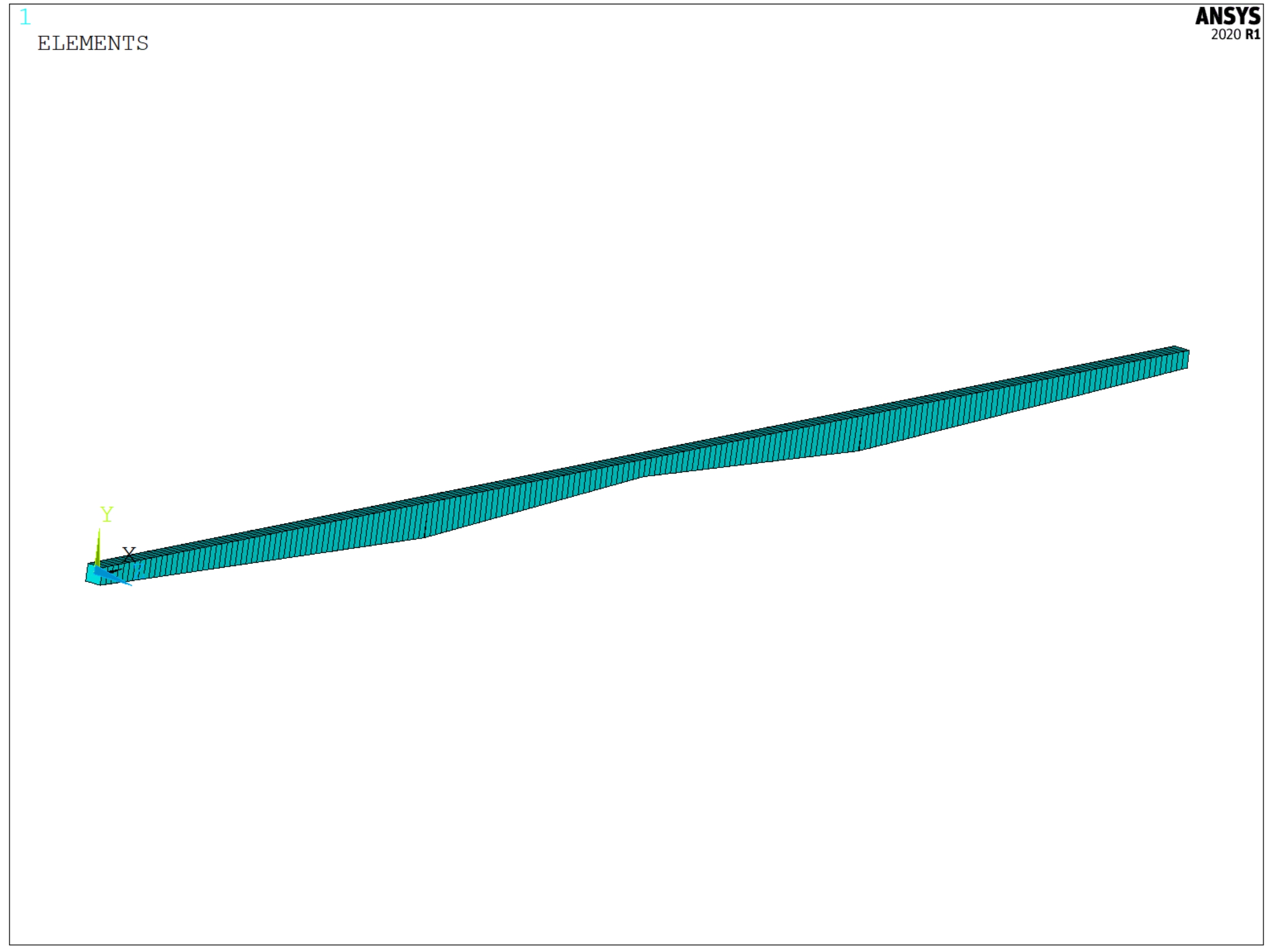

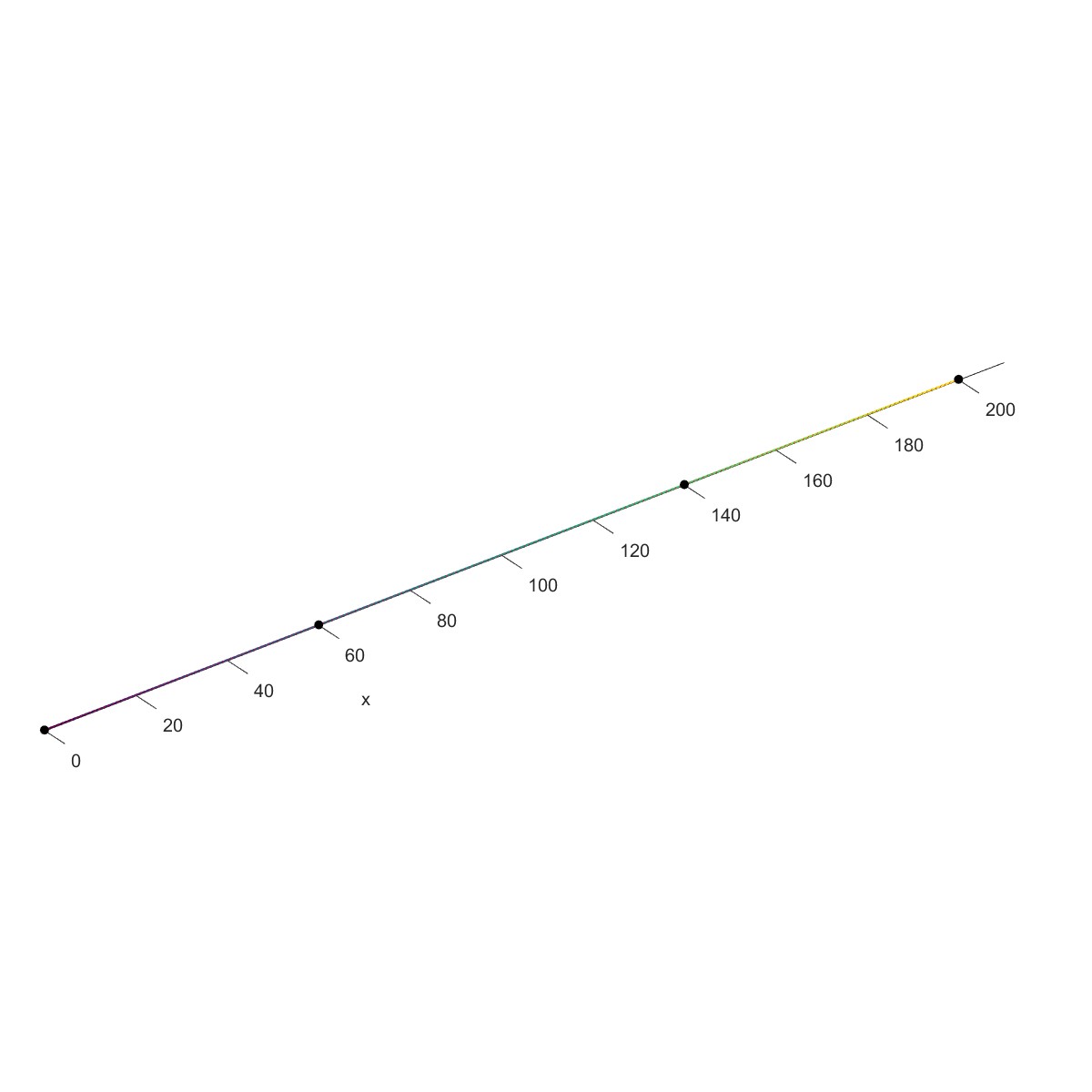

### Beam54 Three-span continuous beam with variable section (Flag=15)
% Create points
a=Point2D('Point1');
a=AddPoint(a,(0:1:200)',zeros(201,1));
% Create lines
b=Line2D('Line1');
b=AddCurve(b,a,1);
Plot(b);
b=Meshoutput(b);
% Add assembly
Ass=Assembly('Variable_section_beam');
pos=[0,0,0,0,0,0];
Ass=AddPart(Ass,b.Meshoutput,'position',pos);
% Boundary
Ass=AddBoundary(Ass,1,'No',1);
Ass=AddBoundary(Ass,1,'No',61);
Ass=AddBoundary(Ass,1,'No',141);
Ass=AddBoundary(Ass,1,'No',201);
Bound1=[1,1,0,0,0,0];
Bound2=[0,1,0,0,0,0];
Ass=SetBoundaryType(Ass,1,Bound2);
Ass=SetBoundaryType(Ass,2,Bound1);
Ass=SetBoundaryType(Ass,3,Bound2);
Ass=SetBoundaryType(Ass,4,Bound2);
% Material
mat.table=["EX",3.5e10;"PRXY",0.2];
Ass=AddMaterial(Ass,mat);
Ass=SetMaterial(Ass,1,1);
% Add load
Ass=AddLoad(Ass,1,'No',(1:201)');
Load1=[0,-1,0,0,0,0];
Ass=SetLoad(Ass,1,Load1);
% Divide part
Temp=1:200;
Matrix=num2cell(Temp');
Ass=DividePart(Ass,1,Matrix);
% Element type
b=2;
h1=2:2/60:4-2/60;
h2=4:-2/40:2+2/40;
h3=2:2/40:4-2/40;
h4=4:-2/60:2+2/60;
H1=[h1 h2 h3 h4];
H2=[H1(2:end),2];
Area1=H1.*b;
Area2=H2.*b;
Iz1=b.*H1.^3/12;
Iz2=b.*H2.^3/12;
Hyt1=H1/2;
Hyt2=H2/2;
Hyb1=H1/2;
Hyb2=H2/2;
Dy1=-H1/2+1;
Dy2=-H2/2+1;
for i=1:200
ET.name='54';
ET.opt=[];
ET.R=[Area1(i),Iz1(i),Hyt1(i),Hyb1(i),...
Area2(i),Iz2(i),Hyt2(i),Hyb2(i),...
0,Dy1(i),0,Dy2(i)];
Ass=AddET(Ass,ET);
Ass=SetET(Ass,i,i);
end
Plot(Ass,'boundary',1,'load',1,'load_scale',0.1);
% Static analysis
opt.ANTYPE=0;
Ass=AddSolu(Ass,opt);
% Add sensor
Ass=AddSensor(Ass,'U',1);
% Output to ANSYS
ANSYS_Output(Ass);
if Cal
ANSYSSolve(Ass);
PlotSensor(Ass,1);
end

Beam188 I-shaped section cantilever beam (Flag=16)

% Create points
a=Point2D('Point1');
a=AddPoint(a,(0:100:2000)',zeros(21,1));
% Create lines
b=Line2D('Line1');
b=AddCurve(b,a,1);
b=Meshoutput(b);
% Add assembly
Ass=Assembly('I-shaped_section_beam');
pos=[0,0,0,-90,0,0];
Ass=AddPart(Ass,b.Meshoutput,'position',pos);
% Boundary
Ass=AddBoundary(Ass,1,'No',1);
Bound1=[1,1,1,1,1,1];
Ass=SetBoundaryType(Ass,1,Bound1);
% Material
mat.table=["EX",2.1e5;"PRXY",0.3];
Ass=AddMaterial(Ass,mat);
Ass=SetMaterial(Ass,1,1);
% Add load
Ass=AddLoad(Ass,1,'No',21);
Load1=[0,-5e4,-2e4,0,0,0];
Ass=SetLoad(Ass,1,Load1);
% Element type
ET.name='188';
ET.opt=[4,2];
ET.R=[];
Ass=AddET(Ass,ET);
Ass=SetET(Ass,1,1);
% Section
Sec.type="beam";
Sec.subtype="I";
Sec.data=[200,200,300,16,16,12];
Ass=AddSection(Ass,Sec);
Ass=SetSection(Ass,1,1);
Ass=BeamK(Ass,1);
Plot(Ass,'boundary',1,'load',1,'load_scale',0.02,'ylim',[-200,400],'zlim',[-300,300],'BeamGeom',1);
% Static analysis
opt.ANTYPE=0;
Ass=AddSolu(Ass,opt);
% Add sensor
Ass=AddSensor(Ass,'U',1);
% Output to ANSYS
ANSYS_Output(Ass);
if Cal
ANSYSSolve(Ass);
PlotSensor(Ass,1);
end

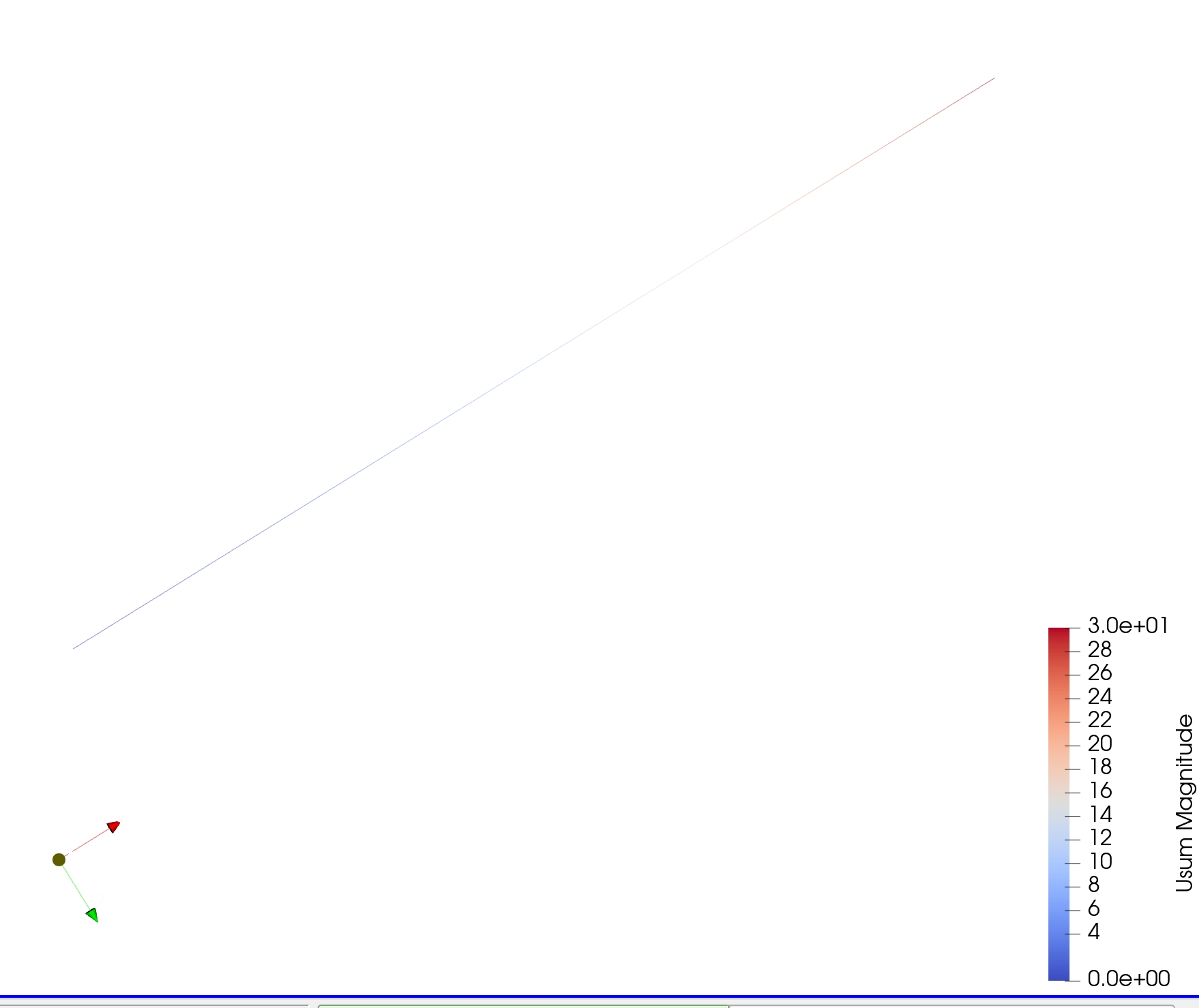

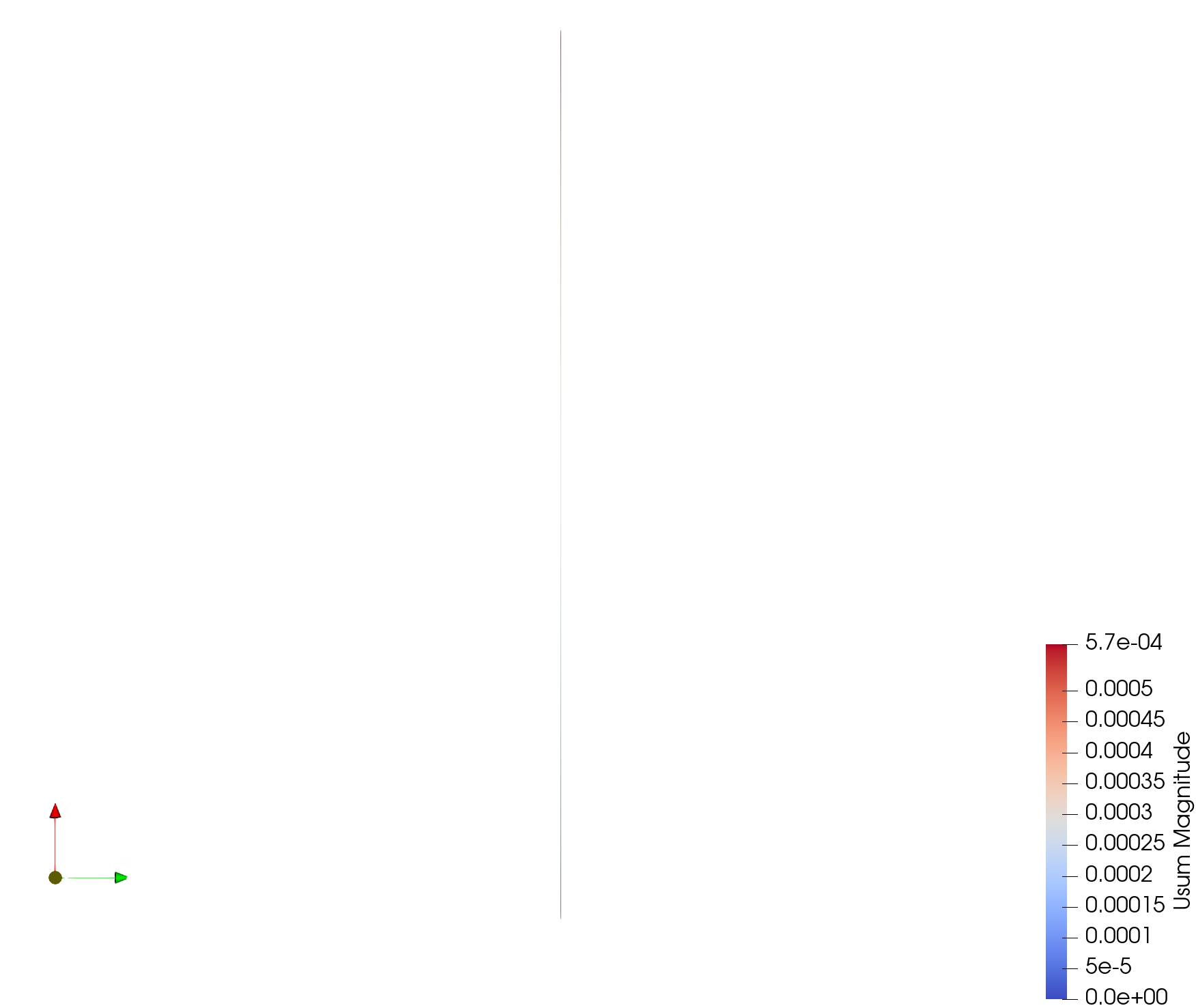

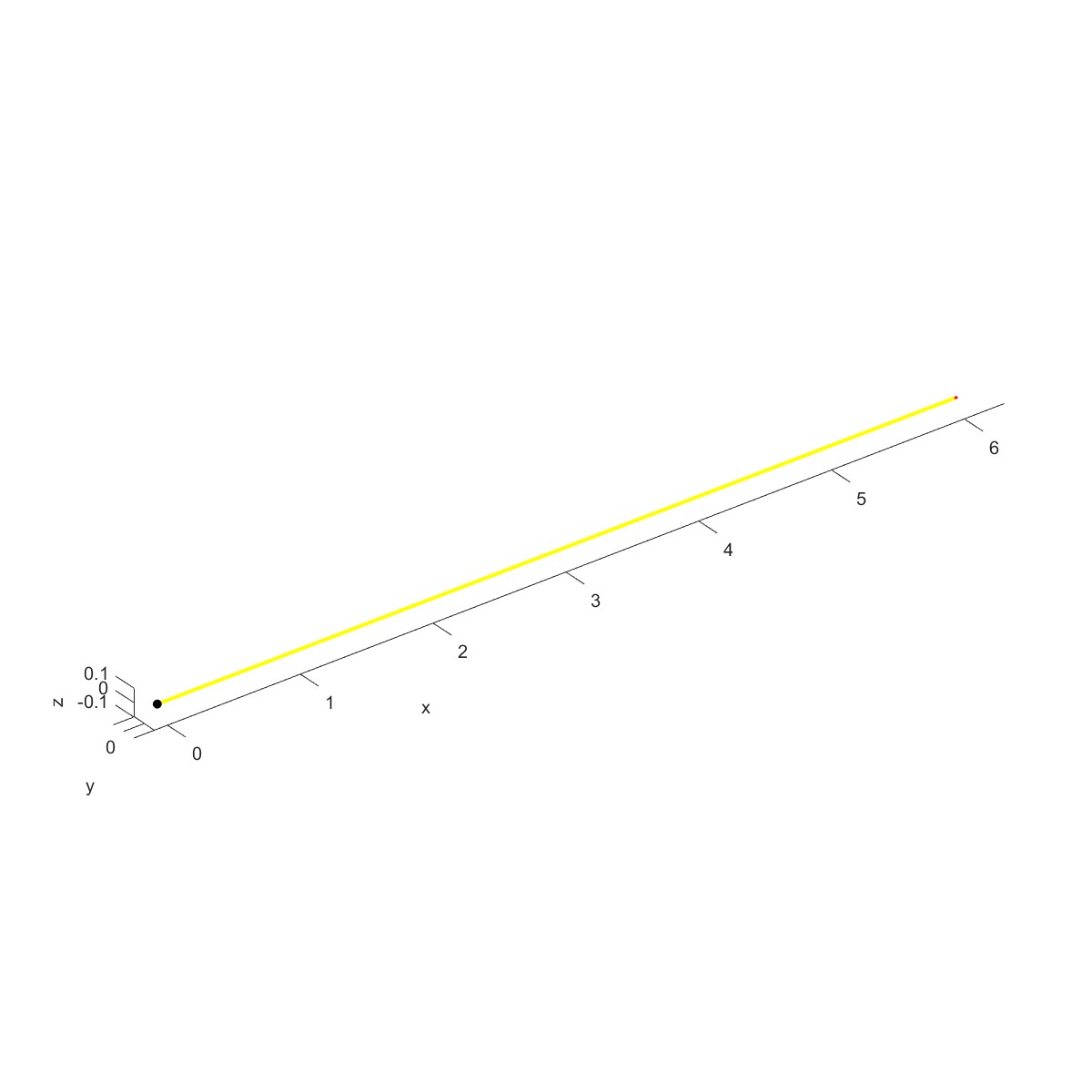

Pipe16 Static calculation of cantilever tube (Flag=17)

% Create points
a=Point2D('Point1');
a=AddPoint(a,(0:0.1:6)',zeros(61,1));
% Create lines
b=Line2D('Line1');
b=AddCurve(b,a,1);
b=Meshoutput(b);
% Add assembly
Ass=Assembly('Cantilever_tube');
Ass=AddPart(Ass,b.Meshoutput);
% Boundary
Ass=AddBoundary(Ass,1,'No',1);
Bound1=[1,1,1,1,1,1];
Ass=SetBoundaryType(Ass,1,Bound1);
% Material
mat.table=["EX",2.1e11;"PRXY",0.3;"DENS",7800];
Ass=AddMaterial(Ass,mat);
Ass=SetMaterial(Ass,1,1);
% Add load
Ass=AddLoad(Ass,1,'No',61);
Load1=[-1e6,0,0,4e5,0,0];
Ass=SetLoad(Ass,1,Load1);
% Add SF
Ass=AddSF(Ass,1,(1:60)','type','SFE');
Ass=AddSF(Ass,1,(1:60)','type','SFE');
value1=[3,0,-5e4];
value2=[4,0,4e4];
Ass=SetSF(Ass,1,value1);
Ass=SetSF(Ass,2,value2);
% Element type
ET.name='16';
ET.opt=[];
ET.R=[0.6,0.016,0,0,0,1000,2500,0.05];
Ass=AddET(Ass,ET);
Ass=SetET(Ass,1,1);
Plot(Ass,'boundary',1,'load',1,'load_scale',0.1);
% Static analysis
opt.ANTYPE=0;
Ass=AddSolu(Ass,opt);
% Add sensor
Ass=AddSensor(Ass,'U',1);
% Output to ANSYS
ANSYS_Output(Ass);
if Cal
ANSYSSolve(Ass);
PlotSensor(Ass,1);
end
end

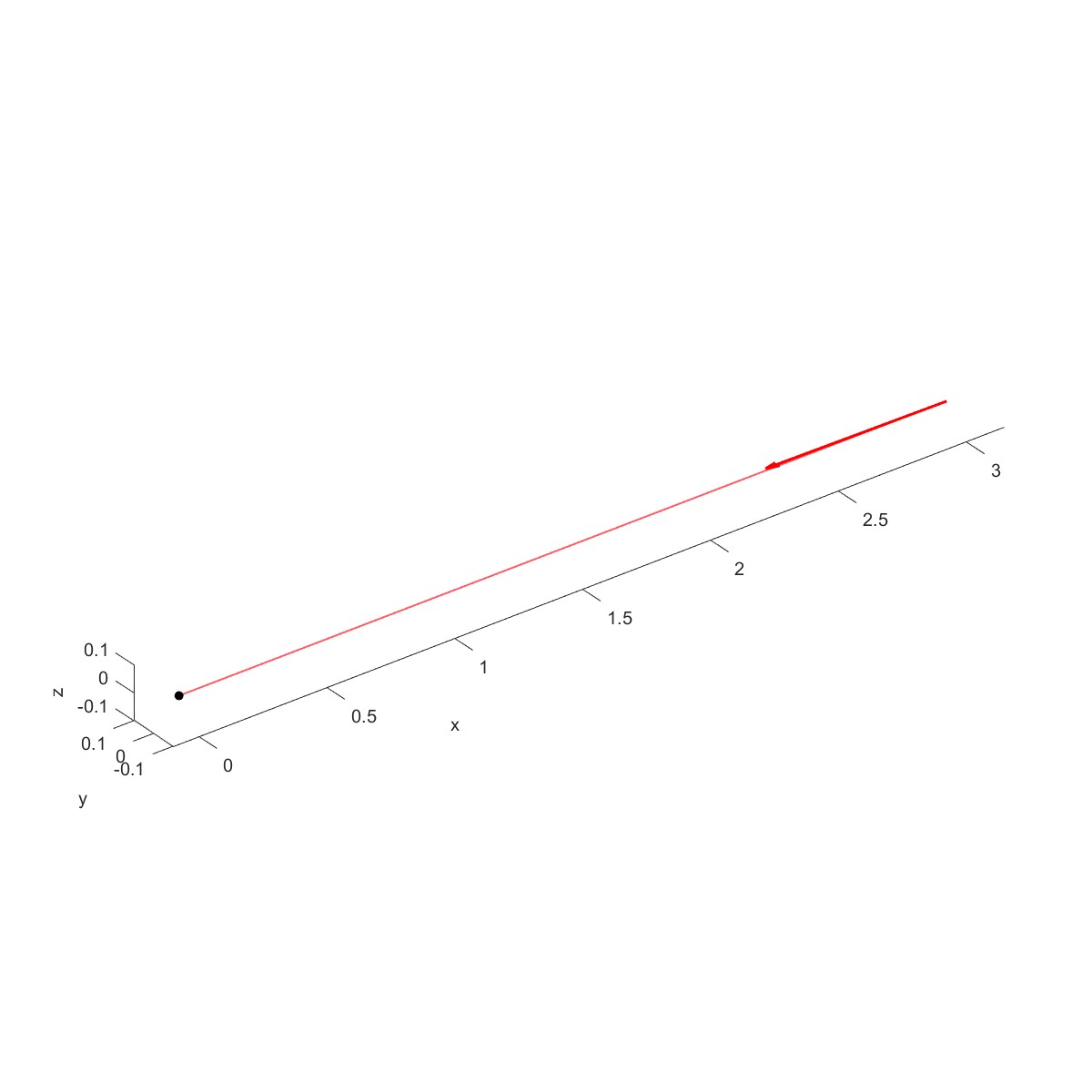

Pipe20 Steel pipe plastic analysis (Flag=18)

% Create points
a=Point2D('Point1');
a=AddPoint(a,(0:0.1:3)',zeros(31,1));
% Create lines
b=Line2D('Line1');
b=AddCurve(b,a,1);
b=Meshoutput(b);
% Add assembly
Ass=Assembly('Plastic_tube');
Ass=AddPart(Ass,b.Meshoutput);
% Boundary
Ass=AddBoundary(Ass,1,'No',1);
Bound1=[1,1,1,1,1,1];
Ass=SetBoundaryType(Ass,1,Bound1);
% Material
mat.table=["EX",2.1e11;"PRXY",0.3;"DENS",7800];
mat.TBlab="BKIN";
mat.TBtable=[235e6,0];
Ass=AddMaterial(Ass,mat);
Ass=SetMaterial(Ass,1,1);
% Add load
Ass=AddLoad(Ass,1,'No',31);
Load1=[-7e5,1e4,0,0,0,0];
Ass=SetLoad(Ass,1,Load1);
% Element type
ET.name='20';
ET.opt=[];
ET.R=[0.2,0.005];
Ass=AddET(Ass,ET);
Ass=SetET(Ass,1,1);
Plot(Ass,'boundary',1,'load',1,'load_scale',0.000001);
% Static analysis
opt.ANTYPE=0;
opt.NLGEOM=1;
opt.NSUBST=50;
opt.ARCLEN=[1,5];
Ass=AddSolu(Ass,opt);
% Add sensor
Ass=AddSensor(Ass,'U',1);
% Output to ANSYS
ANSYS_Output(Ass);
if Cal
ANSYSSolve(Ass);
PlotSensor(Ass,1);
end

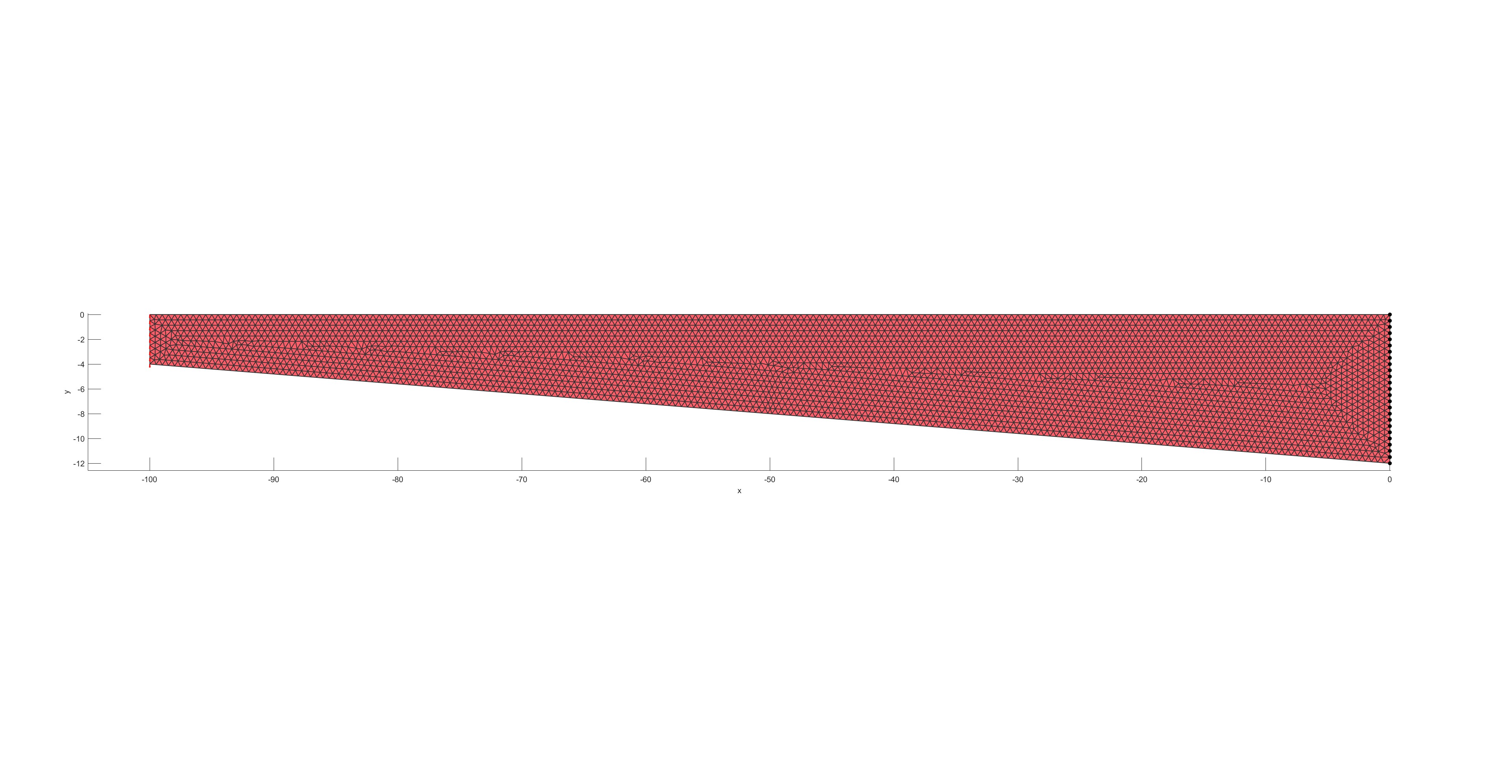

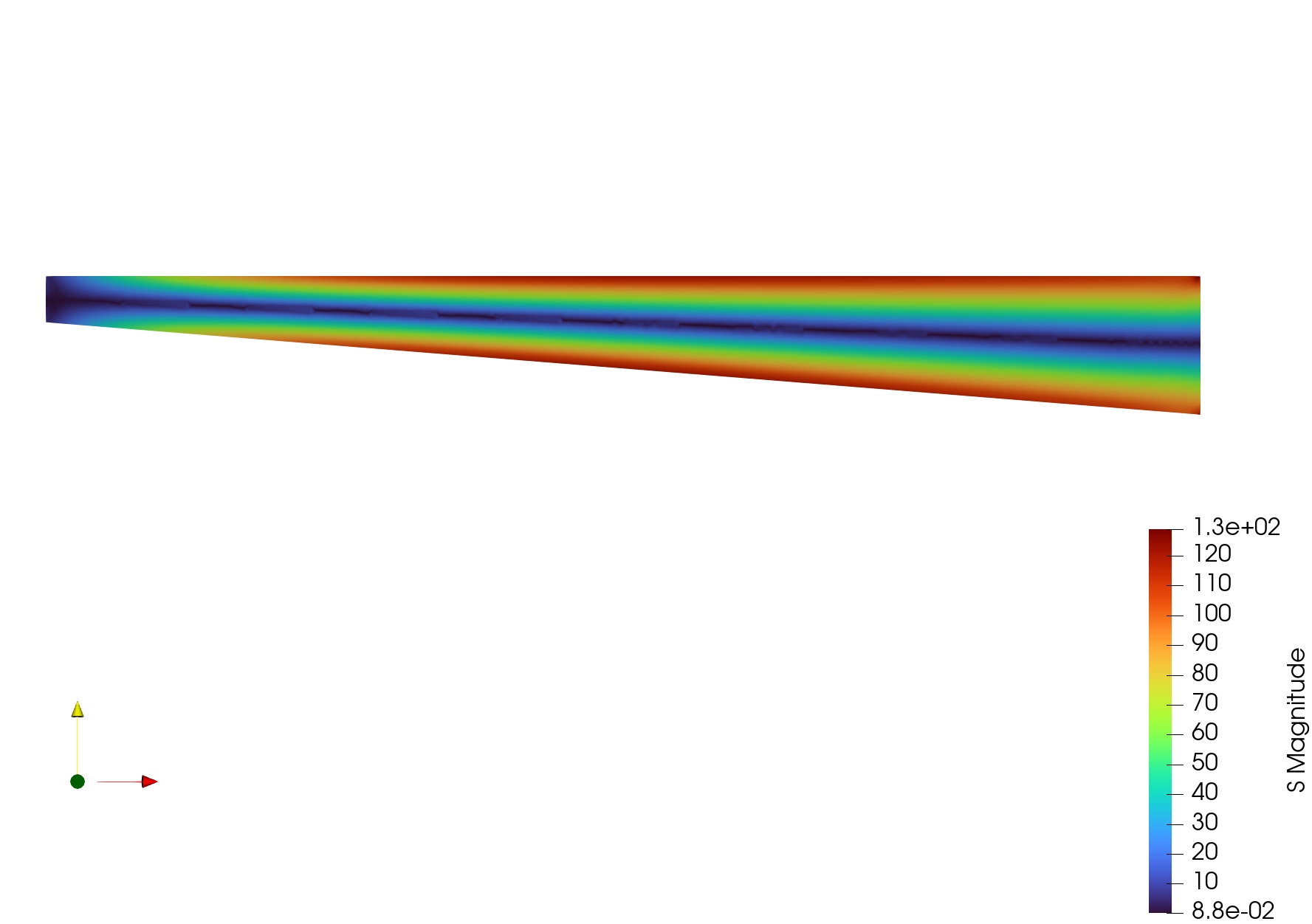

Plane42 Variable section beam (Flag=19)

% Create points
a=Point2D('Point1');
a=AddPoint(a,[0;0;-100;-100;0],[0;-12;-4;0;0]);
% Create lines
b=Line2D('Line1');
b=AddCurve(b,a,1);
% Create surface2D
S=Surface2D(b);
% Create Mehs2D
m=Mesh2D('Variable section beam');
m=AddSurface(m,S);
m=SetSize(m,0.5);
m=Mesh(m);
Plot(m);
% Add assembly
Ass=Assembly('Variable_section_beam');
Ass=AddPart(Ass,m.Meshoutput);
% Boundary
Ass=AddBoundary(Ass,1,'locx',0);
Bound1=[1,1,0,0,0,0];
Ass=SetBoundaryType(Ass,1,Bound1);
% Material
mat.table=["EX",2.1e11;"PRXY",0.3;"DENS",7800];
Ass=AddMaterial(Ass,mat);
Ass=SetMaterial(Ass,1,1);
% Add load
Ass=AddLoad(Ass,1,'locx',-100);
Load1=[0,-80,0,0,0,0];
Ass=SetLoad(Ass,1,Load1);
% Element type
ET.name='42';
ET.opt=[3,3;6,2];
ET.R=3;
Ass=AddET(Ass,ET);
Ass=SetET(Ass,1,1);
Plot(Ass,'boundary',1,...
'load',1,'load_scale',0.2,...
'view',[0,90]);
% Static analysis
opt.ANTYPE=0;
Ass=AddSolu(Ass,opt);
% Add sensor
Ass=AddSensor(Ass,'U',1);
Ass=AddSensor(Ass,'Stress',1);
% Output to ANSYS
ANSYS_Output(Ass);
if Cal
ANSYSSolve(Ass);
PlotSensor(Ass,1);
PlotSensor(Ass,2);
end

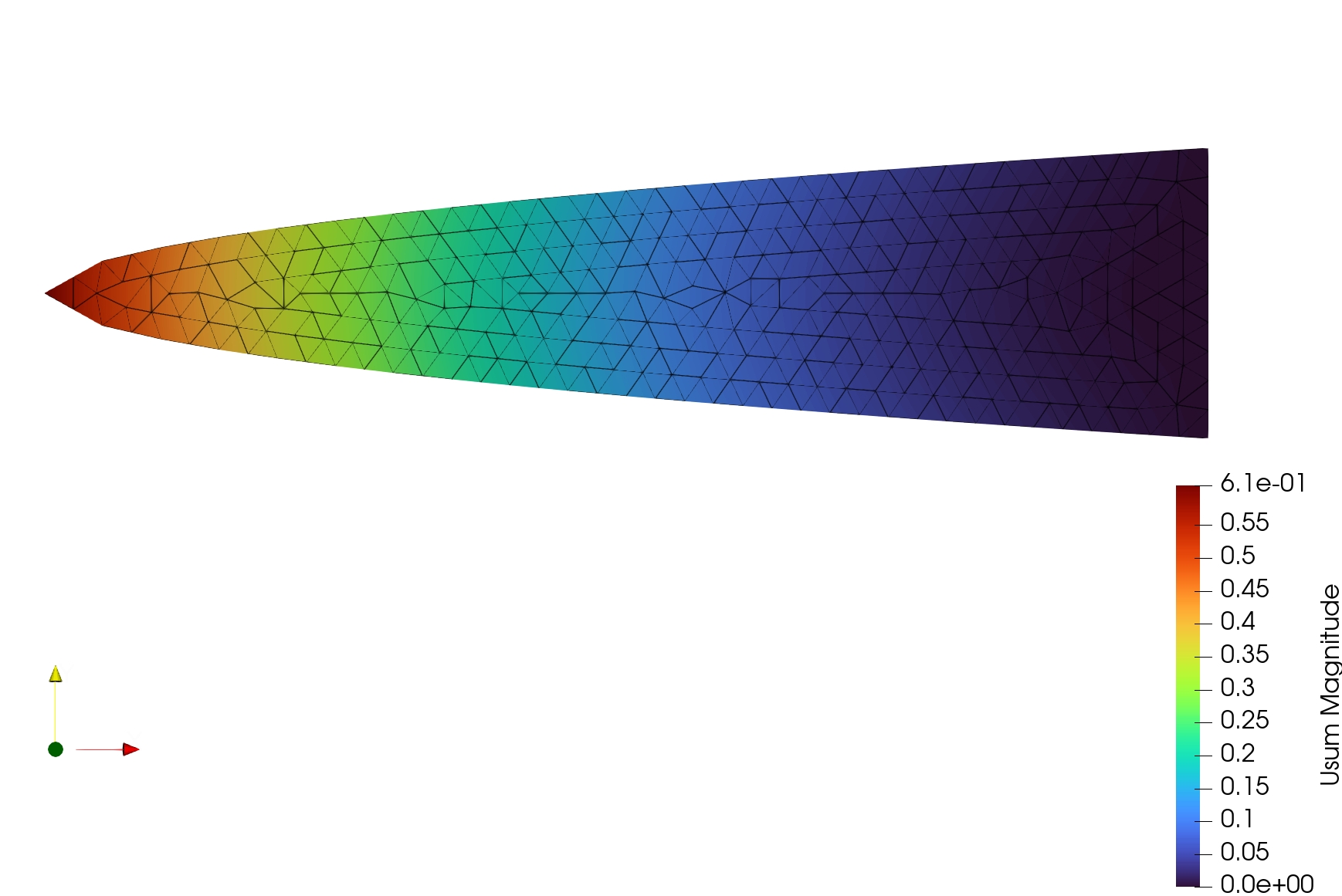

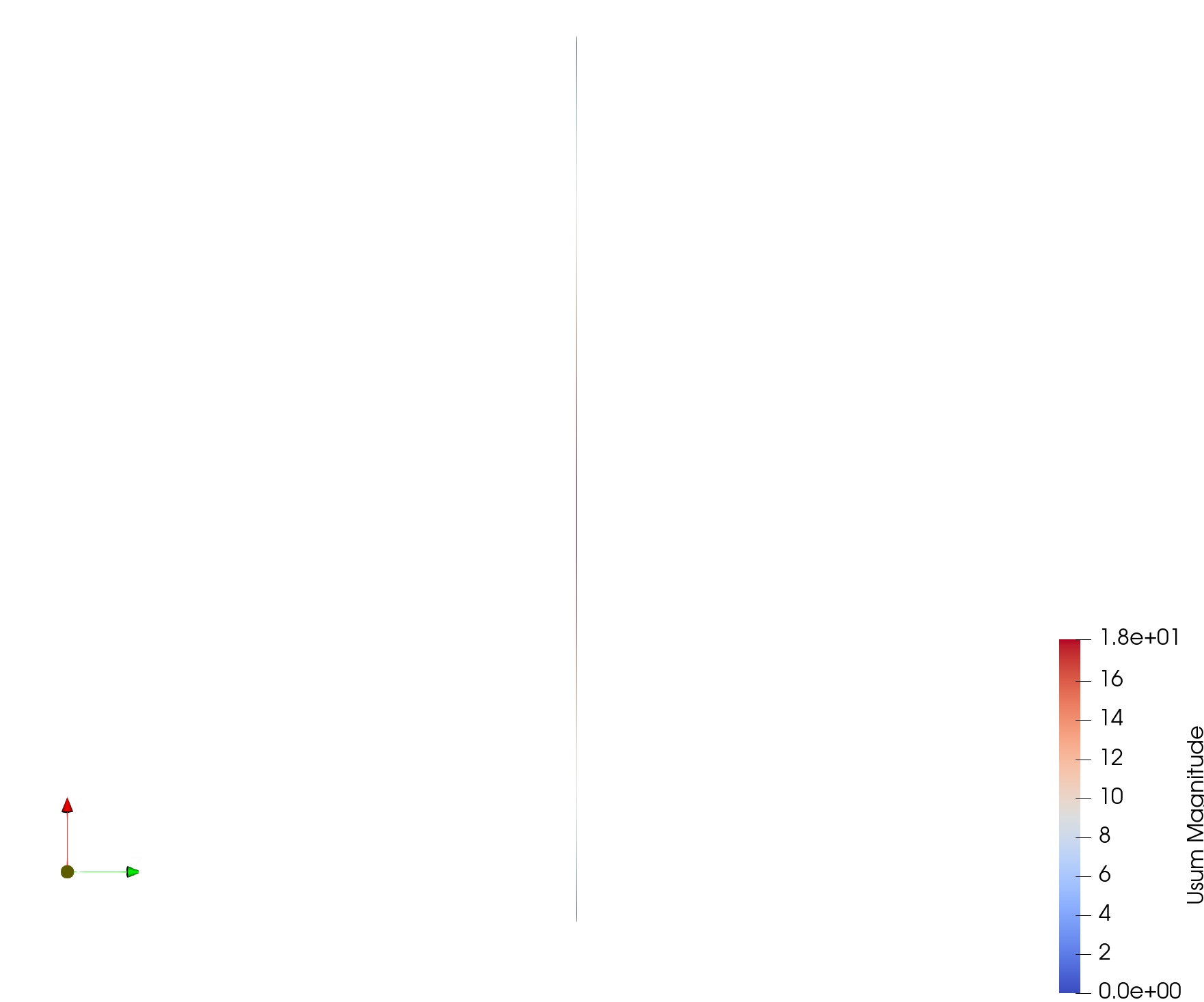

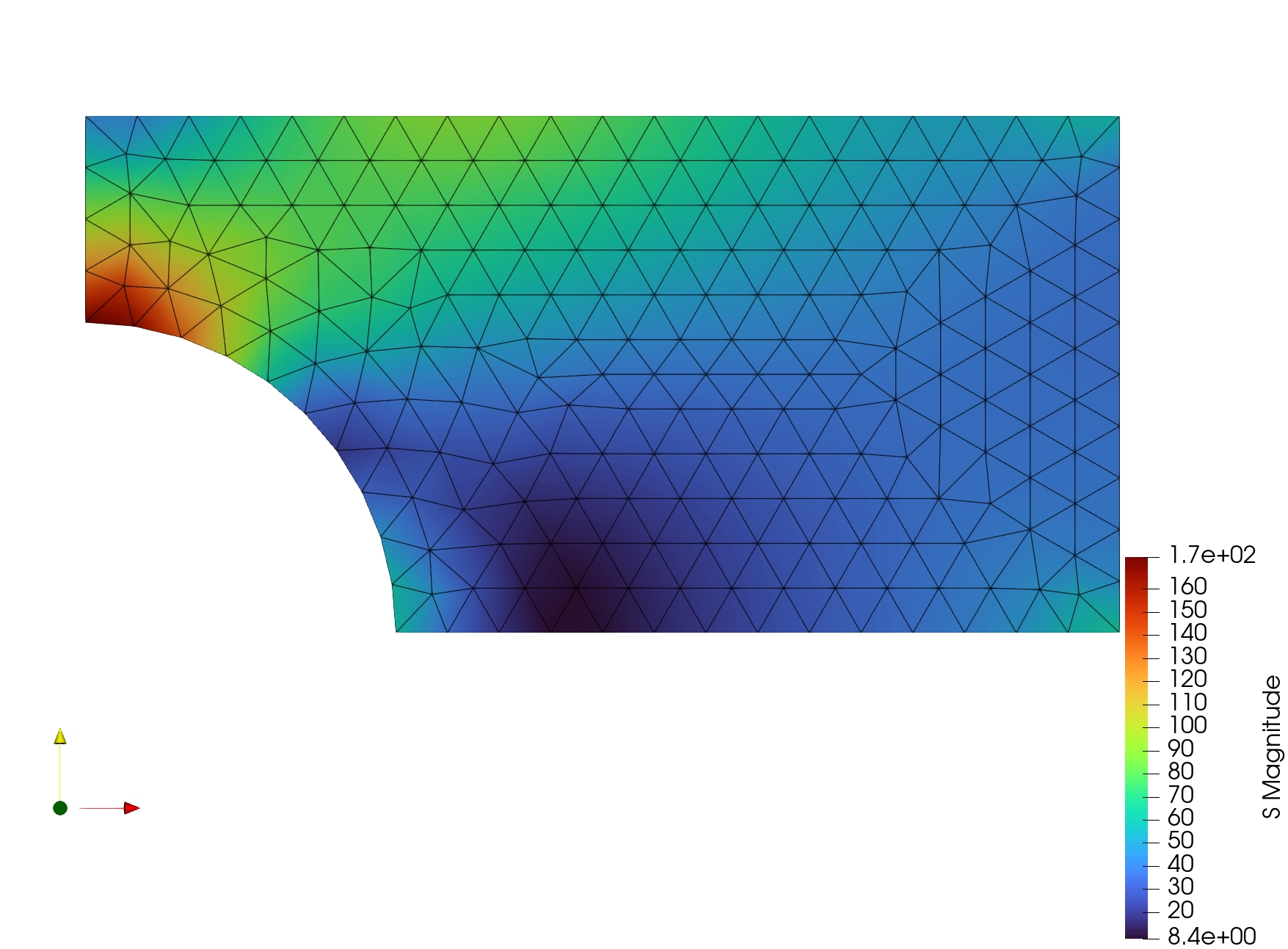

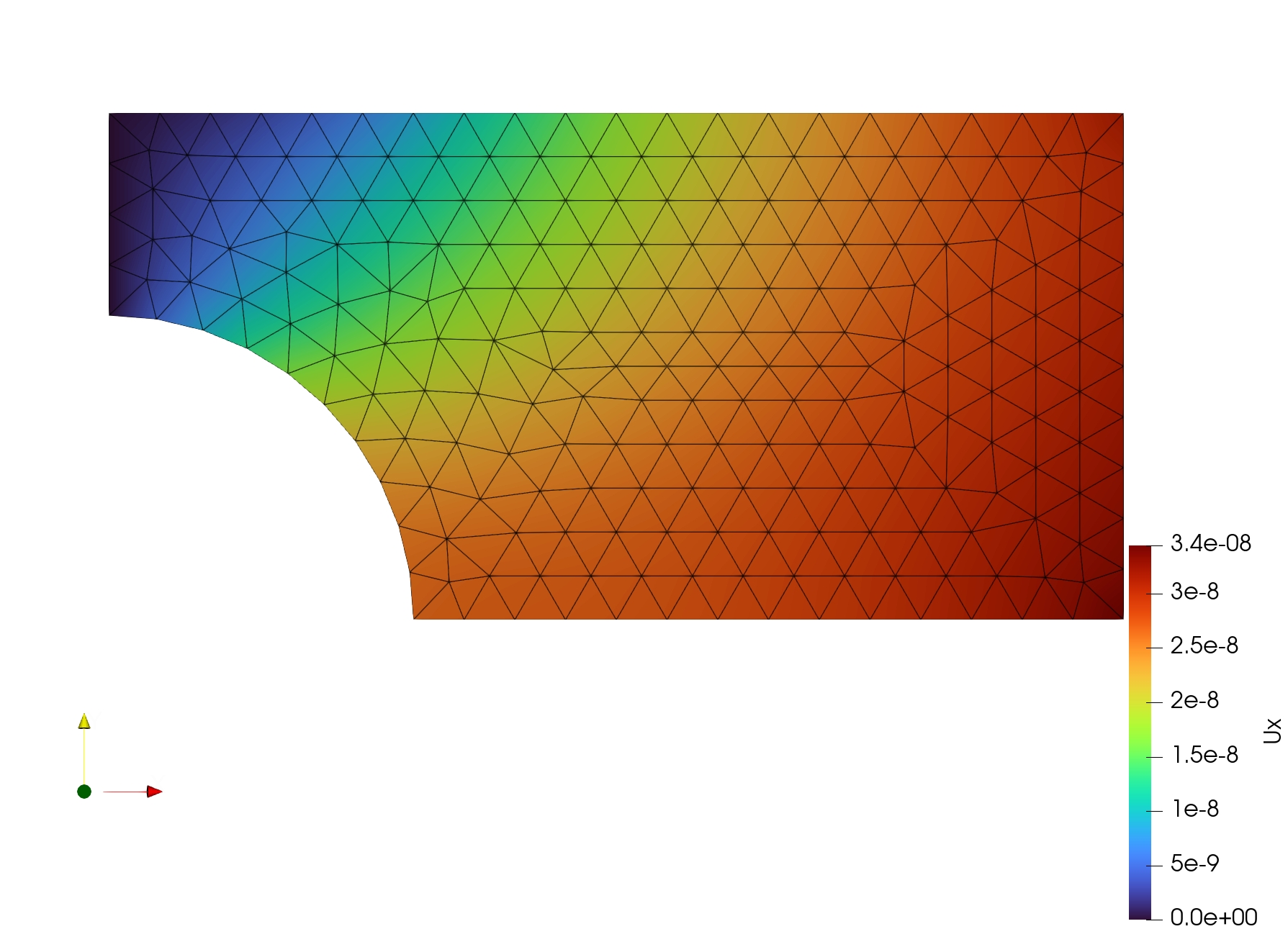

Plane42 Plate with hole (Flag=20)

% Create points
a=Point2D('Point1');
a=AddPoint(a,0,0);
a=AddPoint(a,[0;0;100;100;30],[30;50;50;0;0]);
% Create lines
b=Line2D('Line1');
b=AddCircle(b,30,a,1,'sang',0,'ang',90);
b=AddCurve(b,a,2);
Plot(b,'equal',1);
% Create surface2D
S=Surface2D(b);
% Create Mehs2D
m=Mesh2D('Plate with hole');
m=AddSurface(m,S);
m=SetSize(m,5);
m=Mesh(m);
Plot(m);
% Add assembly
Ass=Assembly('Plate_with_hole');
Ass=AddPart(Ass,m.Meshoutput);
% Boundary
Ass=AddBoundary(Ass,1,'locx',0);
Bound1=[1,0,0,0,0,0];
Ass=SetBoundaryType(Ass,1,Bound1);
Ass=AddBoundary(Ass,1,'locy',0);
Bound2=[0,1,0,0,0,0];
Ass=SetBoundaryType(Ass,2,Bound2);
% Material
mat.table=["EX",2.1e11;"PRXY",0.3;"DENS",7800];
Ass=AddMaterial(Ass,mat);
Ass=SetMaterial(Ass,1,1);
% Add load
Ass=AddLoad(Ass,1,'locx',100);
Load1=[12000,0,0,0,0,0];
Ass=SetLoad(Ass,1,Load1);
% Element type
ET.name='42';
ET.opt=[3,3];
ET.R=6;
Ass=AddET(Ass,ET);
Ass=SetET(Ass,1,1);
Plot(Ass,'boundary',1,...
'load',1,'load_scale',0.2,...
'view',[0,90]);
% Static analysis
opt.ANTYPE=0;
Ass=AddSolu(Ass,opt);
% Add sensor
Ass=AddSensor(Ass,'U',1);
Ass=AddSensor(Ass,'Stress',1);
% Output to ANSYS
ANSYS_Output(Ass);
if Cal
ANSYSSolve(Ass);
PlotSensor(Ass,1);
PlotSensor(Ass,2);
end

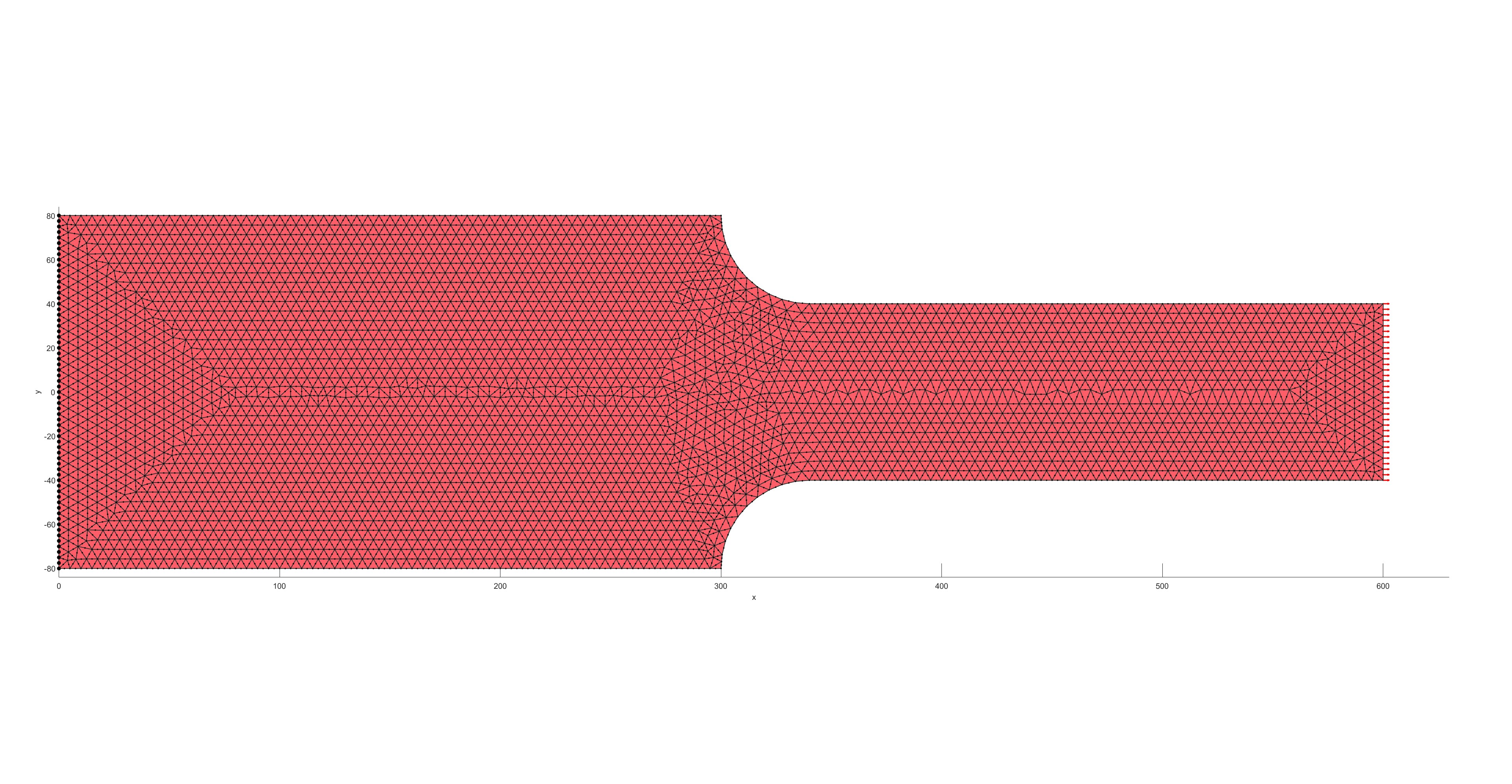

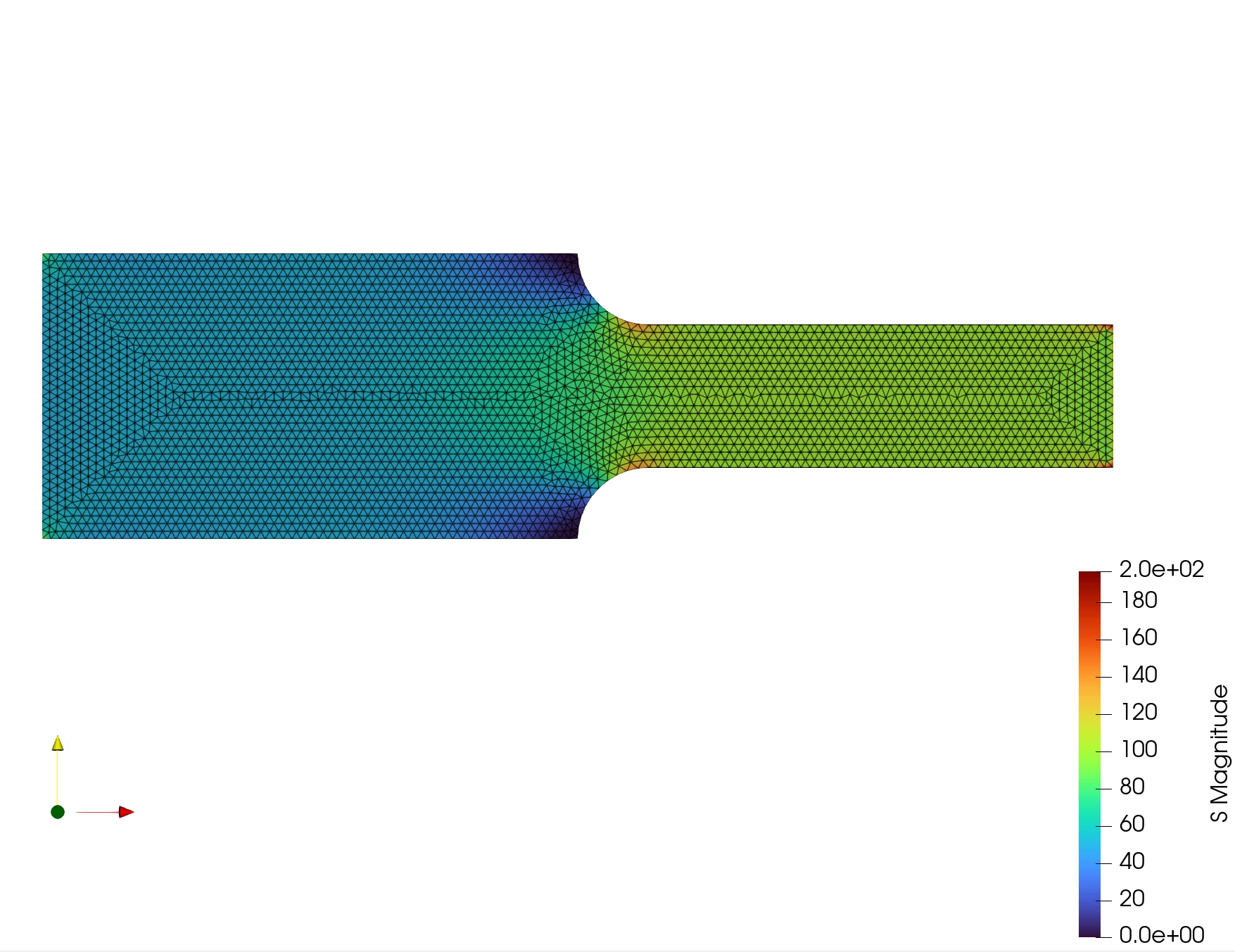

Plane82 Flat bar with shoulder fillets (Flag=21)

% Create points
a=Point2D('Point1');
a=AddPoint(a,[0;300],[80;80]);
a=AddPoint(a,[300;300],[80;40]);
a=AddPoint(a,[300;450;600;600],[40;40;40;-40]);
a=AddPoint(a,[600;300],[-40;-40]);
a=AddPoint(a,[300;300],[-40;-80]);
a=AddPoint(a,[300;0;0],[-80;-80;80]);
% Create lines
b=Line2D('Line1');
b=AddLine(b,a,1);
b=AddLine(b,a,2);
b=AddCurve(b,a,3);
b=AddLine(b,a,4);
b=AddLine(b,a,5);
b=AddCurve(b,a,6);
b=CreateRadius(b,2,40);
b=CreateRadius(b,5,40);
Plot(b,'equal',1)
% Create surface2D
S=Surface2D(b);
% Create Mehs2D
m=Mesh2D('Flat bar with shoulder fillets');
m=AddSurface(m,S);
m=SetSize(m,5);
m=Mesh(m);
m=Convert2Order2(m);
% Add assembly
Ass=Assembly('Flat_bar_with_shoulder_fillets');
Ass=AddPart(Ass,m.Meshoutput);
% Boundary
Ass=AddBoundary(Ass,1,'locx',0);
Bound1=[1,1,0,0,0,0];
Ass=SetBoundaryType(Ass,1,Bound1);
% Material
mat.table=["EX",2.1e5;"PRXY",0.3;"DENS",7.85e-9];
Ass=AddMaterial(Ass,mat);
Ass=SetMaterial(Ass,1,1);
% Add load
Ass=AddLoad(Ass,1,'locx',600);
Load1=[96e3,0,0,0,0,0];
Ass=SetLoad(Ass,1,Load1);
% Element type
ET.name='82';
ET.opt=[3,3;5,1];
ET.R=12;
Ass=AddET(Ass,ET);
Ass=SetET(Ass,1,1);
Plot(Ass,'boundary',1,...
'load',1,'load_scale',0.2,...
'view',[0,90]);
% Static analysis
opt.ANTYPE=0;
Ass=AddSolu(Ass,opt);
% Add sensor
Ass=AddSensor(Ass,'U',1);
Ass=AddSensor(Ass,'Stress',1);
% Output to ANSYS
ANSYS_Output(Ass);
if Cal
ANSYSSolve(Ass);
PlotSensor(Ass,2);
end

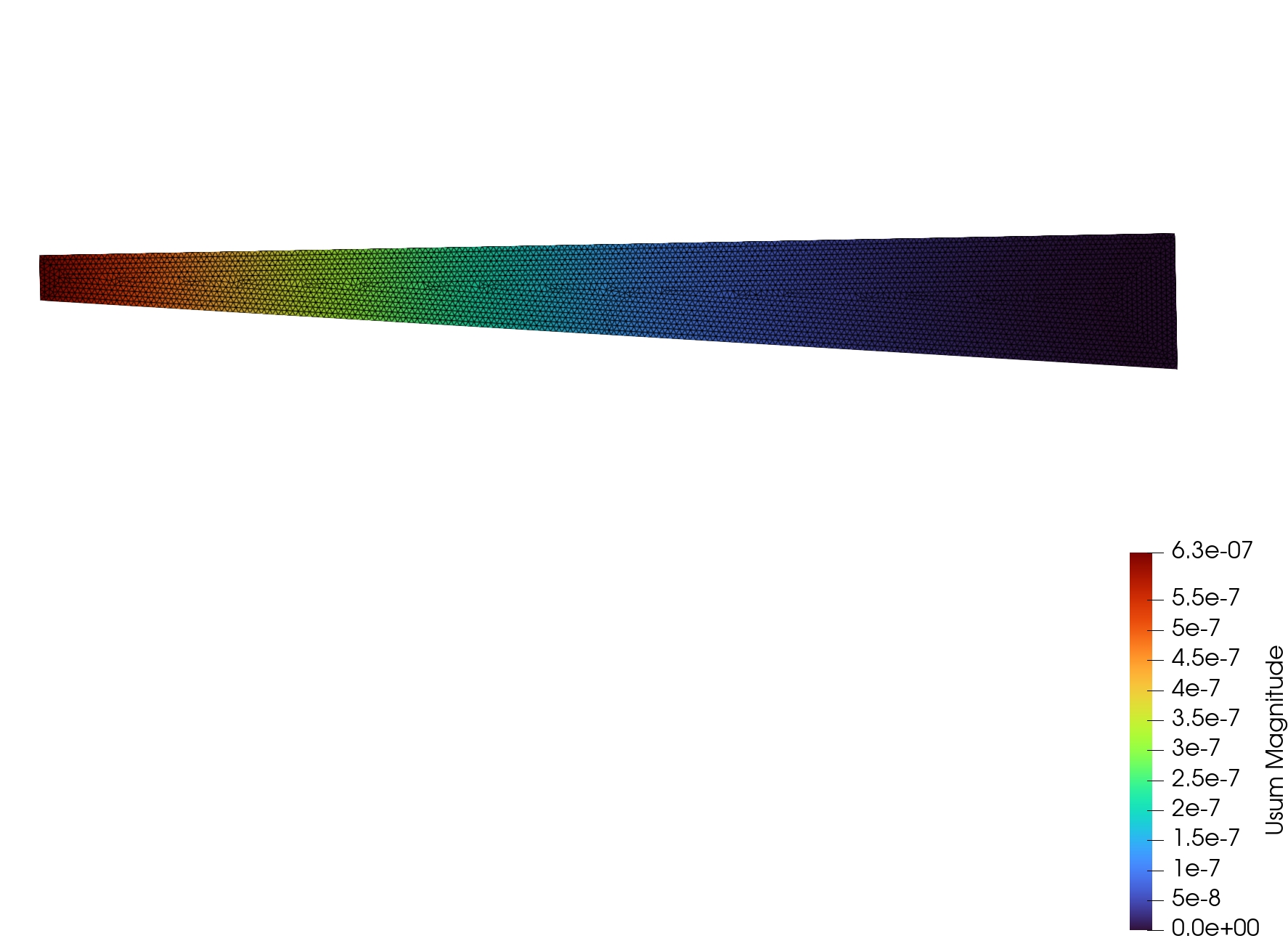

Plane182 Variable section beam (Flag=22)

% Create points
a=Point2D('Point1');
a=AddPoint(a,[0;0;-100;-100;0],[0;-12;-4;0;0]);
% Create lines
b=Line2D('Line1');
b=AddCurve(b,a,1);
% Create surface2D
S=Surface2D(b);
% Create Mehs2D
m=Mesh2D('Variable section beam');
m=AddSurface(m,S);
m=SetSize(m,0.5);
m=Mesh(m);
Plot(m);
% Add assembly
Ass=Assembly('Variable_section_beam');
Ass=AddPart(Ass,m.Meshoutput);
% Boundary
Ass=AddBoundary(Ass,1,'locx',0);
Bound1=[1,1,0,0,0,0];
Ass=SetBoundaryType(Ass,1,Bound1);
% Material
mat.table=["EX",2.1e11;"PRXY",0.3;"DENS",7800];
Ass=AddMaterial(Ass,mat);
Ass=SetMaterial(Ass,1,1);
% Add load
Ass=AddLoad(Ass,1,'locx',-100);
Load1=[0,-80,0,0,0,0];
Ass=SetLoad(Ass,1,Load1);
% Element type
ET.name='182';
ET.opt=[3,3];
ET.R=3;
Ass=AddET(Ass,ET);
Ass=SetET(Ass,1,1);
Plot(Ass,'boundary',1,...
'load',1,'load_scale',0.2,...
'view',[0,90]);
% Static analysis
opt.ANTYPE=0;
Ass=AddSolu(Ass,opt);
% Add sensor
Ass=AddSensor(Ass,'U',1);
Ass=AddSensor(Ass,'Stress',1);
% Output to ANSYS
ANSYS_Output(Ass);
if Cal
ANSYSSolve(Ass);
PlotSensor(Ass,1);
PlotSensor(Ass,2);
end

Plane183 Flat bar with shoulder fillets (Flag=23)

% Create points
a=Point2D('Point1');
a=AddPoint(a,[0;300],[80;80]);
a=AddPoint(a,[300;300],[80;40]);
a=AddPoint(a,[300;450;600;600],[40;40;40;-40]);
a=AddPoint(a,[600;300],[-40;-40]);
a=AddPoint(a,[300;300],[-40;-80]);
a=AddPoint(a,[300;0;0],[-80;-80;80]);
% Create lines
b=Line2D('Line1');
b=AddLine(b,a,1);
b=AddLine(b,a,2);
b=AddCurve(b,a,3);
b=AddLine(b,a,4);
b=AddLine(b,a,5);
b=AddCurve(b,a,6);
b=CreateRadius(b,2,40);
b=CreateRadius(b,5,40);
Plot(b,'equal',1)
% Create surface2D
S=Surface2D(b);
% Create Mehs2D
m=Mesh2D('Flat bar with shoulder fillets');
m=AddSurface(m,S);
m=SetSize(m,5);
m=Mesh(m);
m=Convert2Order2(m);
Plot(m);
% Add assembly
Ass=Assembly('Flat_bar_with_shoulder_fillets');
Ass=AddPart(Ass,m.Meshoutput);
% Boundary
Ass=AddBoundary(Ass,1,'locx',0);
Bound1=[1,1,0,0,0,0];
Ass=SetBoundaryType(Ass,1,Bound1);
% Material
mat.table=["EX",2.1e5;"PRXY",0.3;"DENS",7.85e-9];
Ass=AddMaterial(Ass,mat);
Ass=SetMaterial(Ass,1,1);
% Add load
Ass=AddLoad(Ass,1,'locx',600);
Load1=[96e3,0,0,0,0,0];
Ass=SetLoad(Ass,1,Load1);
% Element type
ET.name='183';
ET.opt=[3,3];
ET.R=12;
Ass=AddET(Ass,ET);
Ass=SetET(Ass,1,1);
Plot(Ass,'boundary',1,...
'load',1,'load_scale',0.2,...
'view',[0,90]);
% Static analysis
opt.ANTYPE=0;
Ass=AddSolu(Ass,opt);
% Add sensor
Ass=AddSensor(Ass,'U',1);
Ass=AddSensor(Ass,'Stress',1);
% Output to ANSYS
ANSYS_Output(Ass);
if Cal
ANSYSSolve(Ass);
PlotSensor(Ass,1);
PlotSensor(Ass,2);
end

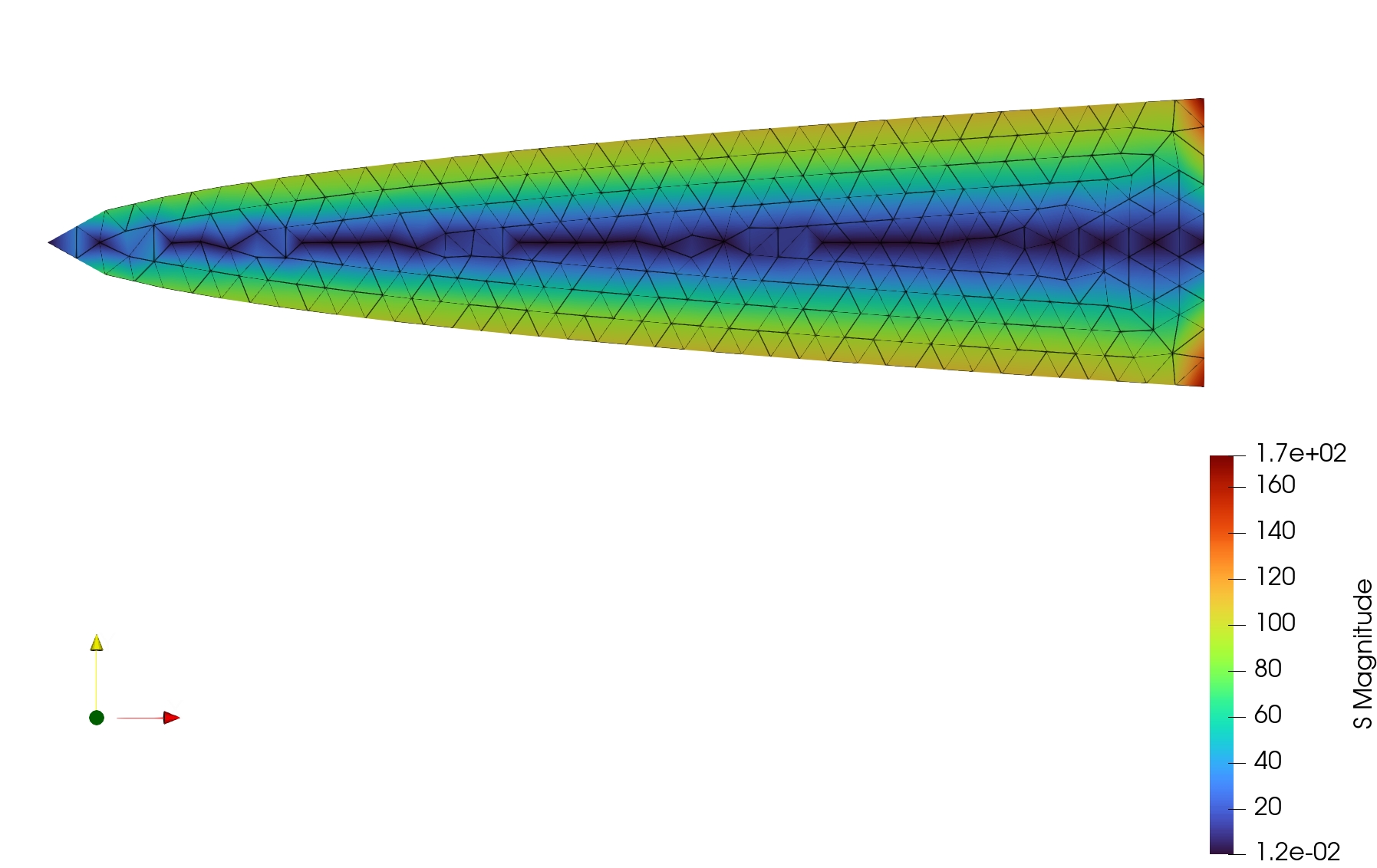

Solid45 Variable solid beam (Flag=24)

B=20;
h0=50;
x1=0:10:200;
y1=h0/2*sqrt(abs(x1)./200);
x2=200:-10:00;
y2=-h0/2*sqrt(abs(x2)/200);
% Create points
a=Point2D('Point1');
a=AddPoint(a,x1',y1');
a=AddPoint(a,x2',y2');
a=AddPoint(a,[200;200],[-h0/2;h0/2]);
% Create lines
b=Line2D('Line1');
b=AddCurve(b,a,1);
b=AddCurve(b,a,2);
b=AddLine(b,a,3);
Plot(b,'equal',1)
% Create surface2D
S=Surface2D(b);
% Create Mehs2D
m=Mesh2D('Variable solid beam');
m=AddSurface(m,S);
m=SetSize(m,5);
m=Mesh(m);
Plot(m);
% Create Mesh
mm=Mesh('Mesh');
mm=Extrude2Solid(mm,m,B,4);
PlotFace(mm);
% Add assembly
Ass=Assembly('Variable_solid_beam');
Ass=AddPart(Ass,mm.Meshoutput);
% Boundary
Ass=AddBoundary(Ass,1,'locx',200);
Bound1=[1,1,1,0,0,0];
Ass=SetBoundaryType(Ass,1,Bound1);
% Material
mat.table=["EX",2.1e5;"PRXY",0.3;"DENS",7.85e-9];
Ass=AddMaterial(Ass,mat);
Ass=SetMaterial(Ass,1,1);
% Add load
Ass=AddLoad(Ass,1,'locx',0);
Load1=[0,-5000,0,0,0,0];
Ass=SetLoad(Ass,1,Load1);
% Element type
ET.name='45';
ET.opt=[];
ET.R=[];
Ass=AddET(Ass,ET);
Ass=SetET(Ass,1,1);
Plot(Ass,'boundary',1,...
'load',1,'load_scale',1);
% Static analysis
opt.ANTYPE=0;
Ass=AddSolu(Ass,opt);
% Add sensor
Ass=AddSensor(Ass,'U',1);
Ass=AddSensor(Ass,'Stress',1);
% Output to ANSYS
ANSYS_Output(Ass);
if Cal
ANSYSSolve(Ass);
PlotSensor(Ass,1);
PlotSensor(Ass,2);
end

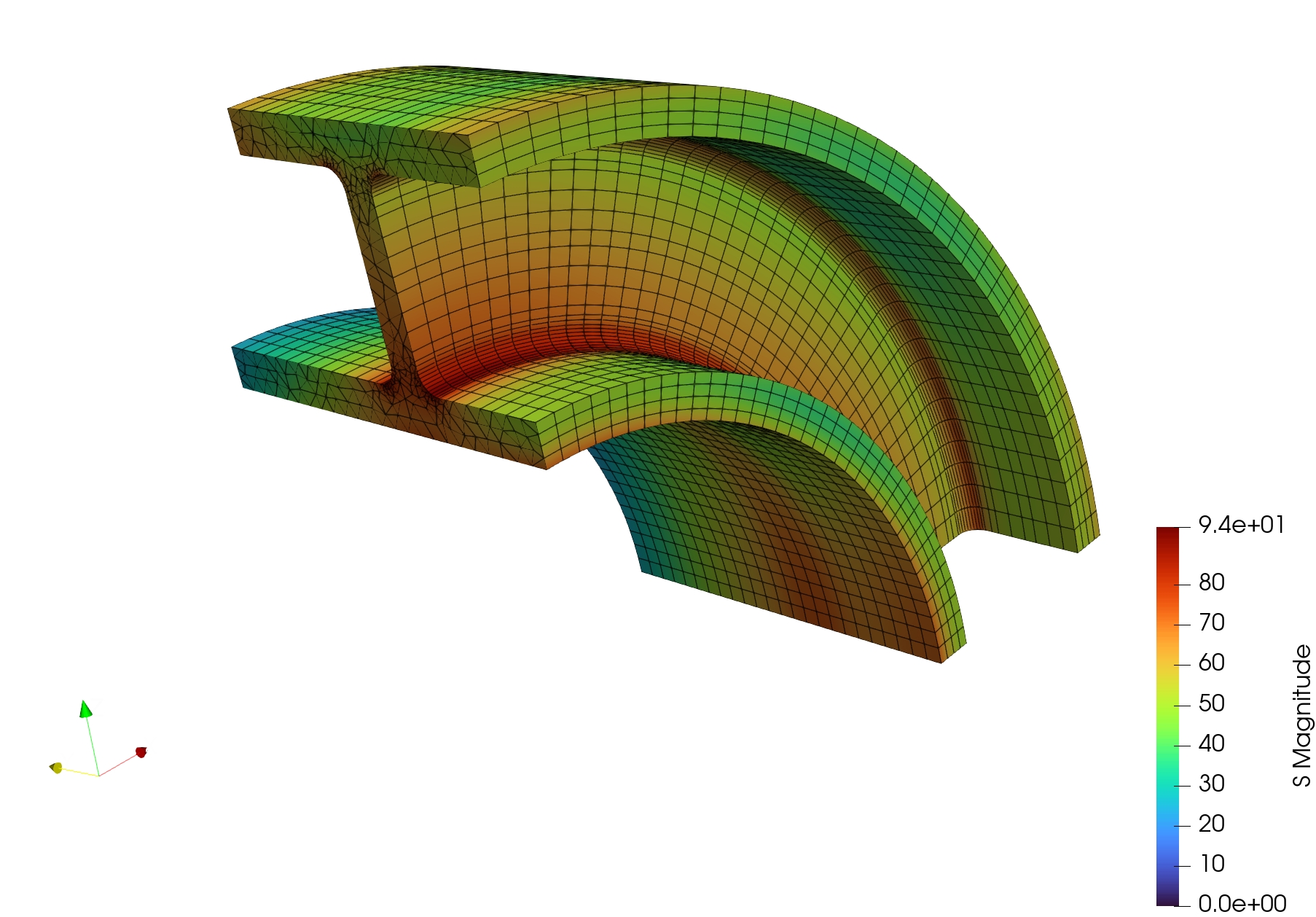

Solid95 Rotating part (Flag=25)

% Create points
a=Point2D('Point1');
a=AddPoint(a,[120;120],[0;75]);
a=AddPoint(a,[120;132],[75;75]);
a=AddPoint(a,[132;132],[75;5]);
a=AddPoint(a,[132;188],[5;5]);
a=AddPoint(a,[188;188],[5;45]);
a=AddPoint(a,[188;200],[45;45]);
a=AddPoint(a,[200;200],[45;-45]);
a=AddPoint(a,[200;188],[-45;-45]);
a=AddPoint(a,[188;188],[-45;-5]);
a=AddPoint(a,[188;132],[-5;-5]);
a=AddPoint(a,[132;132],[-5;-45]);
a=AddPoint(a,[132;120],[-45;-45]);
a=AddPoint(a,[120;120],[-45;0]);
% Create lines
b=Line2D('Line1');
for i=1:13
b=AddLine(b,a,i);
end
b=CreateRadius(b,3,6);
b=CreateRadius(b,5,6);
b=CreateRadius(b,11,6);
b=CreateRadius(b,13,6);
Plot(b,'equal',1)
% Create surface2D
S=Surface2D(b);
% Create Mehs2D
m=Mesh2D('Rotating part');
m=AddSurface(m,S);
m=SetSize(m,5);
m=Mesh(m);

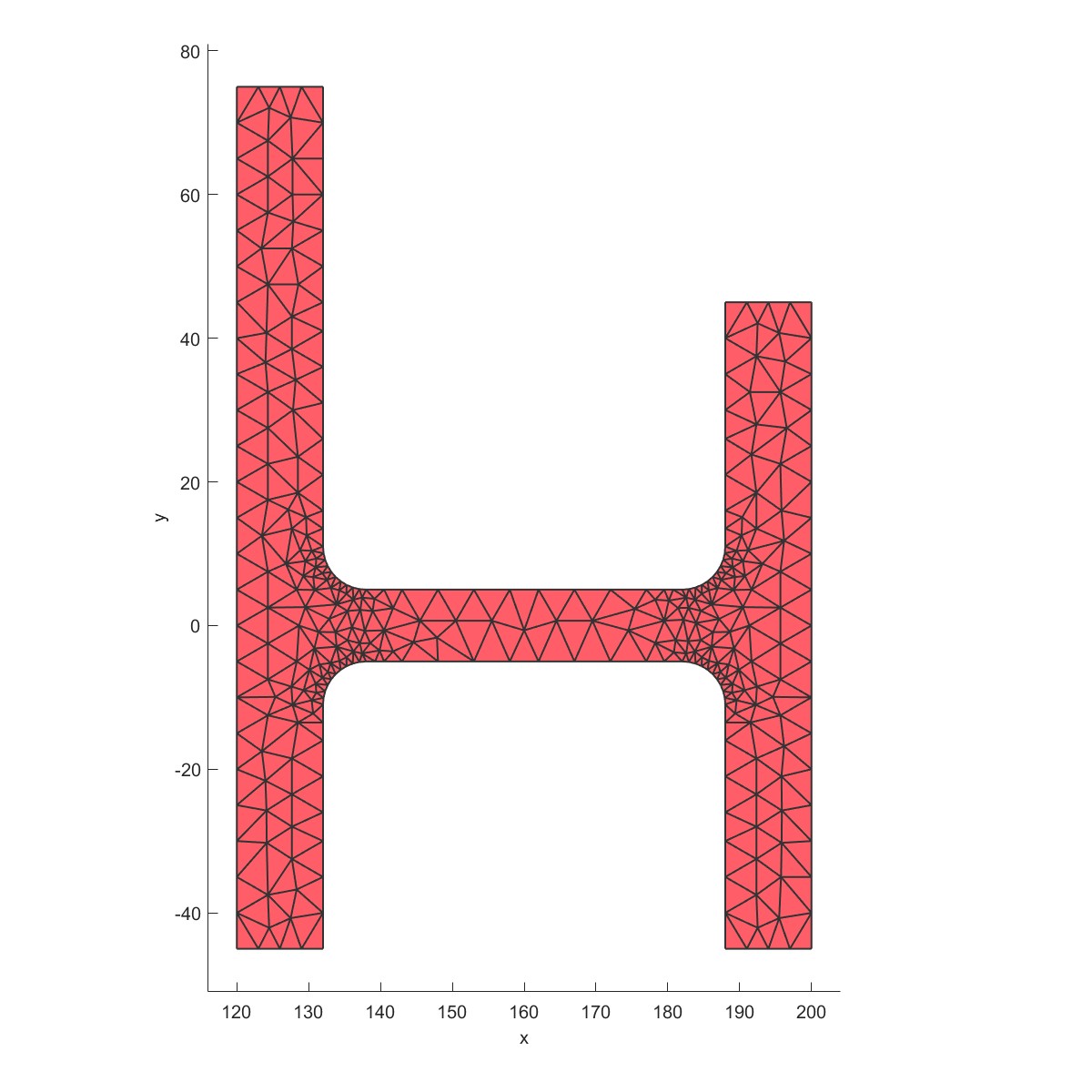

Plot(m);
% Create Mesh
mm=Mesh('Mesh');
mm=Revolve2Solid(mm,m,'Type',2,'Degree',90);
mm=Convert2Order2(mm);
PlotFace(mm,'marker',1);
PlotElement(mm);
% Add assembly
Ass=Assembly('Rotating_part');
Ass=AddPart(Ass,mm.Meshoutput);
% Boundary
Ass=AddBoundary(Ass,1,'locx',0);
Ass=AddBoundary(Ass,1,'locz',0);
Ass=AddBoundary(Ass,1,'locy',-45);
Bound1=[1,0,0,0,0,0];
Bound2=[0,0,1,0,0,0];
Bound3=[0,1,0,0,0,0];
Ass=SetBoundaryType(Ass,1,Bound1);
Ass=SetBoundaryType(Ass,2,Bound2);
Ass=SetBoundaryType(Ass,3,Bound3);
% Material
mat.table=["EX",2.1e5;"PRXY",0.3;"DENS",7.85e-9];
Ass=AddMaterial(Ass,mat);
Ass=SetMaterial(Ass,1,1);
% Element type
ET.name='95';
ET.opt=[];
ET.R=[];
Ass=AddET(Ass,ET);
Ass=SetET(Ass,1,1);
Plot(Ass,'boundary',1);
% Static analysis
opt.ANTYPE=0;
n=5000;%RPM
w=n*2*pi/60;
opt.OMEGA=[0,w,0];
Ass=AddSolu(Ass,opt);
% Add sensor
Ass=AddSensor(Ass,'Stress',1);
% Output to ANSYS
ANSYS_Output(Ass);
if Cal
ANSYSSolve(Ass);
PlotSensor(Ass,1);
end

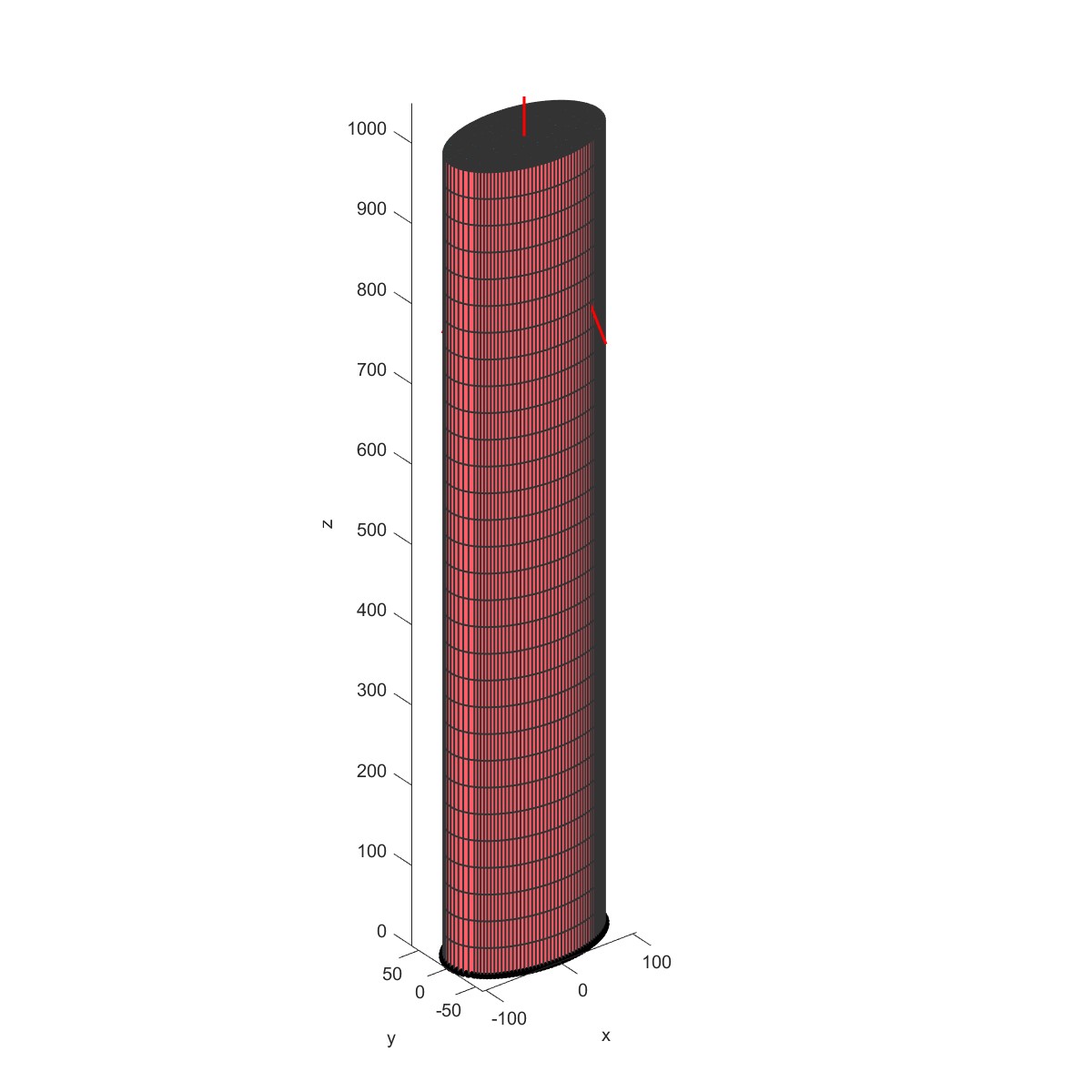

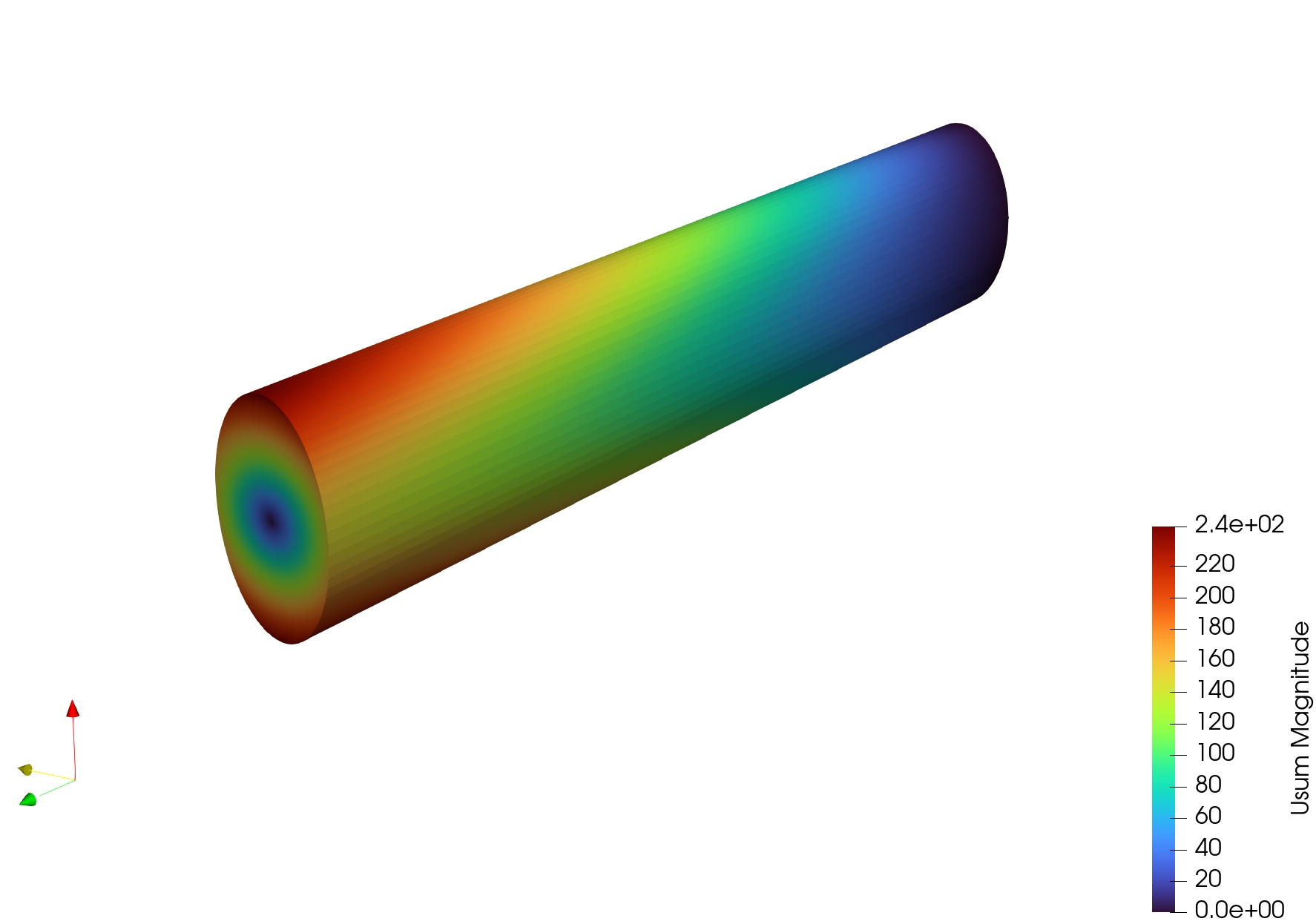

Solid185 Ellipse beam (Flag=26)

% Create points
a=Point2D('Point1');
a=AddPoint(a,0,0);
% Create lines
b=Line2D('Line1');
b=AddEllipse(b,100,60,a,1);
Plot(b,'equal',1)
% Create surface2D
S=Surface2D(b);
% Create Mehs2D
m=Mesh2D('Ellipse beam');
m=AddSurface(m,S);
m=SetSize(m,5);
m=Mesh(m);
Plot(m);
% Create Mesh
mm=Mesh('Mesh');
mm=Extrude2Solid(mm,m,1000,30);
PlotFace(mm);
% Add assembly
Ass=Assembly('Ellipse_beam');
Ass=AddPart(Ass,mm.Meshoutput);
% Boundary
Ass=AddBoundary(Ass,1,'locz',0);
Bound1=[1,1,1,0,0,0];
Ass=SetBoundaryType(Ass,1,Bound1);
% Material
mat.table=["EX",2.1e5;"PRXY",0.3;"DENS",7.85e-9];
Ass=AddMaterial(Ass,mat);
Ass=SetMaterial(Ass,1,1);
% Element type
ET.name='185';
ET.opt=[];
ET.R=[];
Ass=AddET(Ass,ET);
Ass=SetET(Ass,1,1);
ET1.name='21';ET1.opt=[3,0];ET1.R=[0,0,0,0,0,0];
AddET(Ass,ET1);
% Cnode
Ass=AddCnode(Ass,0,0,1000);
Ass=SetCnode(Ass,1,2);
% Connection
Ass=AddMaster(Ass,0,1);
Ass=AddSlaver(Ass,1,'face',3);
% Rbe2
Ass=SetRbe2(Ass,1,1);
% Add load
Ass=AddLoad(Ass,0,'No',1);
Load1=[0,0,0,0,0,1e10];
Ass=SetLoad(Ass,1,Load1);
Plot(Ass,'boundary',1,...
'load',1,'load_scale',0.2);
% Static analysis
opt.ANTYPE=0;
Ass=AddSolu(Ass,opt);
% Add sensor
Ass=AddSensor(Ass,'U',1);
Ass=AddSensor(Ass,'Stress',1);
% Output to ANSYS
ANSYS_Output(Ass);
if Cal
ANSYSSolve(Ass);
PlotSensor(Ass,1);
PlotSensor(Ass,2);
end

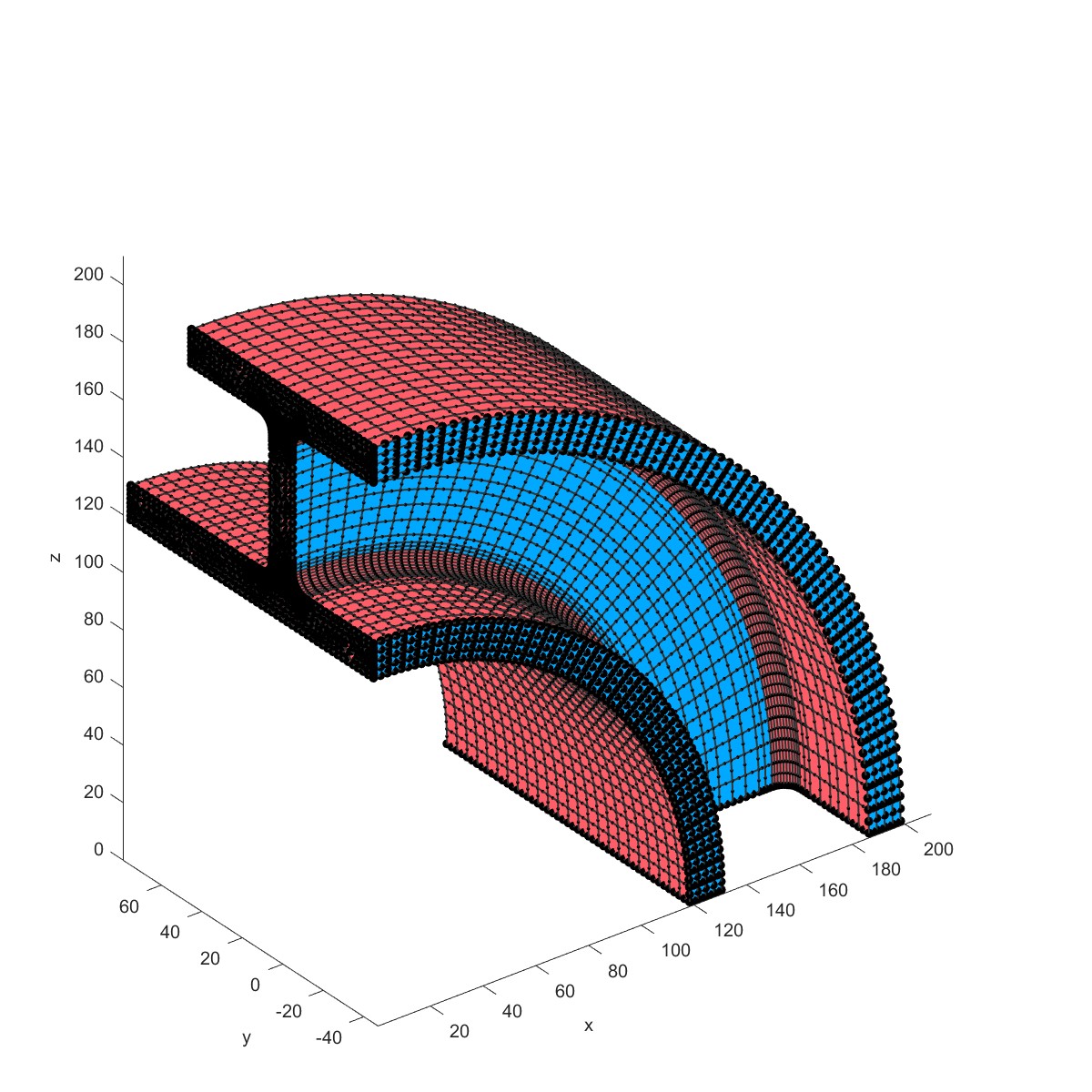

Solid186 Variable solid beam (Flag=27)

% Create points
a=Point2D('Point1');
a=AddPoint(a,[120;120],[0;75]);
a=AddPoint(a,[120;132],[75;75]);
a=AddPoint(a,[132;132],[75;5]);
a=AddPoint(a,[132;188],[5;5]);
a=AddPoint(a,[188;188],[5;45]);
a=AddPoint(a,[188;200],[45;45]);
a=AddPoint(a,[200;200],[45;-45]);
a=AddPoint(a,[200;188],[-45;-45]);
a=AddPoint(a,[188;188],[-45;-5]);
a=AddPoint(a,[188;132],[-5;-5]);
a=AddPoint(a,[132;132],[-5;-45]);
a=AddPoint(a,[132;120],[-45;-45]);
a=AddPoint(a,[120;120],[-45;0]);
% Create lines
b=Line2D('Line1');
for i=1:13
b=AddLine(b,a,i);
end
b=CreateRadius(b,3,6);
b=CreateRadius(b,5,6);
b=CreateRadius(b,11,6);
b=CreateRadius(b,13,6);
Plot(b,'equal',1)
% Create surface2D
S=Surface2D(b);
% Create Mehs2D
m=Mesh2D('Rotating part');
m=AddSurface(m,S);
m=SetSize(m,5);
m=Mesh(m);
Plot(m);
% Create Mesh
mm=Mesh('Mesh');
mm=Revolve2Solid(mm,m,'Type',2,'Degree',90);
mm=Convert2Order2(mm);
PlotFace(mm,'marker',1);
PlotElement(mm);
% Add assembly
Ass=Assembly('Rotating_part');
Ass=AddPart(Ass,mm.Meshoutput);
% Boundary
Ass=AddBoundary(Ass,1,'locx',0);
Ass=AddBoundary(Ass,1,'locz',0);
Ass=AddBoundary(Ass,1,'locy',-45);
Bound1=[1,0,0,0,0,0];
Bound2=[0,0,1,0,0,0];
Bound3=[0,1,0,0,0,0];
Ass=SetBoundaryType(Ass,1,Bound1);
Ass=SetBoundaryType(Ass,2,Bound2);
Ass=SetBoundaryType(Ass,3,Bound3);
% Material
mat.table=["EX",2.1e5;"PRXY",0.3;"DENS",7.85e-9];
Ass=AddMaterial(Ass,mat);
Ass=SetMaterial(Ass,1,1);
% Element type
ET.name='186';
ET.opt=[];
ET.R=[];
Ass=AddET(Ass,ET);
Ass=SetET(Ass,1,1);
Plot(Ass,'boundary',1);
% Static analysis
opt.ANTYPE=0;
n=5000;%RPM
w=n*2*pi/60;
opt.OMEGA=[0,w,0];
Ass=AddSolu(Ass,opt);
% Add sensor
Ass=AddSensor(Ass,'Stress',1);
% Output to ANSYS
ANSYS_Output(Ass);
if Cal
ANSYSSolve(Ass);
PlotSensor(Ass,1);
end

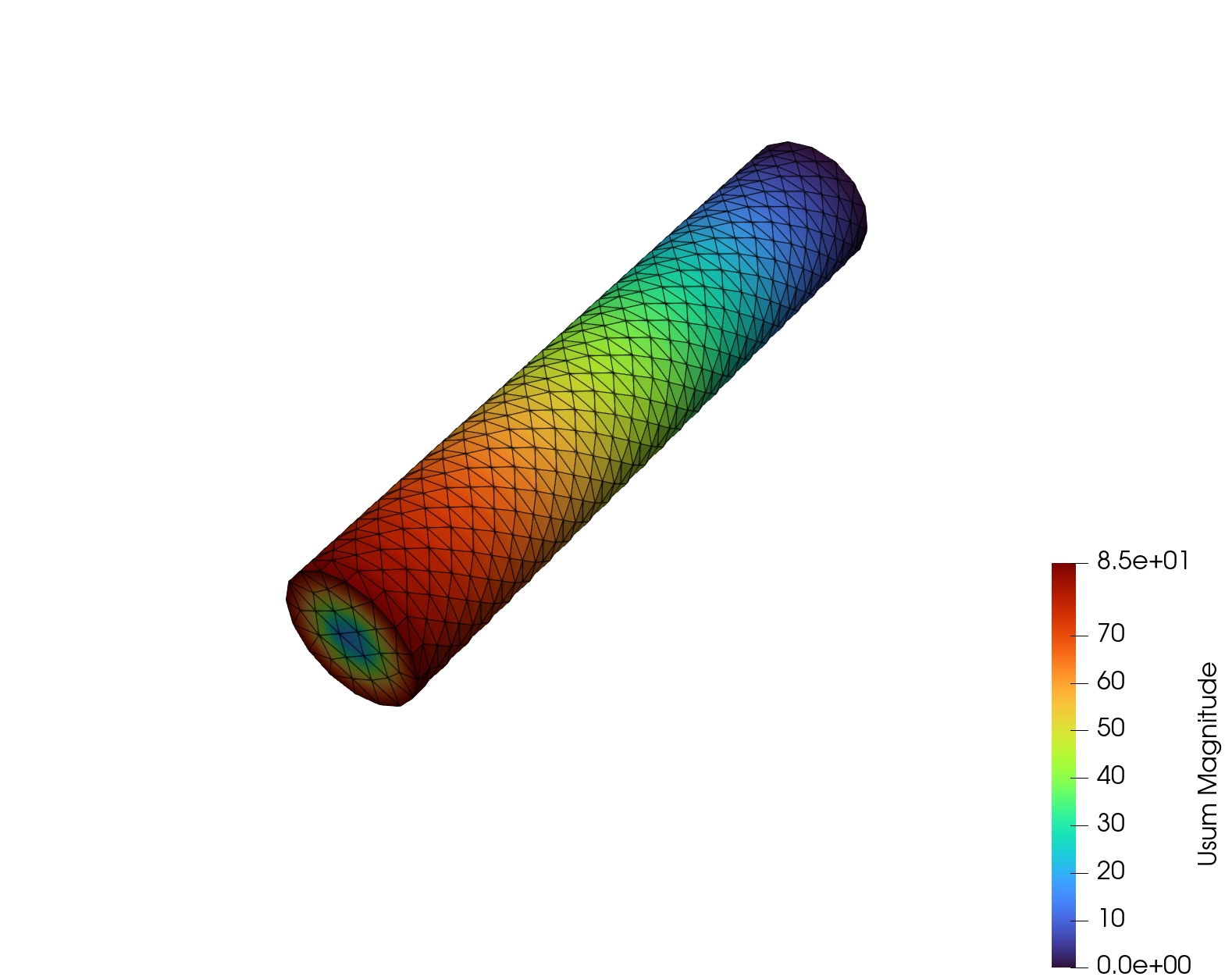

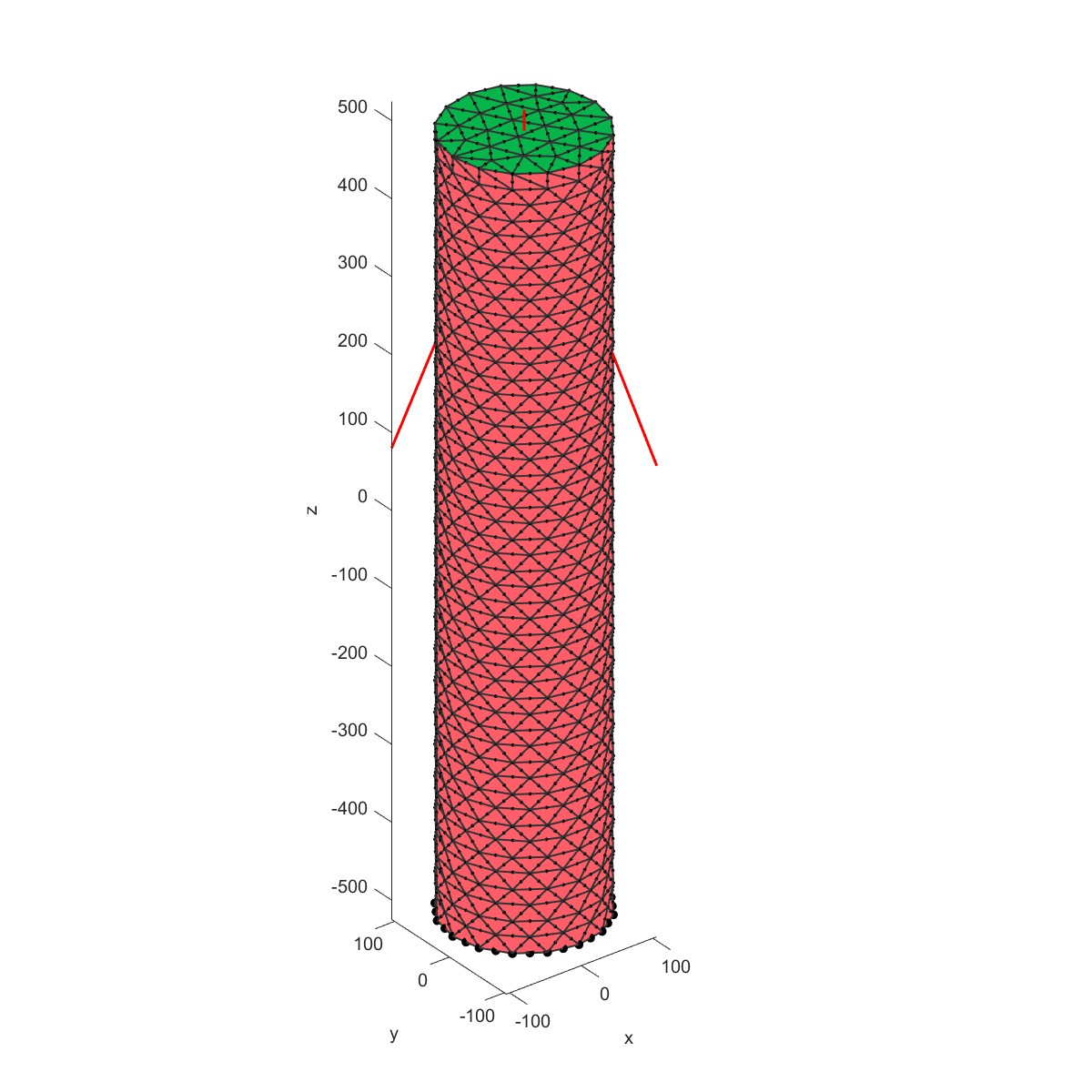

Solid187 Cylinder Beam (Flag=28)

mm=Mesh('Cylinder Beam');
mm=MeshCylinder(mm,20,100,1000);
% The cyclinder is meshed using tetrahedral elements using tetgen
mm=Mesh3D(mm);
mm=Convert2Order2(mm);
PlotElement(mm);
% Add assembly
Ass=Assembly('Cylinder_beam');
Ass=AddPart(Ass,mm.Meshoutput);
% Boundary
Ass=AddBoundary(Ass,1,'locz',-500);
Bound1=[1,1,1,0,0,0];
Ass=SetBoundaryType(Ass,1,Bound1);
% Material
mat.table=["EX",2.1e5;"PRXY",0.3;"DENS",7.85e-9];
Ass=AddMaterial(Ass,mat);
Ass=SetMaterial(Ass,1,1);
% Element type
ET.name='187';
ET.opt=[];
ET.R=[];
Ass=AddET(Ass,ET);
Ass=SetET(Ass,1,1);
ET1.name='21';ET1.opt=[3,0];ET1.R=[0,0,0,0,0,0];
AddET(Ass,ET1);
% Cnode
Ass=AddCnode(Ass,0,0,500);
Ass=SetCnode(Ass,1,2);
% Connection
Ass=AddMaster(Ass,0,1);
Ass=AddSlaver(Ass,1,'face',2);
% Rbe2
Ass=SetRbe2(Ass,1,1);
% Add load
Ass=AddLoad(Ass,0,'No',1);
Load1=[0,0,0,0,0,1e10];
Ass=SetLoad(Ass,1,Load1);
Plot(Ass,'boundary',1,...
'load',1,'load_scale',0.2);
% Static analysis
opt.ANTYPE=0;
Ass=AddSolu(Ass,opt);
% Add sensor
Ass=AddSensor(Ass,'U',1);
% Output to ANSYS
ANSYS_Output(Ass);
if Cal
ANSYSSolve(Ass);
PlotSensor(Ass,1);
end

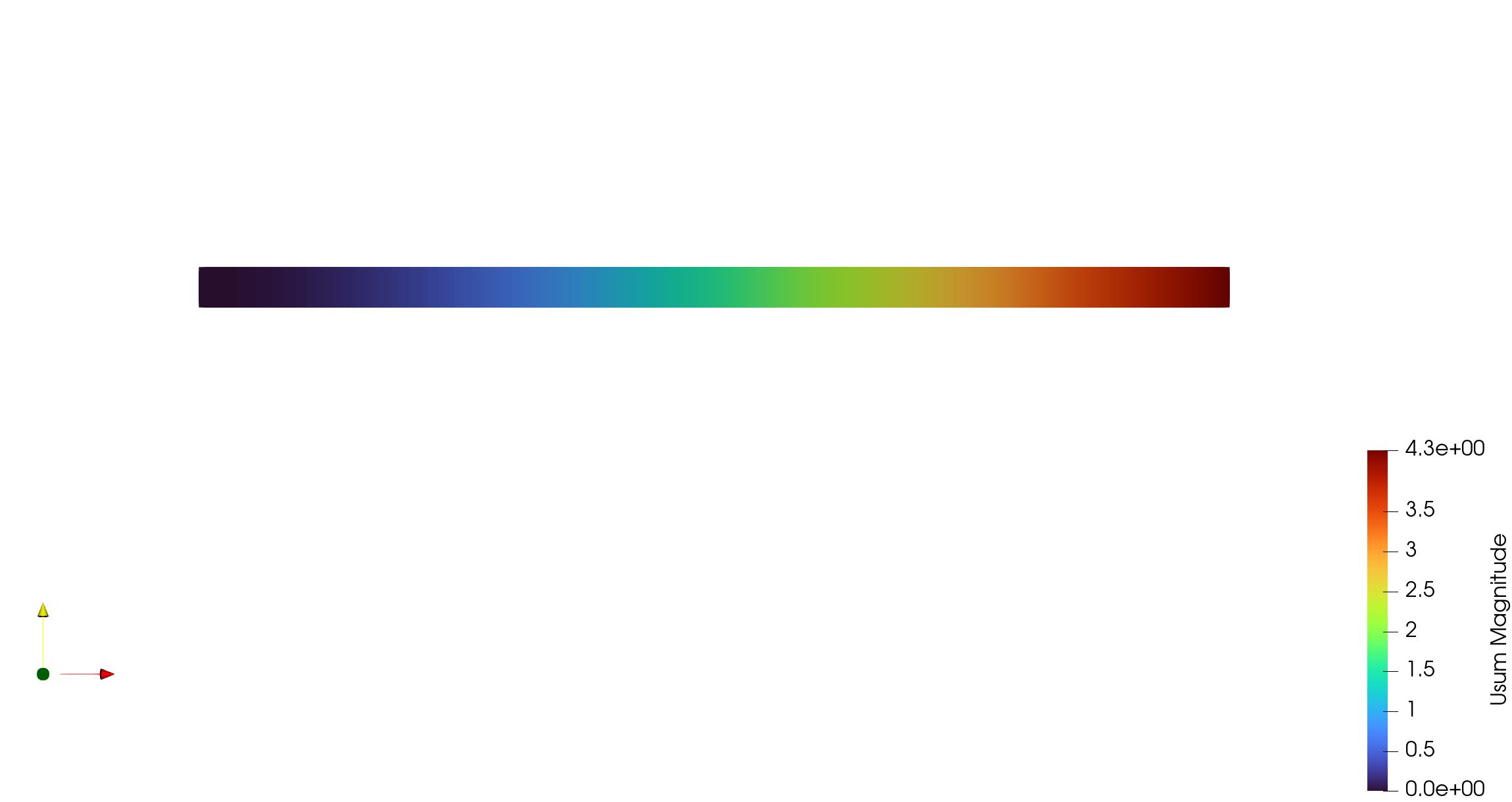

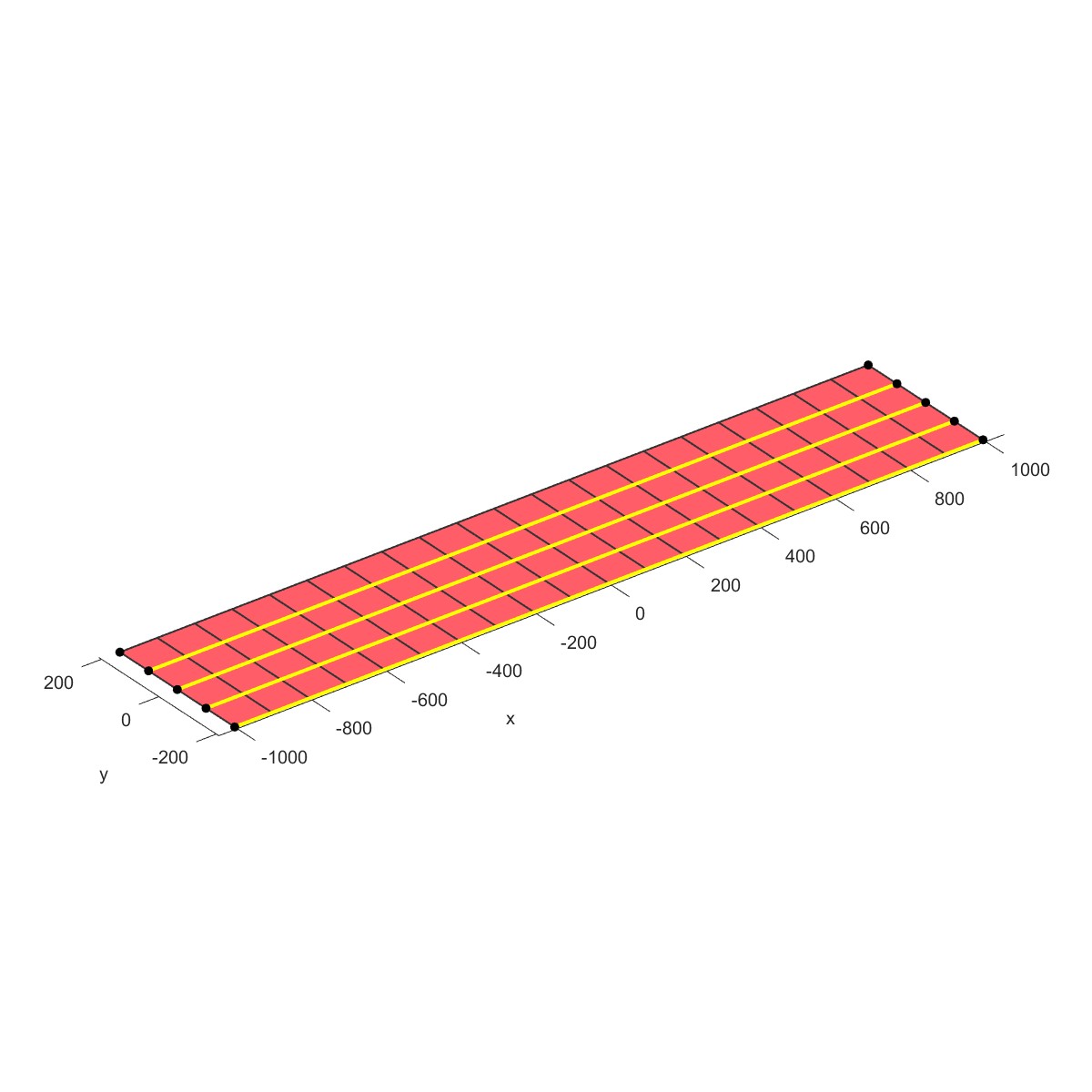

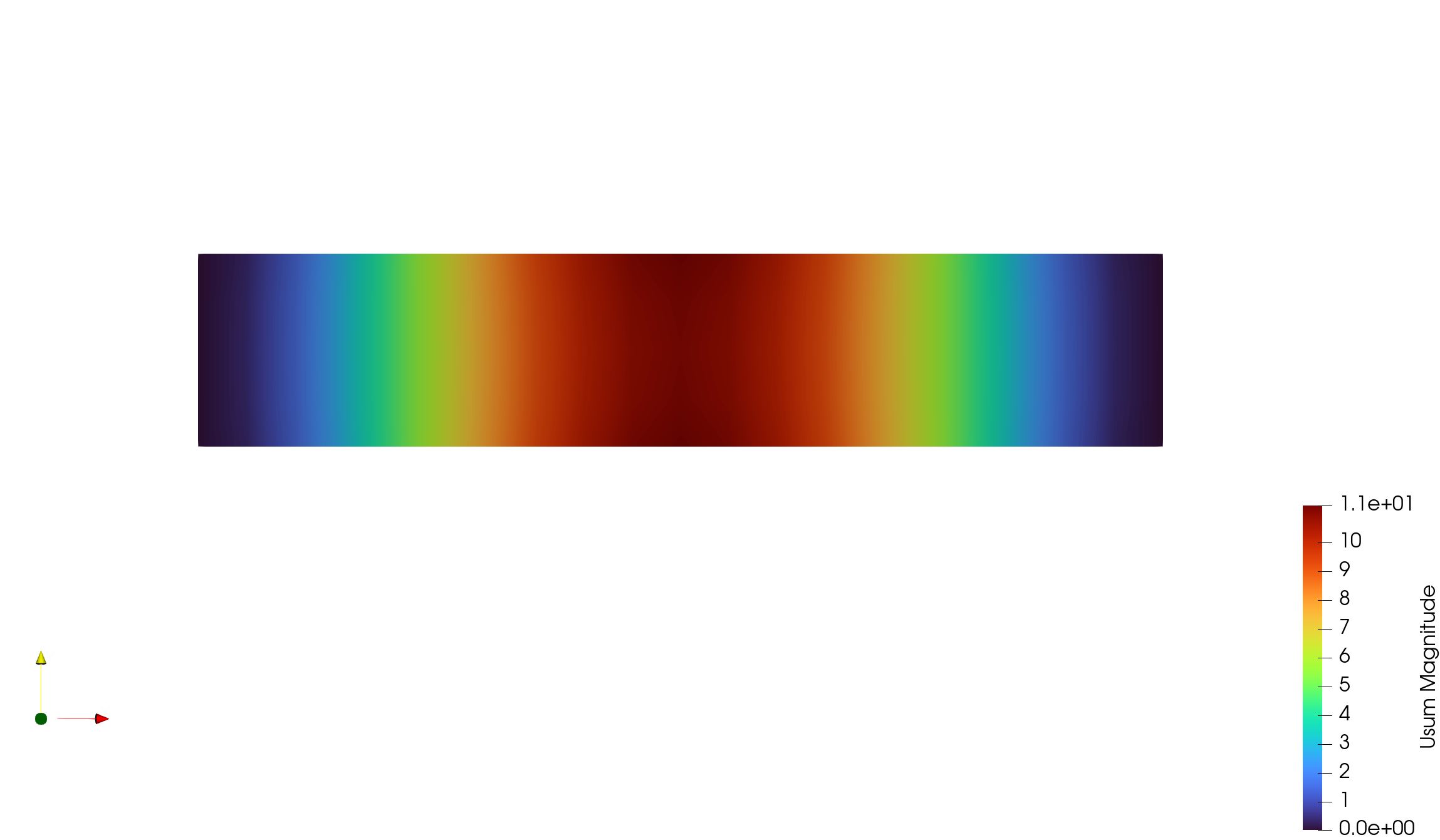

Shell63 Plate under pressure (Flag=29)

% Mesh plate
m=Mesh2D('Plate under pressure');
m=MeshQuadPlate(m,[2000,400],[20,4]);
Plot(m);
% Add assembly
Ass=Assembly('Plate_under_pressure');
Ass=AddPart(Ass,m.Meshoutput);
% Boundary
Ass=AddBoundary(Ass,1,'locx',-1000);
Ass=AddBoundary(Ass,1,'locx',1000);
Bound1=[1,1,1,1,1,1];
Ass=SetBoundaryType(Ass,1,Bound1);
Ass=SetBoundaryType(Ass,2,Bound1);
% Material
mat.table=["EX",2.1e5;"PRXY",0.3;"DENS",7.85e-9];
Ass=AddMaterial(Ass,mat);
Ass=SetMaterial(Ass,1,1);
% Element type
ET.name='63';
ET.opt=[];
ET.R=16;
Ass=AddET(Ass,ET);
Ass=SetET(Ass,1,1);
% Add SF
Num=Ass.Part{1,1}.NumElements;
Ass=AddSF(Ass,1,(1:Num)','type','SFE');
Ass=SetSF(Ass,1,-2e-2);
Plot(Ass,'boundary',1,...
'load',1,'load_scale',0.2);
% Static analysis
opt.ANTYPE=0;
Ass=AddSolu(Ass,opt);
% Add sensor
Ass=AddSensor(Ass,'U',1);
% Output to ANSYS
ANSYS_Output(Ass);
if Cal
ANSYSSolve(Ass);
PlotSensor(Ass,1);
end

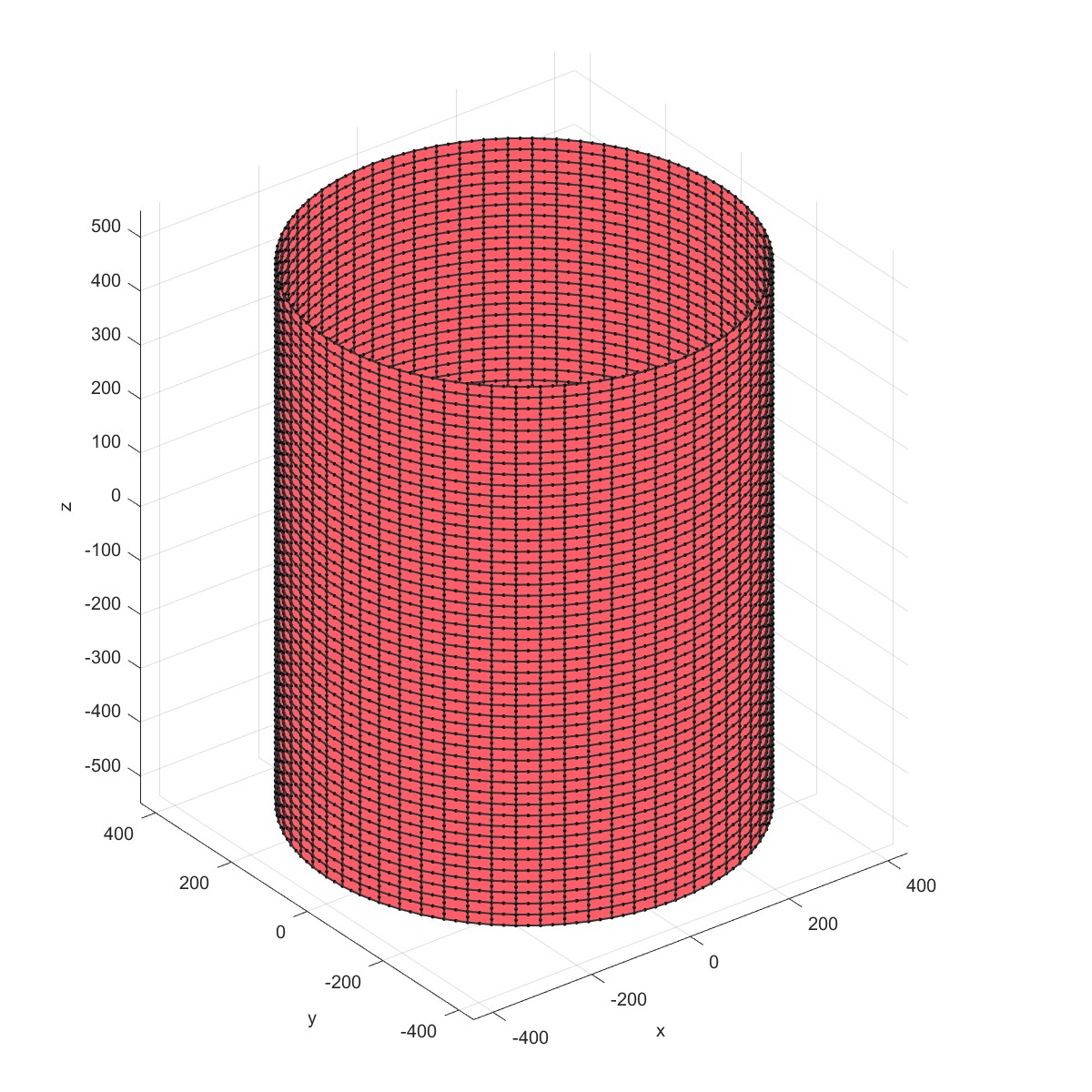

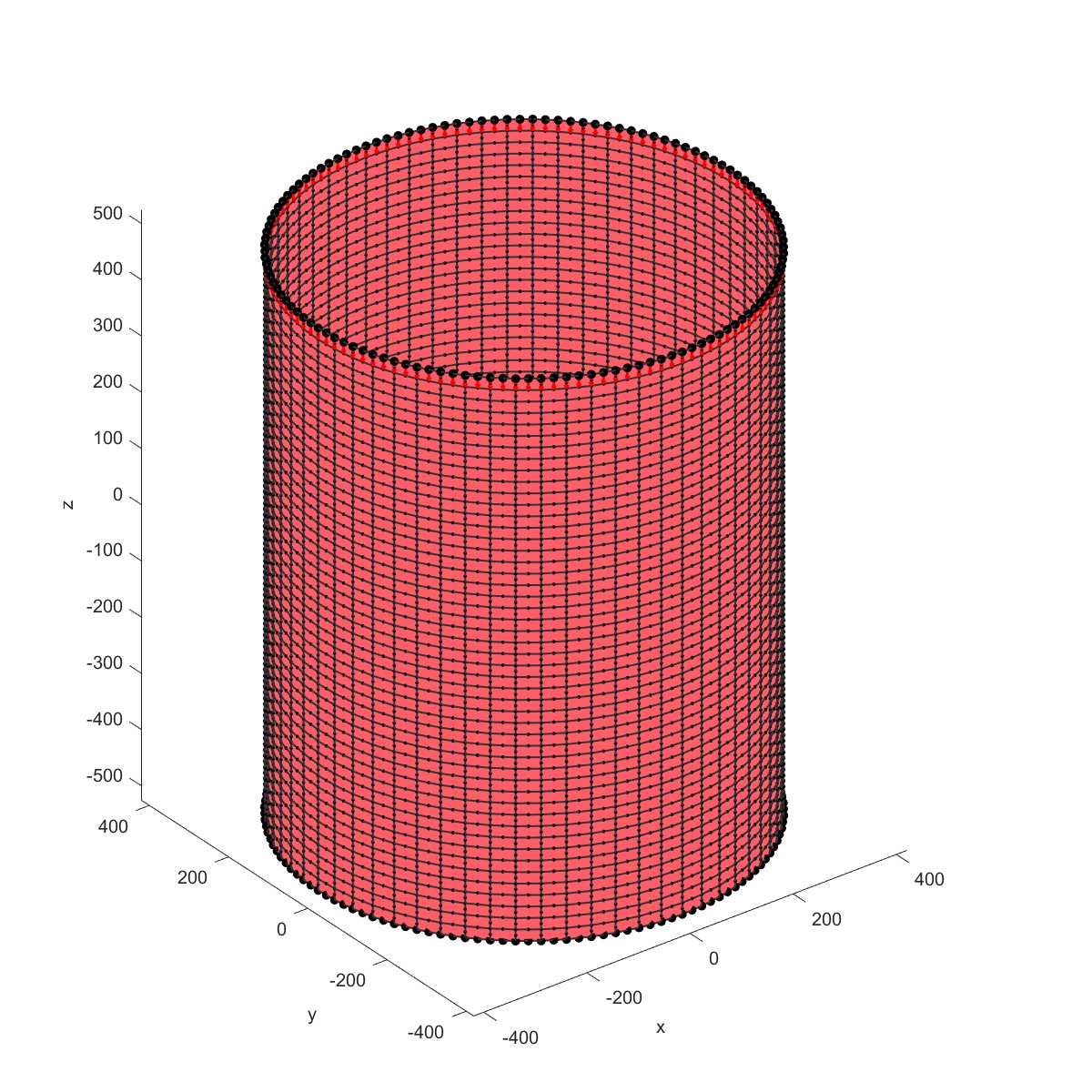

Shell93 Cylindrical shell (Flag=30)

% Mesh cylinder
mm=Mesh('Cylinder Mesh');
mm=MeshCylinder(mm,20,400,1000,'ElementType','quad','close',0);
mm=Convert2Order2(mm);
PlotFace(mm);
% Add assembly
Ass=Assembly('Cylindrical_shell');
Ass=AddPart(Ass,mm.Meshoutput);
% Boundary
Ass=AddBoundary(Ass,1,'locz',-500);
Ass=AddBoundary(Ass,1,'locz',500);
Bound1=[1,1,1,0,0,0];
Ass=SetBoundaryType(Ass,1,Bound1);
Bound2=[1,1,0,0,0,0];
Ass=SetBoundaryType(Ass,2,Bound2);
% Material
mat.table=["EX",2.1e5;"PRXY",0.3;"DENS",7.85e-9];
Ass=AddMaterial(Ass,mat);
Ass=SetMaterial(Ass,1,1);
% Element type
ET.name='93';
ET.opt=[];
ET.R=2;
Ass=AddET(Ass,ET);
Ass=SetET(Ass,1,1);
% Add load
Ass=AddLoad(Ass,1,'locz',500);
Ass=SetLoad(Ass,1,[0,0,-100000,0,0,0]);
Plot(Ass,'boundary',1,...
'load',1,'load_scale',0.2);
% Static analysis
opt.ANTYPE=0;
Ass=AddSolu(Ass,opt);
% Add sensor
Ass=AddSensor(Ass,'U',1);
% Output to ANSYS
ANSYS_Output(Ass);
if Cal
ANSYSSolve(Ass);
PlotSensor(Ass,1);
end

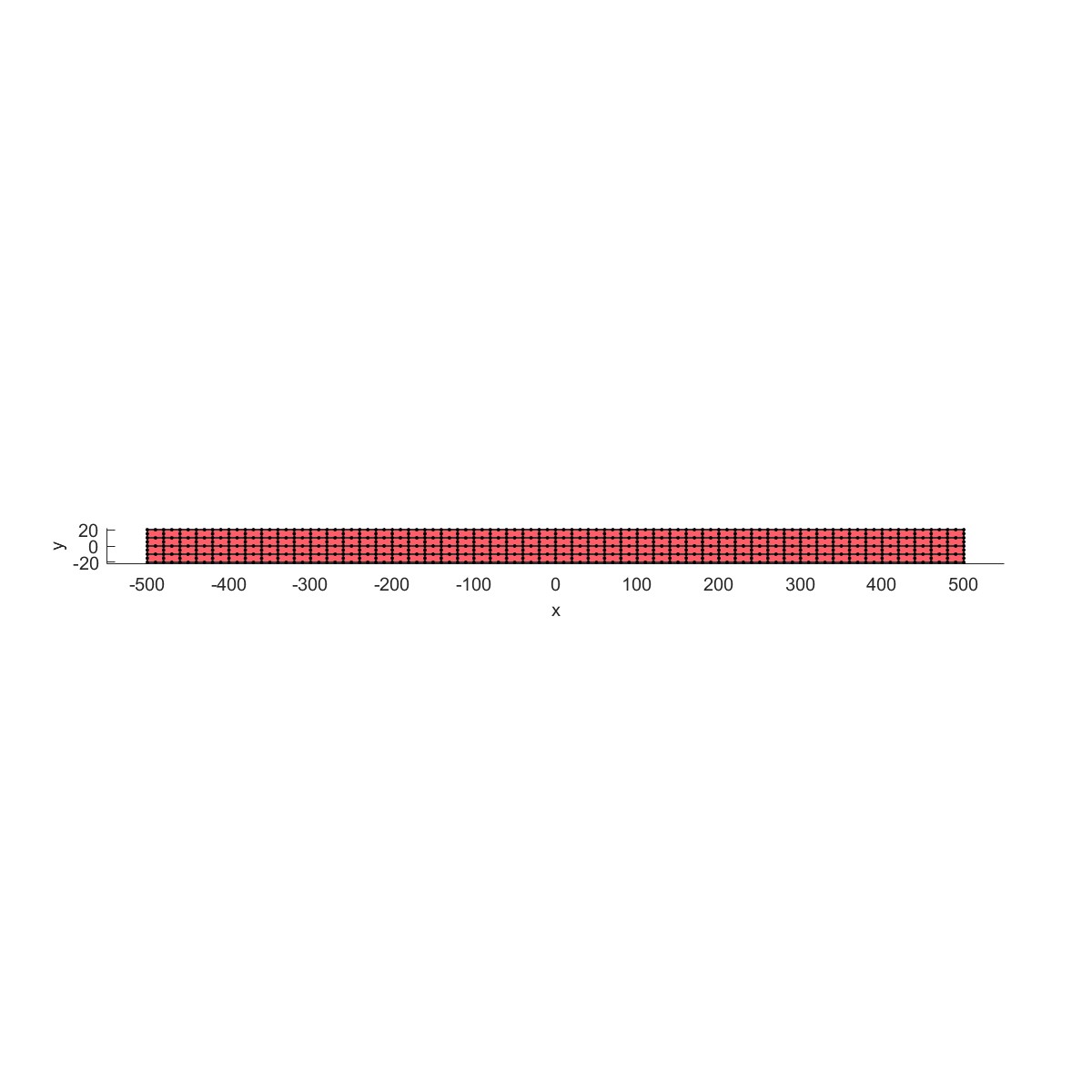

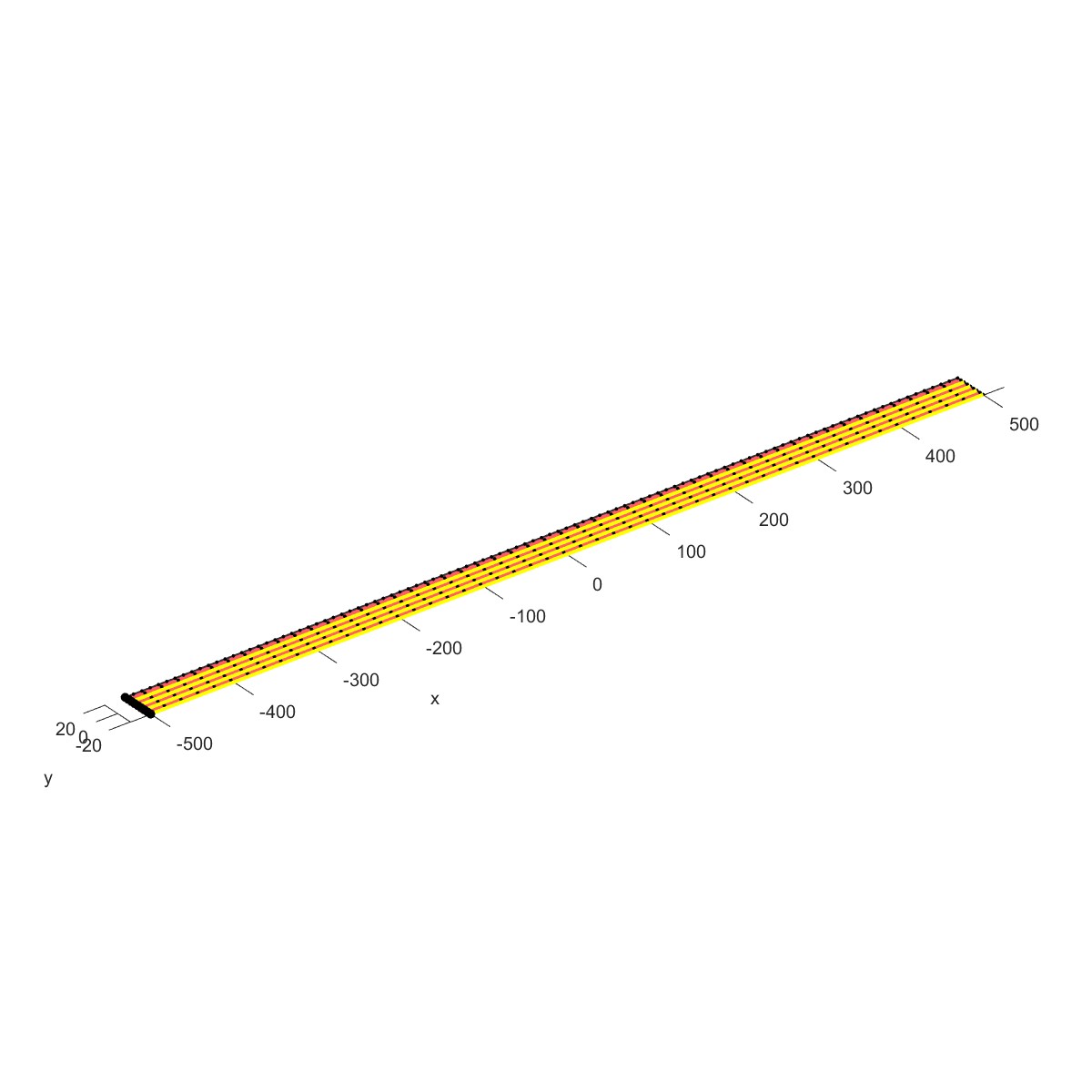

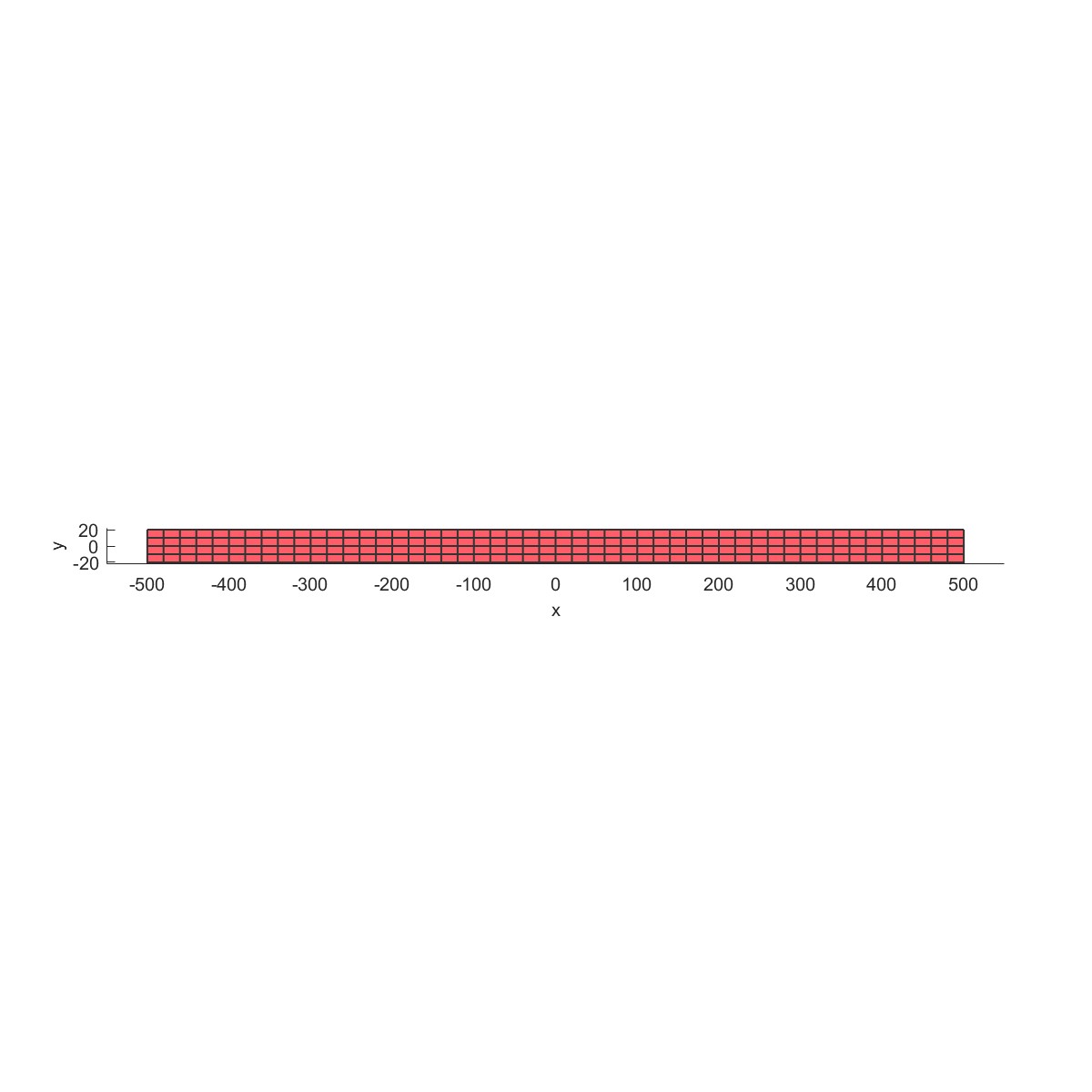

Shell181 Shell section (Flag=31)

% Mesh plate
m=Mesh2D('Shell Section');
m=MeshQuadPlate(m,[1000,40],[50,4]);
Plot(m);
% Add assembly
Ass=Assembly('Shell_Section');
Ass=AddPart(Ass,m.Meshoutput);
% Boundary
Ass=AddBoundary(Ass,1,'locx',-1000/2);
Bound1=[1,1,1,1,1,1];
Ass=SetBoundaryType(Ass,1,Bound1);
% Material
mat1.table=["EX",2e5;"PRXY",0];
Ass=AddMaterial(Ass,mat1);
mat2.table=["EX",2e4;"PRXY",0];
Ass=AddMaterial(Ass,mat2);
% Section
Sec.type="shell";
Sec.data=[6,1,0,3;60,2,0,9;6,1,0,3];
Sec.offset="MID";
Ass=AddSection(Ass,Sec);
Ass=SetSection(Ass,1,1);
% Element type
ET.name='181';
ET.opt=[3,2;8,1];
ET.R=[];
Ass=AddET(Ass,ET);
Ass=SetET(Ass,1,1);
% Add SF
Num=Ass.Part{1,1}.NumElements;
Ass=AddSF(Ass,1,(1:Num)','type','SFE');
Ass=SetSF(Ass,1,0.1);
Plot(Ass,'boundary',1,...
'load',1,'load_scale',0.2);
% Static analysis
opt.ANTYPE=0;
Ass=AddSolu(Ass,opt);
% Add sensor
Ass=AddSensor(Ass,'U',1);
% Output to ANSYS
ANSYS_Output(Ass);
if Cal
ANSYSSolve(Ass);
PlotSensor(Ass,1);
end

Shell281 Shell section (Flag=32)

% Mesh plate
m=Mesh2D('Shell Section');
m=MeshQuadPlate(m,[1000,40],[50,4]);
m=Convert2Order2(m);
Plot(m);
% Add assembly
Ass=Assembly('Shell_Section');
Ass=AddPart(Ass,m.Meshoutput);
% Boundary
Ass=AddBoundary(Ass,1,'locx',-1000/2);
Bound1=[1,1,1,1,1,1];
Ass=SetBoundaryType(Ass,1,Bound1);
% Material
mat1.table=["EX",2e5;"PRXY",0];
Ass=AddMaterial(Ass,mat1);
mat2.table=["EX",2e4;"PRXY",0];
Ass=AddMaterial(Ass,mat2);
% Section
Sec.type="shell";
Sec.data=[6,1,0,3;60,2,0,9;6,1,0,3];
Sec.offset="MID";
Ass=AddSection(Ass,Sec);
Ass=SetSection(Ass,1,1);
% Element type
ET.name='281';
ET.opt=[3,2;8,1];
ET.R=[];
Ass=AddET(Ass,ET);
Ass=SetET(Ass,1,1);
% Add SF
Num=Ass.Part{1,1}.NumElements;
Ass=AddSF(Ass,1,(1:Num)','type','SFE');
Ass=SetSF(Ass,1,0.1);
Plot(Ass,'boundary',1,...
'load',1,'load_scale',0.2);
% Static analysis
opt.ANTYPE=0;
Ass=AddSolu(Ass,opt);
% Add sensor
Ass=AddSensor(Ass,'U',1);
% Output to ANSYS
ANSYS_Output(Ass);
if Cal
ANSYSSolve(Ass);
PlotSensor(Ass,1);
end

Con173 Glue contact (Flag=33)

%% Specifying dimensions and number of elements
 m=Mesh('Mesh');
%% Create a box with hexahedral elements
beamDimensions=[120 20 1.55]; %Dimensions
beamElementNumbers=[60 20 6]; %Number of elements
m=MeshCube(m,beamDimensions,beamElementNumbers);
Vm = PatchCentre(m);
m.Cb(and(m.Cb==5,Vm(:,1)<=120-55-60),:)=11;
m.Cb(and(m.Cb==6,Vm(:,1)<=120-55-60),:)=12;
m.Cb(and(and(m.Cb==5,Vm(:,1)>=120-22-60),Vm(:,1)<=120-18-60),:)=13;
m.Cb(and(and(m.Cb==6,Vm(:,1)>=120-22-60),Vm(:,1)<=120-18-60),:)=14;
m.Meshoutput.boundaryMarker=m.Cb;
PlotFace(m)
% Add assembly
Ass=Assembly('Glue_plate');
Ass=AddPart(Ass,m.Meshoutput,'position',[60,0,0,0,0,0]);
Ass=AddPart(Ass,m.Meshoutput,'position',[60,0,1.55,0,0,0]);
% Boundary
Ass=AddBoundary(Ass,1,'locx',0);
Ass=AddBoundary(Ass,2,'locx',0);
Bound1=[1,1,1,0,0,0];
Ass=SetBoundaryType(Ass,1,Bound1);
Ass=SetBoundaryType(Ass,2,Bound1);
% Material
% mat1.table=["EX",2e5;"PRXY",0.3;"DENS",7.85e-9];
mat1.table=["DENS",1.6e-9;"EX",1.2e5;"EY",1.1e4;"EZ",1.1e4;...
  "PRXY",0.32;"PRYZ",0.45;"PRXZ",0.32;...
  "GXY",5500;"GYZ",5500;"GXZ",5500];
Ass=AddMaterial(Ass,mat1);
Ass=SetMaterial(Ass,1,1);
Ass=SetMaterial(Ass,2,1);
mat2.TBlab=["CZM",1,0,"CBDE"];
% mat2.TBtable=[30,0.35,60,1,5e-4,1];
mat2.TBtable=[30,0.26,60,1,5e-4,1.002];
Ass=AddMaterial(Ass,mat2);
% Element type
ET.name='185';
ET.opt=[];
ET.R=[];
Ass=AddET(Ass,ET);
Ass=SetET(Ass,1,1);
Ass=SetET(Ass,2,1);
ET2.name='170';ET2.opt=[];ET2.R=[];
Ass=AddET(Ass,ET2);
ET3.name='173';ET3.opt=[5,3;9,1;10,2;12,6];ET3.R=[]; % Standard contact
Ass=AddET(Ass,ET3);
% Add Force
Ass=AddLoad(Ass,1,'No',13);
Load1=[0,0,-150,0,0,0];
Ass=SetLoad(Ass,1,Load1);
% Ass=AddLoad(Ass,2,'No',14);
% Load2=[0,0,150,0,0,0];
% Ass=SetLoad(Ass,2,Load2);
% Add Displacement
% Ass=AddDisplacement(Ass,1,'No',13);
% Dis1=[0,0,-2.5,0,0,0];
% Ass=SetDisplacement(Ass,1,Dis1);
% Ass=AddDisplacement(Ass,2,'No',14);
% Dis2=[0,0,2.5,0,0,0];
% Ass=SetDisplacement(Ass,2,Dis2);

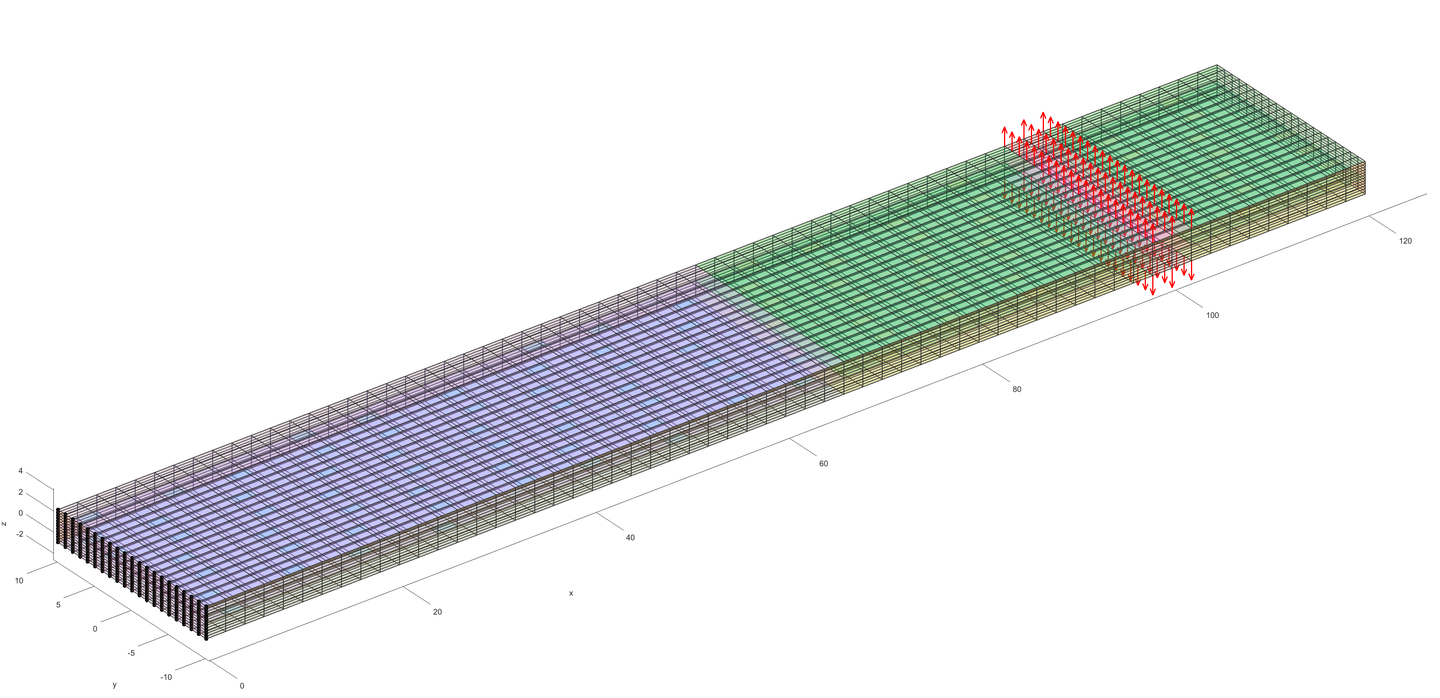

Plot(Ass,'boundary',1,...
  'load',1,'load_scale',1,'face_alpha',0.2,'dis',1);
%% Define Contacts
Ass=AddCon(Ass,1,12);
Ass=AddTar(Ass,1,2,11);
Ass=SetConMaterial(Ass,1,2);
Ass=SetConET(Ass,1,3);
Ass=SetTarET(Ass,1,2);
PlotCon(Ass,1);
% Static analysis
opt.ANTYPE=0;
opt.NSUBST=40;
opt.AUTOTS="OFF";
opt.NLGEOM=1;
opt.ARCLEN=1;
opt.OUTRES=["ALL","ALL"];
Ass=AddSolu(Ass,opt);
% Add sensor
% Ass=AddSensor(Ass,'U',1);
% Output to ANSYS
ANSYS_Output(Ass);
if Cal
  ANSYSSolve(Ass);
  PlotSensor(Ass,1);
end

参考文献

[1] ANSYS结构分析单元与应用

本网站基于Hexo 3-Hexz主题生成。如需转载请标注来源,如有错误请批评指正,欢迎邮件至 392176462@qq.com

©2025 FE-Berserker

Built with Hexo and 3-hexo theme
